| Spindle Type: | BT | Chucking Range: | 2~20mm |
|---|---|---|---|
| Material: | 20Crnimo | Hardness: | HRC58~60 |
| Application: | Hole Processing And Milling | Product Name: | Quick-tuning Concentric Tool Handle |
| Highlight: | milling machine cutting tools,cnc milling cutters |
||

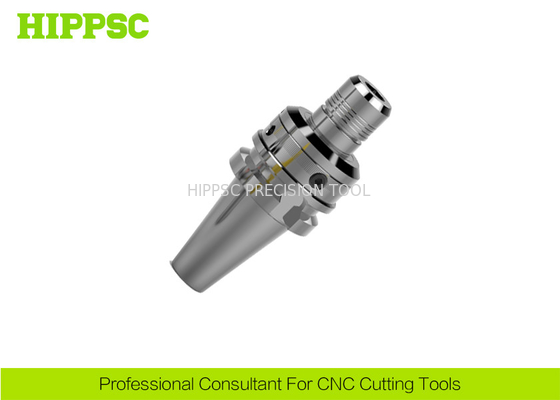

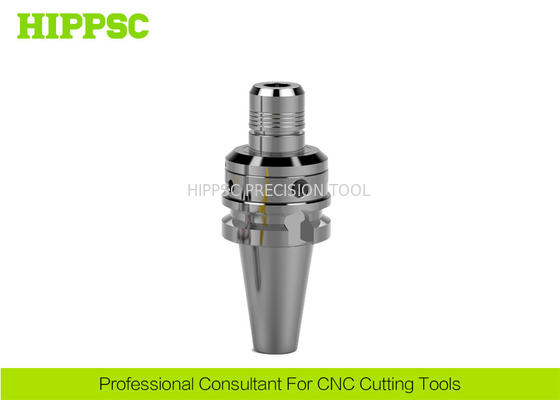

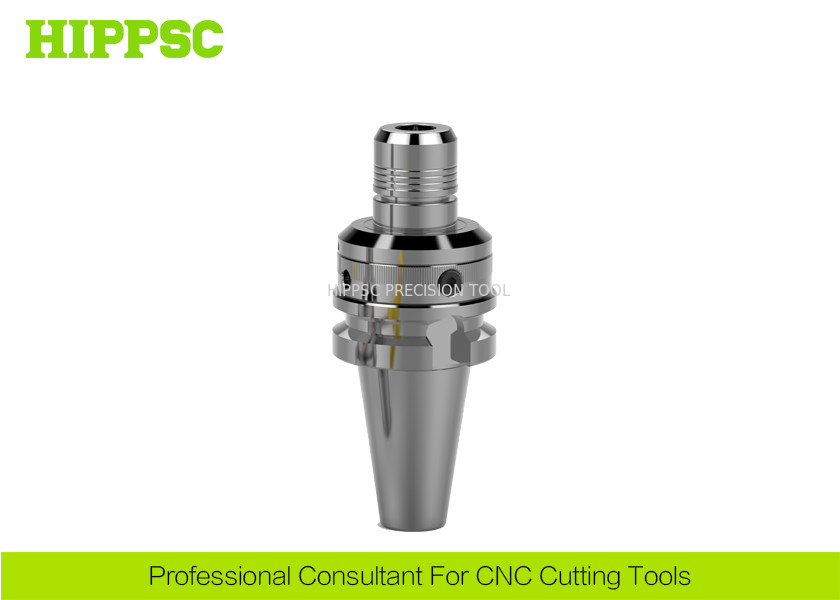

High Degree Finish CNC Cutting Tools Quick Tuning Concentric Handle BT Spinder
Ⅰ. Features And Advantages
1. When drilling reaming holes, it provides the accuracy and stability of processing holes,
which can replace and surpass the hydraulic tool holder.
2. Reduce the vibration of cutting edge and improve the smoothness and quality of cutting surface
3. The life of the tool holder can be prolonged by 3 to 5 times by using the fast-tuning concentric tool
holder to correct the beating less than 0.003.
4. The adjustment scope is wide, simple, rapid and accurate
5. Easy handling and operation - no need peripheral equipment- Change tools within seconds
6.Accuracy and stability are much higher than others.
Ⅱ. Technical Parametes
Ⅲ. Product Introduction
| Type | Chucking Range | D1 | D2 | L1 | L2 | L3 | G | FIG | Collet | Spanner |
| BT30-ZPHGER11-90 | 1-7 | 16.5 | 48.5 | 30 | 62 | 90 | M8*1.0 | 1 | ER11 | FGH16 |
| BT30-ZPHGER16-90 | 2-10 | 30.5 | 48.5 | 30 | 62 | 90 | M11*1.0 | 1 | ER16 | FGH30 |
| BT30-ZPHGER20-105 | 2-12 | 32.5 | 59.5 | 45 | 77 | 105 | M14*1.0 | 1 | ER20 | FGH32 |
| BT30-ZPHGER25-105 | 2-16 | 40.5 | 59.5 | 45 | 77 | 105 | M18*1.5 | 1 | ER25 | FGH40 |
| BT40-ZPHGER11-90 | 1-7 | 16.5 | 48.5 | 37 | 63 | 90 | M8*1.0 | 2 | ER11 | FGH16 |
| BT40-ZPHGER11-150 | 1-7 | 16.5 | 48.5 | 97 | 123 | 150 | M8*1.0 | 2 | ER11 | FGH16 |
| BT40-ZPHGER16-90 | 2-10 | 30.5 | 48.5 | 37 | 63 | 90 | M11*1.0 | 2 | ER16 | FGH30 |
| BT40-ZPHGER16-150 | 2-10 | 30.5 | 48.5 | 97 | 123 | 150 | M11*1.0 | 2 | ER16 | FGH30 |
| BT40-ZPHGER20-90 | 2-12 | 32.5 | 59.5 | 37 | 63 | 90 | M14*1.0 | 2 | ER20 | FGH32 |
| BT40-ZPHGER20-150 | 2-12 | 32.5 | 59.5 | 97 | 123 | 150 | M14*1.0 | 2 | ER20 | FGH32 |
| BT40-ZPHGER25-90 | 2-16 | 40.5 | 59.5 | 37 | 63 | 90 | M18*1.5 | 2 | ER25 | FGH40 |
| BT40-ZPHGER25-150 | 2-16 | 40.5 | 59.5 | 97 | 123 | 150 | M18*1.5 | 2 | ER25 | FGH40 |
| BT40-ZPHGER32-120 | 2-20 | 50.5 | 66.5 | 54 | 87 | 120 | M22*1.5 | 1 | ER32 | FGH50 |
| BT40-ZPHGER32-150 | 2-20 | 50.5 | 66.5 | 84 | 117 | 150 | M22*1.5 | 1 | ER32 | FGH50 |
| BT50-ZPHGER16-105 | 2-10 | 30.5 | 48.5 | 41 | 67 | 105 | M11*1.0 | 2 | ER16 | FGH30 |
| BT50-ZPHGER16-165 | 2-10 | 30.5 | 48.5 | 101 | 127 | 165 | M11*1.0 | 2 | ER16 | FGH30 |
| BT50-ZPHGER20-105 | 2-12 | 32.5 | 59.5 | 41 | 67 | 105 | M14*1.0 | 2 | ER20 | FGH32 |
| BT50-ZPHGER20-165 | 2-12 | 32.5 | 59.5 | 101 | 127 | 165 | M14*1.0 | 2 | ER20 | FGH32 |
| BT50-ZPHGER25-105 | 2-16 | 40.5 | 59.5 | 41 | 67 | 105 | M18*1.5 | 2 | ER25 | FGH40 |
| BT50-ZPHGER25-165 | 2-16 | 40.5 | 59.5 | 101 | 127 | 165 | M18*1.5 | 2 | ER25 | FGH40 |
| BT50-ZPHGER32-135 | 2-20 | 50.5 | 66.5 | 41 | 67 | 135 | M22*1.5 | 2 | ER32 | FGH50 |
| BT50-ZPHGER32-165 | 2-20 | 50.5 | 66.5 | 101 | 127 | 165 | M22*1.5 | 2 | ER32 | FGH50 |
