Silver White Threading Tool Holder HSK-A-M Spindle Type For Electronics Automotive

China Silver White Threading Tool Holder HSK-A-M Spindle Type For Electronics Automotive supplier
Silver White Threading Tool Holder HSK-A-M Spindle Type For Electronics Automotive supplier Silver White Threading Tool Holder HSK-A-M Spindle Type For Electronics Automotive supplier

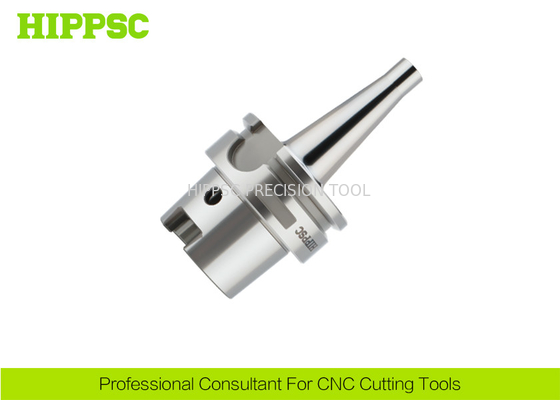

Large Image :  Silver White Threading Tool Holder HSK-A-M Spindle Type For Electronics Automotive

Product Details:

Place of Origin: Dongguan, China
Brand Name: HIPPSC
Certification: ISO9001
Model Number: BT40-HM6-140

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiable (Price term: EXW, FOB, CFR, CIF )
Packaging Details: Plastic Box with Inner PE Bag In Carton
Delivery Time: 2~30 Work days
Payment Terms: T/T, Western Union, Paypal, L/C
Supply Ability: 20000 pcs Per Month
Contact Now
Detailed Product Description
Color: Silver White Material: 20CrNiMo
Spindle Type: HSK-A-M Product Name: Threaded Chuck
Cutting Type: End Milling, Reaming, Drilling Packing: PE Bag Plastic Box And Carton Box.
Highlight:

CNC Cutting Tool Holder

,

cnc mill tool holders

Collet Tool Holder Threading Tool Holder For Electronics Automotive Applied




Ⅰ​. Features

  1. Taper design
  2. Excellent seismic resistance
  3. Rigidity is very high, cutting speed is fast.
  4. Lock tools through screw tooth, easy and high efficient.
  5. Wide applications, fits for most kinds of quick change tools.
  6. Threaded cutter head and the tungsten steel cutting tool are both suitable.

Ⅱ. Technical Parametes ​


Product Name

Threading Tool Holder

Spindle Type

 HSK-A-M

Screw hole size

M12

Beat accuracy

3μm

Processing Type

Endmilling, Reaming, Drilling, Finishing

Product Material

20CrNiMo

Hardness

HRC58~60°
Taper tolerance AT3


Ⅲ. Product Show

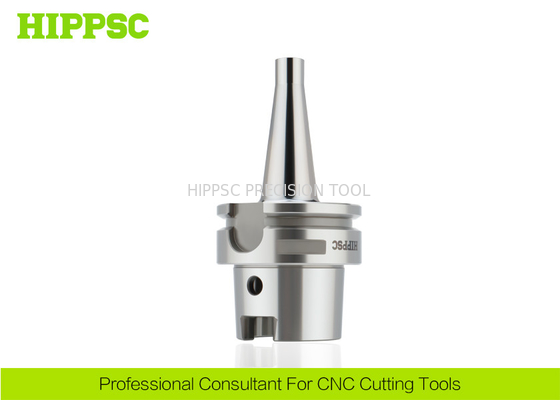

Silver White Threading Tool Holder HSK-A-M Spindle Type For Electronics Automotive



Available Standard Items




Cat. No		 D1 D2 D3 L1 L2MAX L2MIN M
BT40-HM6-140 6 25 28 140 37.5 27.5 M5×0.8
BT40-HM8-140 8 27 30 140 37.5 27.5 M6×1.0
BT40-HM10-140 10 29 32 140 42.5 37.5 M8×1.0
BT40-HM12-140 12 31 34 140 47.5 37.5 M8×1.0
BT40-HM14-140 14 33 36 140 47.5 37.5 M8×1.0
BT40-HM16-140 16 35 38 140 52.5 42.5 M10*1.0
BT40-HM18-140 18 38 41 140 52.5 42.5 M10*1.0
BT40-HM20-140 20 40 43 140 52.5 42.5 M10*1.0
BT40-HM25-140 25 57 - 140 61 51 M16*1.0
BT40-HM32-140 32 63 - 140 65 55 M16*1.0
BT50-HM6-140 6 25 28 140 37.5 27.5 M5×0.8
BT50-HM8-140 8 27 30 140 37.5 27.5 M6×1.0
BT50-HM10-140 10 29 32 140 42.5 37.5 M8×1.0
BT50-HM12-140 12 31 34 140 47.5 37.5 M8×1.0
BT50-HM14-140 14 33 36 140 47.5 37.5 M8×1.0
BT50-HM16-140 16 35 38 140 52.5 42.5 M10*1.0
BT50-HM18-140 18 38 41 140 52.5 42.5 M10*1.0
BT50-HM20-140 20 40 43 140 52.5 42.5 M10*1.0
BT50-HM25-150 25 57 - 150 61 51 M16×1.0
BT50-HM32-150 32 63 - 150 65 55 M16×1.1
HSK100A-M08-75 75 12 20 15.4 8.5 21 M8
HSK100A-M08-90 90 12 20 15.4 8.5 23 M8
HSK100A-M08-110 110 12 20 15.4 8.5 27 M8
HSK100A-M10-75 75 12 20 19 10.5 23 M10
HSK100A-M10-90 90 12 20 19 10.5 25 M10
HSK100A-M10-110 110 12 20 19 10.5 28 M10
HSK100A-M12-75 75 12 20 24 12.5 28 M12
HSK100A-M12-90 90 12 20 24 12.5 30 M12
HSK100A-M12-110 110 12 20 24 12.5 33 M12
HSK100A-M12-135 135 12 20 24 12.5 37 M12
HSK100A-M16-75 75 12 20 29 17 33 M16
HSK100A-M16-90 90 12 20 29 17 35 M16
HSK100A-M16-110 110 12 20 29 17 38 M16
HSK100A-M16-135 135 12 20 29 17 42 M16





Ⅳ. Products Overvies

  1. Hydraulic Expansion Chucks.
  2. Quick Change CNC Tool Bits.
  3. CNC Indexable Cutting Inserts.
  4. Torque/Round/Circle Spanner Wrenche/Keys.
  5. Threaded/Screw-on/Thread Screw Tool Holders.
  6. Shrink-Fit/Heat Shrinking/Heat Expansion Toolholder.
  7. Back Lock/Side Lock and Mirror Finishing​ Toolholders.
  8. ER/GER/SK/GER/Hydraulic/Pull type/Torque tap Collet.


Ⅴ​. Transportation​

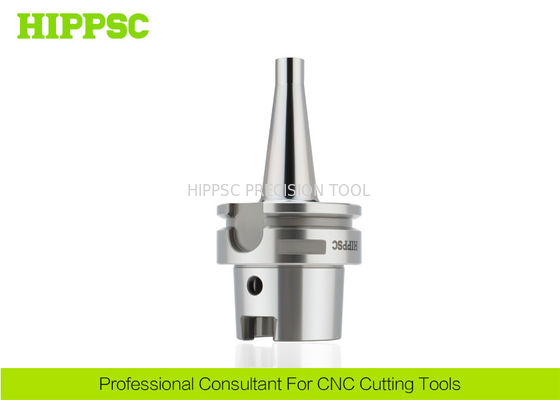

Silver White Threading Tool Holder HSK-A-M Spindle Type For Electronics Automotive


Ⅵ. Packing

PE Bag.
Plastic Box.
Carton Box.

Other Materials


Slushing oil.
Adhesive Tape.
Packing Straps.

Ⅶ. Warehouse


  1. Arrange Delivery  Within 2 days at soonest after orders are received.
  2. Strict and Careful Inspection Before Delivering Goods to Our customers .
  3. We Use Advanced Instruments To Exam Accuracy And Technical Data.
  4. For all standard items, there will be always enough stock for in-time delivery. For some
    urgent order,  we will do our best to achieve it.

Ⅷ. Warranty


  • High Precision Advanced Equipments and Technology.
  • Custom Made Service,  Professional suggestions.
  • Warranty 12 Months, Free Repairing Service.
  • Best After Sales Service.
