Product Details:
Payment & Shipping Terms:
|
| Inventory: | In Stock | Material: | Tungsten Steel |
|---|---|---|---|
| Product Name: | EXGRIP Milling Cutter | Feature: | Anti-interference Design |
| Packing: | PE Bag. Plastic Box Carton Box. | Application: | Widely Used In Die, Auto Parts, Aerospace And Other Industries |
| Highlight: | milling machine cutting tools,cnc milling cutters |
||

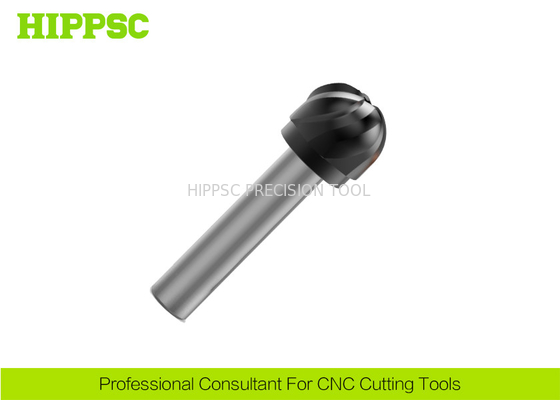

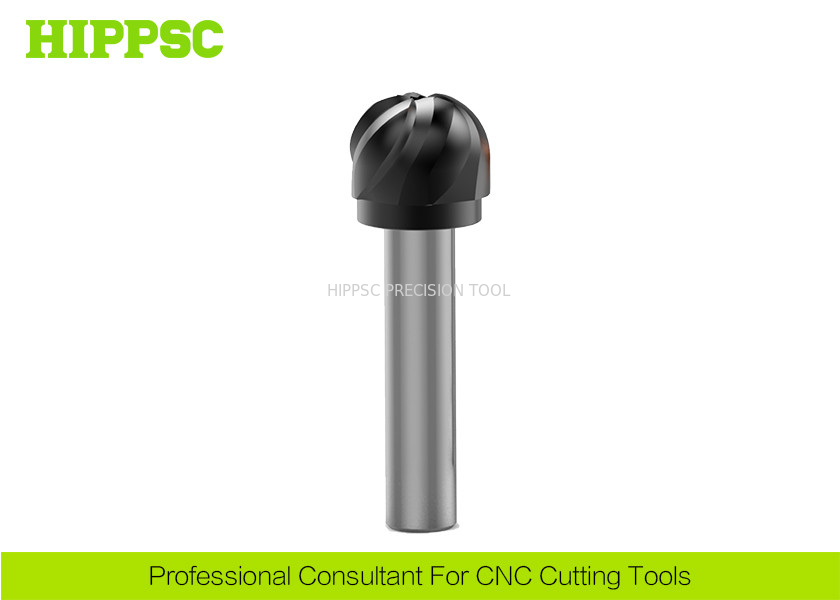

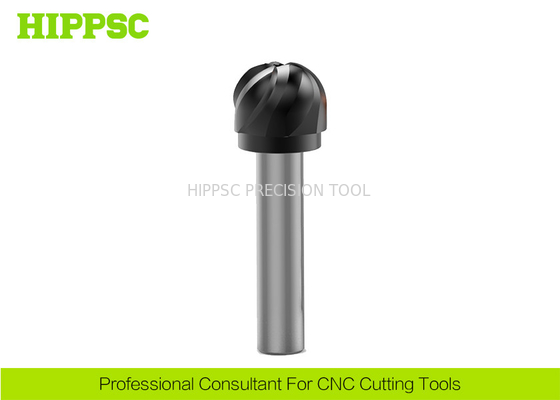

High Precision Durable CNC Millinmg Cutter For Automatic Machine
Ⅰ. Features And Advantages
1. Thermal expansion clamping
2. Anti-interference design milling cutter
3. Suitable for deep cavity processing
4. Widely used in die, auto parts, aerospace and other industries
5. High precision, many specifications, high quality, sufficient stock
6. Suitable for processing a variety of materials to solve processing problems
Ⅱ. Technical Parametes
|
Product Name |
EXGRIP Milling cutter |
|
Spindle Type |
EXBK |
|
Processing Type |
Deep Hole Finishing Machining. |
|
Product Material |
Tungsten Steel |
Ⅲ. Product Introduction
Standard Items
| Type | D | R | D1 | L | L1 | L2 | Z |
| EXBK2-04020-04 | 4 | 2 | 2.9 | 22.5 | 6.5 | 4 | 2 |
| EXBK2-05025-04 | 5 | 2.5 | 2.9 | 22.5 | 6.5 | 4 | 2 |
| EXBK2-06030-04 | 6 | 3 | 2.9 | 22.5 | 6.5 | 4 | 2 |
| EXBK3-06030-04 | 6 | 3 | 2.9 | 22.5 | 6.5 | 4 | 3 |
| EXBK2-08040-05 | 8 | 4 | 5.9 | 32.5 | 7.5 | 5 | 2 |
| EXBK3-08040-05 | 8 | 4 | 5.9 | 32.5 | 7.5 | 5 | 3 |
| EXBK5-08040-05 | 8 | 4 | 5.9 | 32.5 | 7.5 | 5 | 5 |
| EXBK2-10050-06 | 10 | 5 | 5.9 | 33.5 | 8.5 | 6 | 2 |
| EXBK3-10050-06 | 10 | 5 | 5.9 | 33.5 | 8.5 | 6 | 3 |
| EXBK5-10050-06 | 10 | 5 | 5.9 | 33.5 | 8.5 | 6 | 5 |
| EXBK2-12060-07 | 12 | 6 | 5.9 | 34.5 | 9.5 | 7 | 2 |
| EXBK3-12060-07 | 12 | 6 | 5.9 | 34.5 | 9.5 | 7 | 3 |
| EXBK5-12060-07 | 12 | 6 | 5.9 | 34.5 | 9.5 | 7 | 5 |
| EXBK2-16080-12 | 16 | 8 | 8 | 50 | 15 | 12 | 2 |
| EXBK5-16080-12 | 16 | 8 | 8 | 50 | 15 | 12 | 5 |
| EXBK7-16080-12 | 16 | 8 | 8 | 50 | 15 | 12 | 7 |
| EXBK3-200100-16 | 20 | 10 | 12 | 54 | 19 | 16 | 3 |
| EXBK3-250125-16 | 25 | 12.5 | 16 | 58 | 23 | 20 | 3 |
Ⅳ. Overview for HIPPSC Products
