Product Details:
Payment & Shipping Terms:
|
| OEM&ODM: | Acceptable | Color: | Siliver White |
|---|---|---|---|
| Material: | Tungsten Steel | Machine Type: | CNC Milling Machine |
| Feature: | Anti-interference Design Milling Cutter | Suitable: | Suitable For Processing A Variety Of Materials To Solve Processing Problems |
| Highlight: | milling machine cutting tools,cnc milling cutters |
||

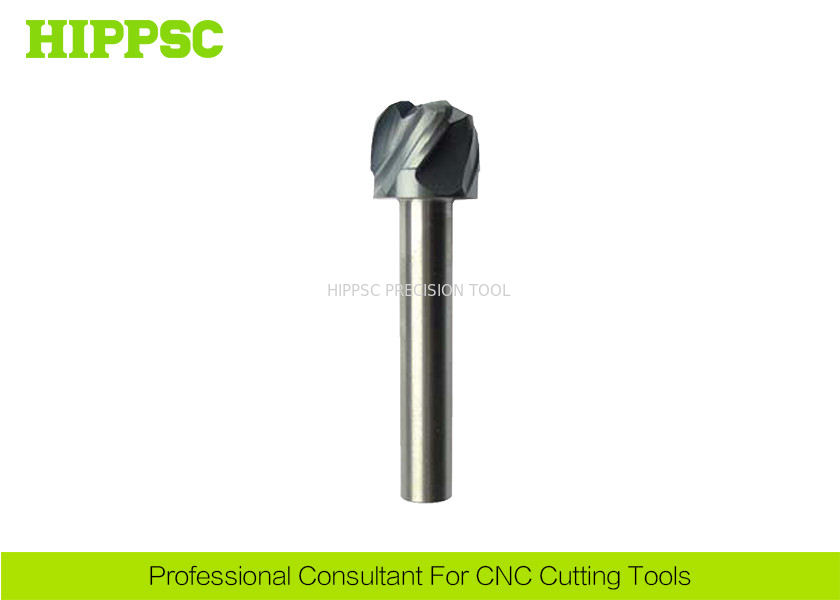

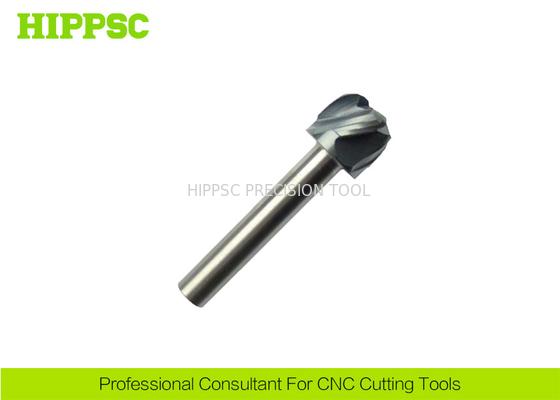

Electronics / Automotive EXGRIP Milling cutter for Five Axis Machining Center
Ⅰ. Features And Advantages
| 1 Made from tungsten steel. |
| 2 Thermal expansion clamping |
| 3 High rigidity, good shock resistance. |
| 4 Suitable for deep cavity processing |
| 5 Super precision even for deep hole machining. |
| 6 Widely used in die, auto parts, aerospace and other industries |
Ⅱ. Technical Parametes
|
Product Name |
EXGRIP Milling cutter |
|
Spindle Type |
EXRK |
|
Clamping |
Thermal expansion clamping |
|
Processing Type |
Milling Process |
|
Product Material |
Tungsten Steel |
Ⅲ. Product Introduction
| Type | D | R | D1 | L | L1 | L2 | Z |
| EXRK2-04010-04 | 4 | 1 | 2.9 | 22.5 | 6.5 | 4 | 2 |
| EXRK2-05010-04 | 5 | 1 | 2.9 | 22.5 | 6.5 | 4 | 2 |
| EXRK2-06005-04 | 6 | 0.5 | 2.9 | 22.5 | 6.5 | 4 | 2 |
| EXRK2-06010-04 | 6 | 1 | 2.9 | 22.5 | 6.5 | 4 | 2 |
| EXRK3-06020-04 | 6 | 2 | 2.9 | 22.5 | 6.5 | 4 | 3 |
| EXRK3-08005-05 | 8 | 0.5 | 5.9 | 32.5 | 7.5 | 5 | 3 |
| EXRK2-08010-05 | 8 | 1 | 5.9 | 32.5 | 7.5 | 5 | 2 |
| EXRK5-08020-05 | 8 | 2 | 5.9 | 32.5 | 7.5 | 5 | 5 |
| EXRK2-08030-05 | 8 | 3 | 5.9 | 32.5 | 7.5 | 5 | 3 |
| EXRK3-10005-06 | 10 | 0.5 | 5.9 | 33.5 | 8.5 | 6 | 3 |
| EXRK5-10010-06 | 10 | 1 | 5.9 | 33.5 | 8.5 | 6 | 5 |
| EXRK2-10020-06 | 10 | 2 | 5.9 | 33.5 | 8.5 | 6 | 2 |
| EXRK5-10030-06 | 10 | 3 | 5.9 | 33.5 | 8.5 | 6 | 5 |
| EXRK3-10040-06 | 10 | 4 | 5.9 | 33.5 | 8.5 | 6 | 3 |
| EXRK5-12005-07 | 12 | 0.5 | 5.9 | 34.5 | 9.5 | 7 | 5 |
| EXRK2-12010-07 | 12 | 1 | 5.9 | 34.5 | 9.5 | 7 | 2 |
| EXRK3-12030-07 | 12 | 3 | 5.9 | 34.5 | 9.5 | 7 | 3 |
| EXRK5-12050-07 | 12 | 5 | 5.9 | 34.5 | 9.5 | 7 | 5 |
| EXRK3-16040-12 | 16 | 4 | 8 | 50 | 15 | 12 | 3 |
| EXRK5-16050-12 | 16 | 5 | 8 | 50 | 15 | 12 | 5 |
| EXRK5-20050-16 | 20 | 5 | 12 | 54 | 19 | 16 | 5 |
| EXRK9-20050-16 | 20 | 5 | 12 | 54 | 19 | 16 | 9 |
| EXRK5-25050-20 | 25 | 5 | 16 | 58 | 23 | 20 | 5 |
| EXRK9-25050-20 | 25 | 5 | 16 | 58 | 23 | 20 | 9 |
