Product Details:
Payment & Shipping Terms:
|
| Inventory: | In Stock | Spindle Type: | HSK |
|---|---|---|---|
| Origion: | Dongguan, China | Productr Name: | Face Milling Chuck |
| Application: | Suitable For Milling | Advantage: | Round Axle And Bilateral Clamp Positioning |
| Highlight: | cnc lathe cutting tools,cnc milling cutters |
||

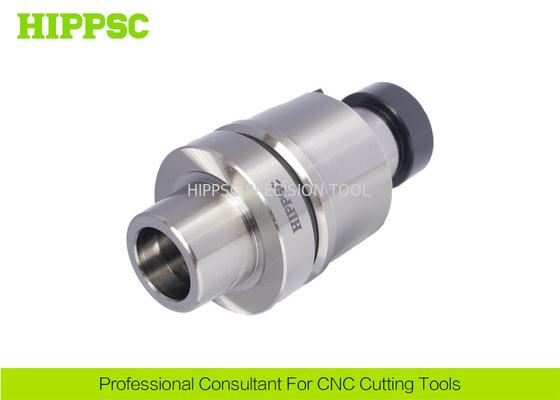

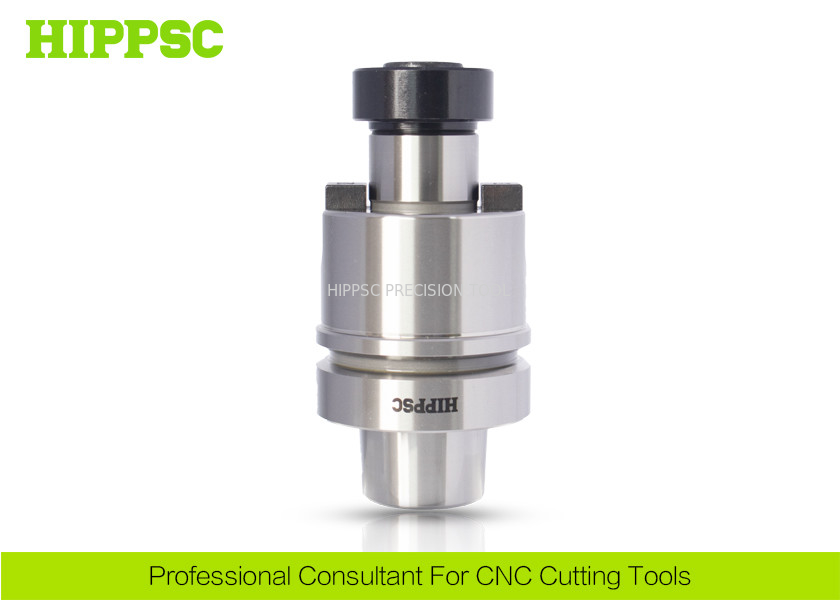

20Crnimo Material cutting tool holder Face Milling Chuck High Precision
Ⅰ. Features
1. Super Repeat Accuacy.
2. Come out high surface quality.
3. Round axle and bilateral clamp positioning,
4. Fine grinding of inner and outer circles
5. Easy to operate, fast and convenient clamping
6. High precision, many specifications, high quality, sufficient stock
Ⅱ. Technical Parametes
|
Product Name |
Face Milling Chuck |
|
Type |
HSK-FMB |
|
Runout |
0.003mm |
|
Hardess |
RHC58~60 |
|
Product Material |
20Crnimo |
|
Application |
Milling and drilling cutter |
Ⅲ. Product Show
Available Standard Items
Cat. No |
D1 | D2 | D3 | L1 | L2 | M | K1 | K2 |
| HSK63F-FMB22-60 | 22 | 26 | 48 | 60 | 18 | M10*1.5 | 4.8 | 10 |
| HSK63F-FMB22-90 | 22 | 26 | 48 | 90 | 18 | M10*1.5 | 4.8 | 10 |
| HSK63F-FMB27-60 | 27 | 31.5 | 58 | 60 | 20 | M12*1.75 | 5.8 | 12 |
Ⅳ. Products Overview
Slushing oil.
Adhesive Tape.
Packing Straps.
Ⅶ. Warehouse
Ⅷ. Warranty
