| Spindle Type: | SK | Chucking Range: | 2~20mm |
|---|---|---|---|
| Taper: | 7:24 | Color: | Silver White |
| Advantage: | The Life Of The Tool Holder Can Be Prolonged By 3 To 5 Times | Transport: | By Sea; By Air; By Train/Truck. TNT, EMS, DHL, UPS, FedEx. |
| Highlight: | milling machine cutting tools,cnc lathe cutting tools |
||

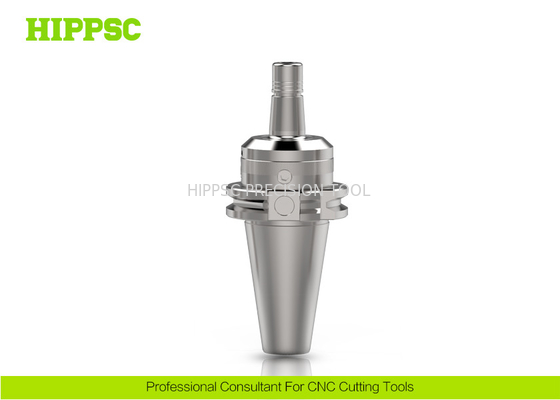

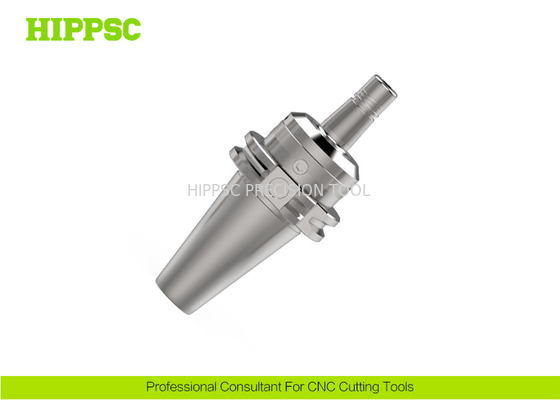

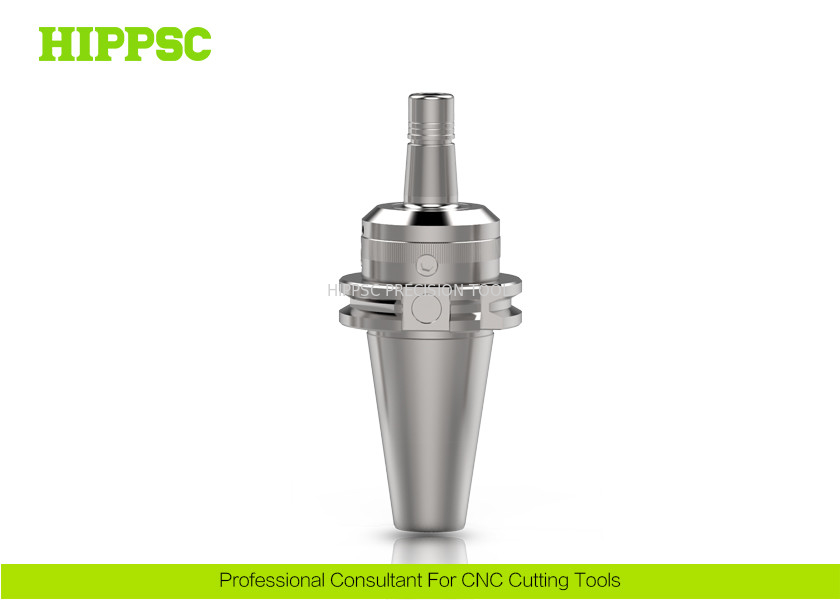

CNC Milling Cutters Quick Tuning Concentric Tool Handle for Millling
Ⅰ. Features And Advantages
1. When drilling reaming holes, it provides the accuracy and stability of processing holes,
which can replace and surpass the hydraulic tool holder.
2. Reduce the vibration of cutting edge and improve the smoothness and quality of cutting surface
3. The life of the tool holder can be prolonged by 3 to 5 times by using the fast-tuning concentric tool
holder to correct the beating less than 0.003.
4. The adjustment scope is wide, simple, rapid and accurate
Ⅱ. Technical Parametes
Ⅲ. Product Introduction
| Type | D | D1 | D2 | L1 | L2 | L3 | G | FIG. | Copllet | Spanner |
| SK40-ZPHGER11-120 | 1-7 | 16.5 | 48.5 | 51 | 85 | 120 | M8*1.0 | 1 | ER11 | FGH16 |
| SK40-ZPHGER11-150 | 1-7 | 16.5 | 48.5 | 81 | 115 | 150 | M8*1.0 | 1 | ER11 | FGH16 |
| SK40-ZPHGER16-120 | 2-10 | 30.5 | 48.5 | 51 | 85 | 120 | M11*1.0 | 1 | ER16 | FGH30 |
| SK40-ZPHGER16-150 | 2-10 | 30.5 | 48.5 | 81 | 115 | 150 | M11*1.0 | 1 | ER16 | FGH30 |
| SK40-ZPHGER20-120 | 2-12 | 32.5 | 59.5 | 51 | 85 | 120 | M14*1.0 | 1 | ER20 | FGH32 |
| SK40-ZPHGER20-150 | 2-12 | 32.5 | 59.5 | 81 | 115 | 150 | M14*1.0 | 1 | ER20 | FGH32 |
| SK40-ZPHGER25-120 | 2-16 | 40.5 | 59.5 | 51 | 85 | 120 | M18*1.5 | 1 | ER25 | FGH40 |
| SK40-ZPHGER25-150 | 2-16 | 40.5 | 59.5 | 81 | 115 | 150 | M18*1.5 | 1 | ER25 | FGH40 |
| SK40-ZPHGER32-120 | 2-20 | 50.5 | 66.5 | 51 | 85 | 120 | M22*1.5 | 1 | ER32 | FGH50 |
| SK40-ZPHGER32-150 | 2-20 | 50.5 | 66.5 | 81 | 115 | 150 | M22*1.5 | 1 | ER32 | FGH50 |
| SK50-ZPHGER16-105 | 2-10 | 30.5 | 48.5 | 86 | 60 | 105 | M11*1.0 | 2 | ER16 | FGH30 |
| SK50-ZPHGER16-165 | 2-10 | 30.5 | 48.5 | 146 | 120 | 165 | M11*1.0 | 2 | ER16 | FGH30 |
| SK50-ZPHGER20-105 | 2-12 | 32.5 | 59.5 | 86 | 60 | 105 | M14*1.0 | 2 | ER20 | FGH32 |
| SK50-ZPHGER20-165 | 2-12 | 32.5 | 59.5 | 146 | 120 | 165 | M14*1.0 | 2 | ER20 | FGH32 |
| SK50-ZPHGER25-105 | 2-16 | 40.5 | 59.5 | 86 | 60 | 105 | M18*1.5 | 2 | ER25 | FGH40 |
| SK50-ZPHGER25-165 | 2-16 | 40.5 | 59.5 | 146 | 120 | 165 | M18*1.5 | 2 | ER25 | FGH40 |
| SK50-ZPHGER32-120 | 2-20 | 50.5 | 66.5 | 86 | 60 | 120 | M22*1.5 | 2 | ER32 | FGH50 |
| SK50-ZPHGER32-165 | 2-20 | 50.5 | 66.5 | 146 | 120 | 165 | M22*1.5 | 2 | ER32 | FGH50 |
