High Stability CNC Lathe Cutting Tools Slim Type Collet Chuck For Deep Hole Machining

China High Stability CNC Lathe Cutting Tools Slim Type Collet Chuck For Deep Hole Machining supplier

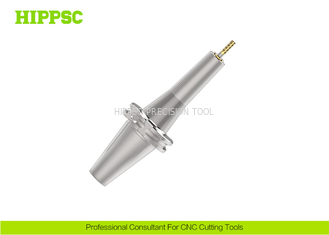

Large Image :  High Stability CNC Lathe Cutting Tools Slim Type Collet Chuck For Deep Hole Machining

Product Details:

Place of Origin: Dongguan, China
Brand Name: HIPPSC
Certification: ISO9001
Model Number: SK40-MX06-90

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiable (Price term: EXW, FOB, CFR, CIF )
Packaging Details: Plastic Box with Inner PE Bag In Carton
Delivery Time: 2~30 Work days
Payment Terms: T/T, Western Union, Paypal, L/C
Supply Ability: 2000pcs Per Month
Contact Now
Detailed Product Description
Spindle Type: SK-MX Color: Silver White
Hardness: HRC58~60 Product Name: Slim Type Collet Chuck
Cutting: EndMilling, Reaming, Drilling Usage: Suitable For Hole Processing And Milling
Highlight:

cnc lathe cutting tools

,

cnc milling cutters

CNC Lathe Cutting Tools Slim Type Collet Chuck For Deep Hole Maching




Ⅰ​. Features

  1. No nut back-pull chuck design
  2. Better surface quality and runout
  3. Interference-proof, strong rigidity, high stability
  4. Back-pull design, simple locking, fast and convenient operation
  5. High precision, many specifications, high quality, sufficient stock
  6. Built-in turbine worm, smooth rotation, suitable for deep cavity processing

Ⅱ. Technical Parametes ​


Product Name

 Slim Type Collet Chuck

Spindle Type

 SK

Screw hole size

M16

Beat accuracy

<3μm

Processing Type

Endmilling, Reaming, Drilling, Finishing

Product Material

 20Crnimo

Hardness

HRC58~60°
Taper tolerance AT3


Ⅲ. Product Information



High Stability CNC Lathe Cutting Tools Slim Type Collet Chuck For Deep Hole Machining




Model No
Capacity		 d1 d2 d3 L A FIG
Screw
Torque
SK40-MX06-90 2.0-6.0 14 19 25 90 47 1 M5*70 5Nm
SK40-MX06-120 2.0-6.0 14 20 35 120 62 1 M5*100 5Nm
SK40-MX06-150 2.0-6.0 14 22 44 150 78 1 M5*130 5Nm
SK40-MX06-200 2.0-6.0 14 44 / 200 170 1 M5*180 5Nm
SK40-MX08-90 2.0-10.0 22 28 33 90 55 1 M6*60 7Nm
SK40-MX08-120 2.0-10.0 22 30 41 120 71 1 M6*90 7Nm
SK40-MX08-150 2.0-10.0 22 32 56 150 90 1 M6*120 7Nm
SK40-MX08-200 2.0-10.0 22 37 54 200 140 1 M6*170 7Nm
SK40-MX12-90 3.0-12.0 34 / / 90 58 2 M10*30 15Nm
SK40-MX12-120 3.0-12.0 34 43.5 / 120 90 2 M10*60 15Nm
SK40-MX12-150 3.0-12.0 34 46.5 / 150 118 1 M10*90 15Nm
SK40-MX12-200 3.0-12.0 34 56 / 200 171 1 M10*140 15Nm
SK50-MX06-120 2.0-6.0 14 19.9 32 120 58 1 M5*120 5Nm
SK50-MX06-150 2.0-6.0 14 20.8 44 150 67 1 M5*150 5Nm
SK50-MX06-200 2.0-6.0 14 24.5 55 200 102 1 M5*150 5Nm
SK50-MX06-250 2.0-6.0 14 49.2 / 250 202 1 M5*200 5Nm
SK50-MX06-300 2.0-6.0 14 58.6 / 300 255 1 M5*250 5Nm
SK50-MX08-120 2.0-10.0 22 28.9 36 120 66 1 M6*120 7Nm
SK50-MX08-150 2.0-10.0 22 30 48 150 76 1 M6*150 7Nm
SK50-MX08-200 2.0-10.0 22 32.5 64 200 100 1 M6*150 7Nm
SK50-MX08-250 2.0-10.0 22 57.2 / 250 201 / M6*200 7Nm
SK50-MX08-300 2.0-10.0 22 67 / 300 256 / M6*250 7Nm
SK50-MX12-120 3.0-12.0 34 / / 120 77 2 M10×90 15Nm
SK50-MX12-150 3.0-12.0 34 44.8 / 150 103 / M10×120 15Nm
SK50-MX12-200 3.0-12.0 34 50.2 / 200 155 / M10×170 15Nm
SK50-MX12-250 3.0-12.0 34 55 / 250 201 / M10*200 15Nm
SK50-MX12-300 3.0-12.0 34 61 / 300 251 / M10*250 15Nm


.Ⅳ. Products Overview

  1. BT40 Threading Tool Holder.
  2. BT,BBT,SK,CAT,MAT,APU,NT,NBT,ISO,ST.
  3. Hydraulic Expansion Tool holder of BT/SK/HSK.
  4. Threaded/Screw-on/Thread Screw Tool Holders.
  5. ​Edge finder/Tool Holder Tightening Fixture/Table.
  6. Back Lock/Side Lock and Mirror Finishing​ Toolholders.
  7. Heat Shrink-Fit/Shrinking/Heat Expansion Tool Holders.
Ⅴ​. Shipment​

By Sea; By Air; By Train.


TNT, EMS, DHL, UPS, FedEx.

Ⅵ. Packing

PE Bag.
Plastic Box.
Carton Box.


Slushing oil.
Adhesive Tape.
Packing Straps.

Ⅶ. Warehouse

  1. Arrange Delivery  Within 2 days at soonest Afterat order and payment confirmed.
  2. Strict and Careful Inspection Before Delivering Goods to Our customers .
  3. Use Gauges For Examing Accuracy and Technical Factors.
  4. Super less error on delivering Goods and Items of Order.

Ⅷ. Warranty

  • High Accuracy Measuring Instruments and Technology.
  • Custom Made Service of Products and Packing.
  • Customer can find any products relating to CNC Cutting here.
  • Warranty 12 Months, Free Repairing Service.
  • We are always customers and service oriented.
