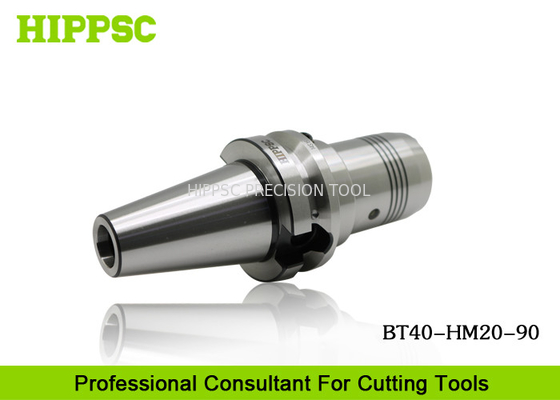

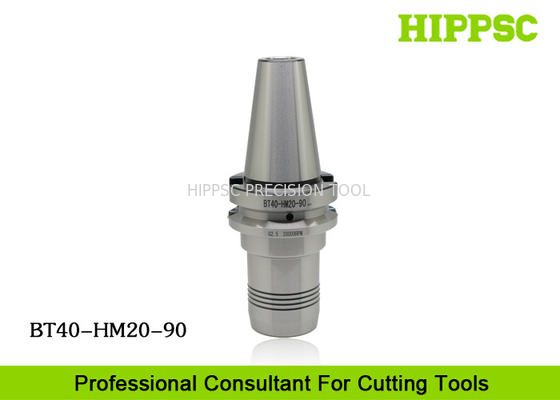

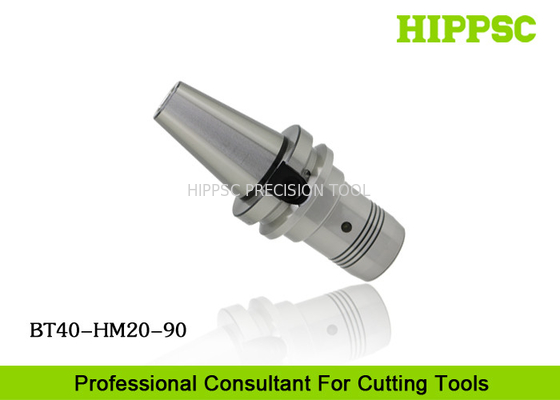

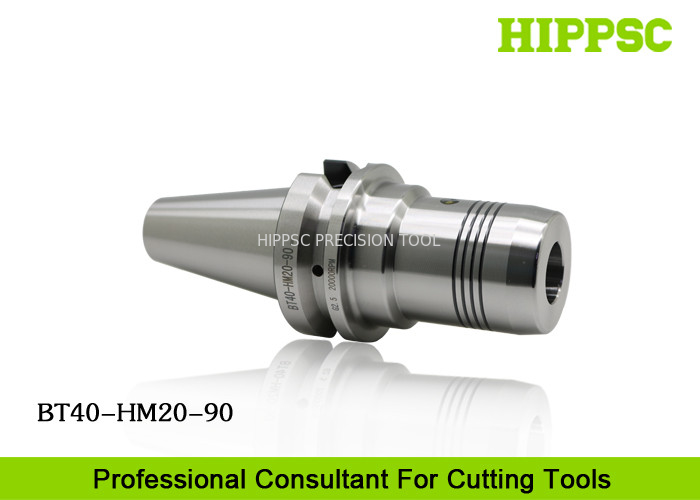

MAS BT40 Machining Hydro Grip Tool Holder Precision Finishing Grooving

Large Image : MAS BT40 Machining Hydro Grip Tool Holder Precision Finishing Grooving

Product Details:

Place of Origin:	Dongguan, China
Brand Name:	HIPPSC
Certification:	ISO9001
Model Number:	BT40-HM20-90

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	Negotiable (Price term: EXW, FOB, CFR, CIF )
Packaging Details:	Plastic Box with Inner PE Bag In Carton
Delivery Time:	2~30 Work days
Payment Terms:	T/T, Western Union, Paypal, L/C
Supply Ability:	20000 pcs Per Month

Contact Now

Detailed Product Description

Spindle Type:	MAS BT40	OEM/ODM:	Yes
Product Type:	Standard Hydraulic Grip Holder	Runout:	0.003mm
Balance:	Available	Cutting Type:	Turing, Milling, Boring, Drilling
Material:	Special Steel	Application:	Precision Finishing And Grooving
Highlight:	milling machine cutting tools , cnc milling cutters

MAS BT40 Machining Hydro Grip Tool Holder Precision Finishing Grooving

Ⅰ. Features And Advantages

1. Moment of force 450 nm.

2. Special tool for deep hole cutting and grooving.

3. Tools Run-out<0.003mm at 4x D.

4. Balancing quality G2.5, 25000RPM.
5. High gripping precision, protect tools from wearing.

Ⅱ. Technical Parametes

Product Name	MAS BT Hydraulic Grip Abor
Spindle Type	BT40
Clamping Range	3~16 mm
Runout	0.003mm
Processing Type	Milling, Face mill, Finishing machining, Hole making.
Product Material	Special steel
Hardness	HRC58~60°

Ⅲ. Product Introduction

MAS BT40 Machining Hydro Grip Tool Holder Precision Finishing Grooving

Standard Items

Model number	D1	D2	D3	D4	L	L2max	L2min	V	L3	Collet	G	Spanner	Type
BT30-HM6-70	6	25	28	45	70	37.5	27.5	10	28	--	M5*0.8	T4	Fig1
BT30-HM8-70	8	27	30		70	37.5	27.5		28	--	M6*1.0
BT30-HM10-75	10	29	32		75	42.5	32.5		38	--	M8*1.0
BT30-HM12-75	12	31	34		75	47.5	37.5		34	OHM12	M8*1.0
BT30-HM14-85	14	33	36		85	47.5	37.5		44	--	M8*1.0
BT30-HM16-90	16	35	38		90	52.5	42.5		46	--	M10*1.0
BT30-HM18-90	18	38	41		90	52.5	42.5		48	--	M10*1.0
BT30-HM20-90	20	40	43		90	52.5	42.5		46	OHM20	M10*1.0
BT40-HM6-90	6	25	28	50	90	37.5	27.5	10	44.5	--	M5*0.8	T4	Fig1
BT40-HM8-90	8	27	30		90	37.5	27.5		44.5	--	M6*1.0
BT40-HM10-90	10	29	32		90	42.5	32.5		44.5	--	M8*1.0
BT40-HM12-90	12	31	34		90	47.5	37.5		44.5	OHM12	M8*1.0
BT40-HM14-90	14	33	36		90	47.5	37.5		44	--	M8*1.0
BT40-HM16-90	16	35	38		90	52.5	42.5		48	--	M10*1.0
BT40-HM18-95	18	38	41		95	52.5	42.5		48	--	M10*1.0
BT40-HM20-90	20	40	43		90	52.5	42.5		48	OHM20	M10*1.0
BT40-HM25-100	25	53	57		100	61.0	51	--	73	--	M16*1.0	T5	Fig2
BT40-HM32-105	32	60	63		105	65.0	55	--	78	OHM32	M16*1.0	T5	Fig2
BT50-HM12-90	12	31	34		90	47.5	37.5	10	32	OHM12	M8*1.0	T4	Fig1
BT50-HM20-90	20	40	43		90	52.5	42.5	10	32	OHM20	M10*1.0	T4	Fig1
BT50-HM32-115	32	60	63	--	115	65.0	55	--	77	OHM32	M16*1.0	T5	Fig2
BT50-HM6-90	6	25	28	50	90	37.5	27.5	10	32	--	M5*0.8	T4	Fig1
BT50-HM8-90	8	27	30		90	37.5	27.5		32	--	M6*1.0
BT50-HM10-90	10	29	32		90	42.5	32.5		32	--	M8*1.0
BT50-HM12-90	12	31	34		90	47.5	37.5		32	OHM12	M8*1.0
BT50-HM14-90	14	33	36		90	47.5	37.5		32	--	M8*1.0
BT50-HM16-90	16	35	38		90	52.5	42.5		32	--	M10*1.0
BT50-HM18-90	18	38	41		90	52.5	42.5		32	--	M10*1.0
BT50-HM20-90	20	40	43		90	52.5	42.5		32	OHM20	M10*1.0
BT50-HM25-105	25	53	57	--	105	61	51		67	--	M16*1	T5	Fig2
BT50-HM32-115	32	60	63	--	115	65	55		77	OHM32	M16*1	T5	Fig2

Precision	3～6		6.1～10		10.1～14		14.1～18		18.1～24		24.1～30
H6	0-8UM		0-9UM		0-11UM		0-11UM		0-13UM		0-13UM

MAS BT40 Machining Hydro Grip Tool Holder Precision Finishing Grooving

Collets available.

Model Number	D1	D2	L1	L2	d
HM12-3	12	16	44.5	2	3
-4					4
-5					5
-6					6
-7					7
-8					8
HM20-3	20	24	50.5	2	3
-4					4
-5					5
-6					6
-7					7
-8					8
-9					9
-10					10
-11					11
-12					12
-13					13
-14					14
-15					15
-16					16
HM32-6	32	36	60.5	3	6
-8					8
-10					10
-12					12
-14					14
-16					16
-18					18
-20					20
-25					25

Ⅳ. Overview for HIPPSC Products

1. BT40 HM 20mm Dia Hydraulic Tool Holder/Arbor with L 90mm.

2. BT/BBT/SK/CAT/HSK/ISO/NT/NBT CNC Tool Holder/Arbor/Shank.

3. Heat Shrink-Fit/Shrinking/Heat Expansion Tool Holders/Shanks/Arbors.

4. Threaded/Screw-on/Thread Screw Tool Holders/Arbors/Shank.

5. Back Lock/Side Lock Tool Holders/Arbors/Shanks.

6. Mirror Finishing Type Tool Holders/Arbors/Shanks.

7. Morse Taper/Tapering Tool Holders/Arbors/Shanks.

8. Face Milling Adapters/Cutter And Inserts/Blades.

9. Drilling/Driller Chuck Holders/Tool Holders/Shanks/Arbor.

10. Torque Floating Tap/Tapping/Drilling Chuck.

11. Nuts/Pull stud/Bolt Blind rivet/Spindle taper wiper/Test bar/Tester.

12. ER/SK/Hydraulic/Back lock/Torque tapping Collets.
13. Torque/ Round/Circle Spanners/Wrenches/Keys.

14. Edge finder/Tool Holder Tightening Fixture/Table.

16. PCBN/PCD Blade/Cutters/Tool bits.

17. Quick change Square shoulder/Ball nose/Triangle/Pentagon/Horseshoe cutter bit.

18. CNC Cutter head/ Cutter Disk/Inserts Holder/Cutter bar.

Ⅴ. Shipmen

By Sea; By Air; By Train/Truck.

TNT, EMS, DHL, UPS, FedEx.

Based On customer's requirement.

Ⅵ. Packing

PE Bag.
Plastic Box.
Carton Box.

Other Materials

Rust Presensitive Oil.
Adhesive Tape.
Packing Belt.

Ⅶ. Warehouse

1. Abundant Stocks of All Products Guarantee On-time Shipment.
2. All Materials and Products Are Inspected and Strictly and Carefully Before Going out.

3.   Both IQC and OQC Operaters Are Responsible for Quality and Specification Assurance.
4.   Using Professional Equipment and Gauge To Check Technical Parameters.

Ⅷ. Manufacturing and Sales Service

1.   Use Professional and Precise Equipments, Experienced Workers.
2.   We Offer OEM&ODM service to custom's actual demand.
3.   One-Stop Service For CNC Cutting Tools.

4. Warranty with 12 Months, Free Repairing Service.
