BT40 Milling Hydraulic Tool Holder Hardware Tools Spandle Taper STD AT3

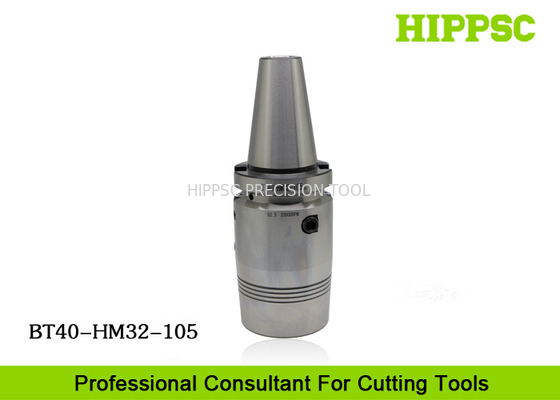

Large Image : BT40 Milling Hydraulic Tool Holder Hardware Tools Spandle Taper STD AT3

Product Details:

Place of Origin:	Dongguan, China
Brand Name:	HIPPSC
Certification:	ISO9001
Model Number:	BT40-HM32-105

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	Negotiable (Price term: EXW, FOB, CFR, CIF )
Packaging Details:	Plastic Box with Inner PE Bag In Carton
Delivery Time:	2~30 Work days
Payment Terms:	T/T, Western Union, Paypal, L/C
Supply Ability:	20000 pcs Per Month

Contact Now

Detailed Product Description

Spindle Type:	BT40	OEM/ODM:	Yes
Product Type:	Hydraulic Tool Holder	Runout:	0.003mm
Balance:	Available	Cutting Type:	Turing, Milling, Boring, Drilling
Material:	Special Steel	Application:	Hole Making Process And Precision Finishing
Nickel-Plated:	Available
Highlight:	machine tool holders , boring tool holder

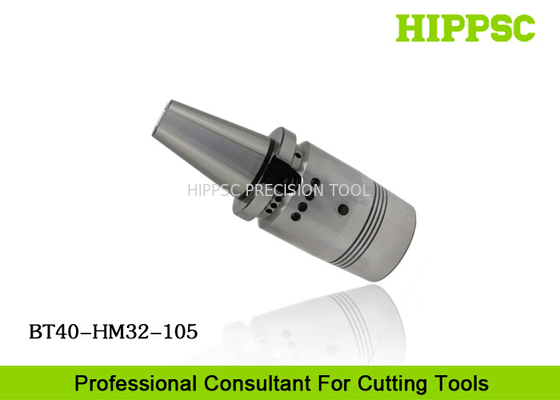

BT40 Milling Hydraulic Tool Holder Hardware Tools Spandle Taper STD AT3

Ⅰ. Features And Advantages

1. 450nm of moment of force.

2. Good tool for drilling a hole.

3. Running accuracy < 0.003mm.

4. Good for finish machining.
5. High gripping precision.

6. Spandle Taper STD AT3.

7. Hardness Up To 58~60 Degree.

Ⅱ. Technical Parametes

Product Name	CNC Hydraulic Tool Holder
Spindle Type	BT40
Clamping Range	6/8/10/12/14/16/18/20/25 mm
Runout	0.003mm
Processing Type	Milling, Face mill, Finishing machining, Hole making.
Product Material	Special steel
Hardness	HRC58°~60°

Ⅲ. Product Introduction

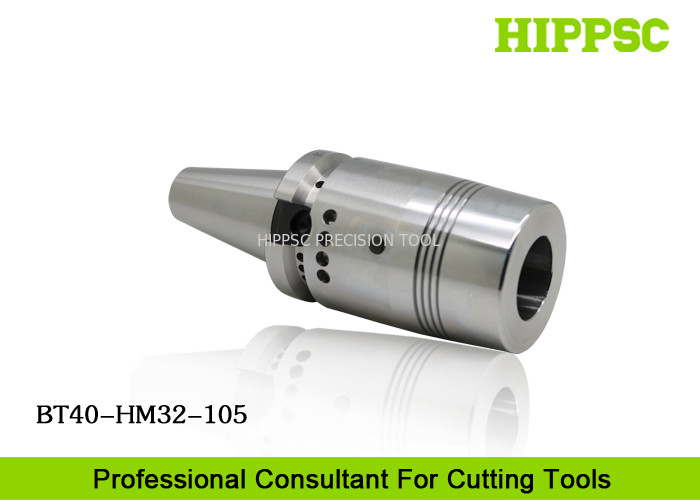

BT40 Milling Hydraulic Tool Holder Hardware Tools Spandle Taper STD AT3

1. The Below Items can be supplied soon.

2. Collets and Spanners are not included.

Model number	D1	D2	D3	D4	L	L2max	L2min	V	L3	Collet	G	Spanner	Type
BT30-HM6-70	6	25	28	45	70	37.5	27.5	10	28	--	M5*0.8	T4	Fig1
BT30-HM8-70	8	27	30		70	37.5	27.5		28	--	M6*1.0
BT30-HM10-75	10	29	32		75	42.5	32.5		38	--	M8*1.0
BT30-HM12-75	12	31	34		75	47.5	37.5		34	OHM12	M8*1.0
BT30-HM14-85	14	33	36		85	47.5	37.5		44	--	M8*1.0
BT30-HM16-90	16	35	38		90	52.5	42.5		46	--	M10*1.0
BT30-HM18-90	18	38	41		90	52.5	42.5		48	--	M10*1.0
BT30-HM20-90	20	40	43		90	52.5	42.5		46	OHM20	M10*1.0
BT40-HM6-90	6	25	28	50	90	37.5	27.5	10	44.5	--	M5*0.8	T4	Fig1
BT40-HM8-90	8	27	30		90	37.5	27.5		44.5	--	M6*1.0
BT40-HM10-90	10	29	32		90	42.5	32.5		44.5	--	M8*1.0
BT40-HM12-90	12	31	34		90	47.5	37.5		44.5	OHM12	M8*1.0
BT40-HM14-90	14	33	36		90	47.5	37.5		44	--	M8*1.0
BT40-HM16-90	16	35	38		90	52.5	42.5		48	--	M10*1.0
BT40-HM18-95	18	38	41		95	52.5	42.5		48	--	M10*1.0
BT40-HM20-90	20	40	43		90	52.5	42.5		48	OHM20	M10*1.0
BT40-HM25-100	25	53	57		100	61.0	51	--	73	--	M16*1.0	T5	Fig2
BT40-HM32-105	32	60	63		105	65.0	55	--	78	OHM32	M16*1.0	T5	Fig2
BT50-HM12-90	12	31	34		90	47.5	37.5	10	32	OHM12	M8*1.0	T4	Fig1
BT50-HM20-90	20	40	43		90	52.5	42.5	10	32	OHM20	M10*1.0	T4	Fig1
BT50-HM32-115	32	60	63	--	115	65.0	55	--	77	OHM32	M16*1.0	T5	Fig2
BT50-HM6-90	6	25	28	50	90	37.5	27.5	10	32	--	M5*0.8	T4	Fig1
BT50-HM8-90	8	27	30		90	37.5	27.5		32	--	M6*1.0
BT50-HM10-90	10	29	32		90	42.5	32.5		32	--	M8*1.0
BT50-HM12-90	12	31	34		90	47.5	37.5		32	OHM12	M8*1.0
BT50-HM14-90	14	33	36		90	47.5	37.5		32	--	M8*1.0
BT50-HM16-90	16	35	38		90	52.5	42.5		32	--	M10*1.0
BT50-HM18-90	18	38	41		90	52.5	42.5		32	--	M10*1.0
BT50-HM20-90	20	40	43		90	52.5	42.5		32	OHM20	M10*1.0
BT50-HM25-105	25	53	57	--	105	61	51		67	--	M16*1	T5	Fig2
BT50-HM32-115	32	60	63	--	115	65	55		77	OHM32	M16*1	T5	Fig2

Precision	3～6		6.1～10		10.1～14		14.1～18		18.1～24		24.1～30
H6	0-8UM		0-9UM		0-11UM		0-11UM		0-13UM		0-13UM

1. Collets specifications

2. The below items are with standard size, we can also provide other

sizes on customers' request.

Model Number	D1	D2	L1	L2	d
HM12-3	12	16	44.5	2	3
-4					4
-5					5
-6					6
-7					7
-8					8
HM20-3	20	24	50.5	2	3
-4					4
-5					5
-6					6
-7					7
-8					8
-9					9
-10					10
-11					11
-12					12
-13					13
-14					14
-15					15
-16					16
HM32-6	32	36	60.5	3	6
-8					8
-10					10
-12					12
-14					14
-16					16
-18					18
-20					20
-25					25

Ⅳ. Overview for HIPPSC Products

1. BT40 HM 32mm Diameter Hydraulic Tool Holder/Arbor with L 105mm.

2. All Types of BT/BBT/SK/CAT/HSK/ISO/NT/NBT CNC Tool Holders.

3. Heat Shrink-Fit/Shrinking/Heat Expansion Tool Holders.

4. Threaded/Screw-on/Thread Screw Tool Holders.

5. Back Lock/Side Lock Tool Holders.

6. Mirror Finishing Tool Holders.

7. Morse Taper/Tapering Tool Holders.

8. Face Milling Adapters/Cutter And Inserts/Blades.

9. Drilling/Driller Chuck Holders/Tool Holders/Shanks/Arbor.

10. Torque Floating Tap/Tapping/Drilling Chuck.

11. Nuts/Pull stud/Bolt Blind rivet/Spindle taper wiper/Test bar/Tester.

12. ER/SK/Hydraulic/Back lock/Torque tapping Collets.
13. Torque/ Round/Circle Spanners/Wrenches/Keys.

14. Edge finder/Tool Holder Tightening Fixture/Table.

16. PCBN/PCD Blade/Cutters/Tool bits.

17. Quick change Square shoulder/Ball nose/Triangle/Pentagon/Horseshoe cutter bit.

18. CNC Cutterhead/ Cutter Disk/Inserts Holder/Cutter bar.

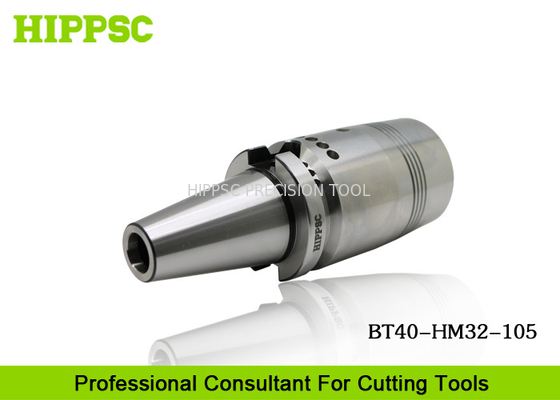

BT40 Milling Hydraulic Tool Holder Hardware Tools Spandle Taper STD AT3

Ⅴ. Shipmen

By Sea; By Air; By Train/Truck.

TNT, EMS, DHL, UPS, FedEx.

Ⅵ. Packing

1. Outter Packing
PE Bag.
Plastic Box.
Carton Box.
Packing Belt.

Rust Presensitive Oil.
Adhesive Tape.

2. Customer decided.

Ⅶ. Warehouse

We always prepare enough stock for all standard specification items and even for non-standard

products, we also arrange inventory according to customer's purchasing plan.

Ⅷ. Manufacturing and Sales Service

1.   Professional Equipments, Special Technology, Experienced Workers.
2.   Offer OEM&ODM , Custom Made Service Based On Custom's Real Demand.
3.   One-Stop Service For CNC Cutting Tools Application .

4. Warranty 12 Months, Free Repairing Service Or Replace Old Item with New One.
