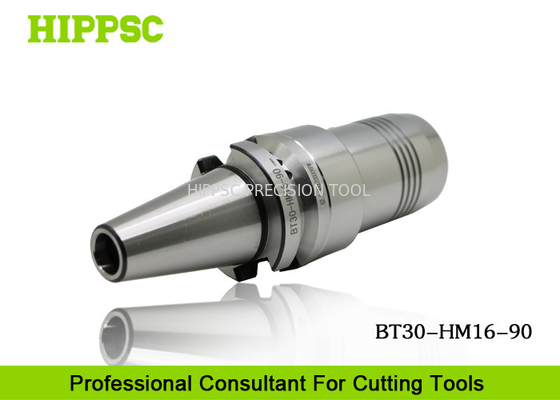

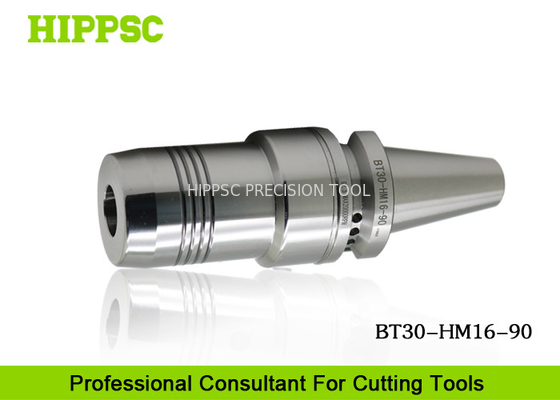

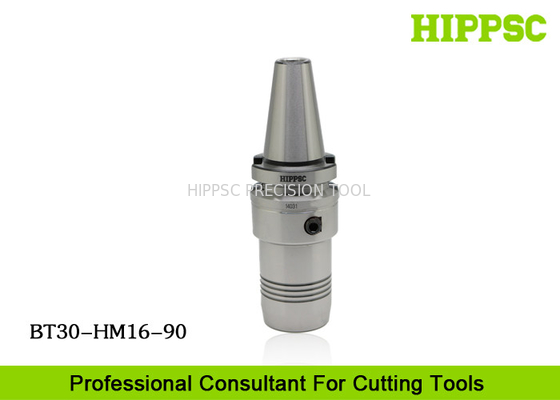

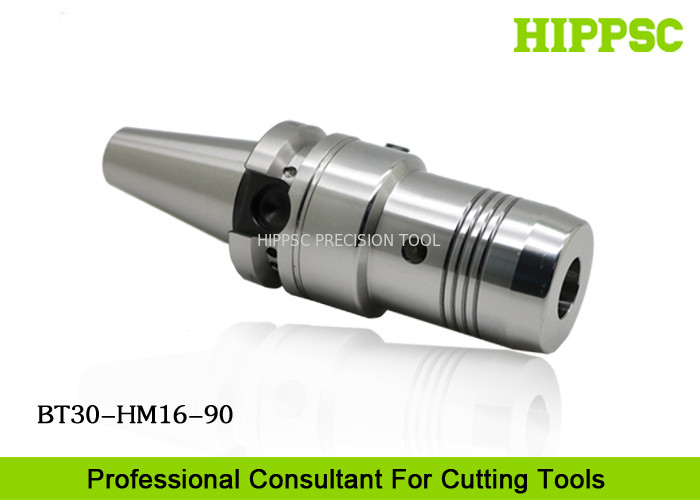

BT30 CNC Hydraulic Expansion Chuck , Precision Tool Holders For CNC

Large Image : BT30 CNC Hydraulic Expansion Chuck , Precision Tool Holders For CNC

Product Details:

Place of Origin:	Dongguan, China
Brand Name:	HIPPSC
Certification:	ISO9001
Model Number:	BT30-HM12-90

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	Negotiable (Price term: EXW, FOB, CFR, CIF )
Packaging Details:	Plastic Box with Inner PE Bag In Carton
Delivery Time:	2~30 Work days
Payment Terms:	T/T, Western Union, Paypal, L/C
Supply Ability:	20000 pcs Per Month

Contact Now

Detailed Product Description

Spindle Type:	BT30	OEM/ODM:	Yes
Product Type:	Hydraulic Tool Holder	Runout:	0.003mm
Balance:	Available	Cutting Type:	Turing, Milling, Boring, Drilling
Material:	Special Steel	Application:	Hole Making Process And Precision Finishing
Clamp Range:	(3,4,5,6,7,8) Mm
Highlight:	mill tool holders , boring tool holder

BT30 CNC Hydraulic Expansion Chuck , Precision Tool Holders For CNC

Ⅰ. Features And Advantages

1. 450nm moment of force, improve rigidity and accuracy..

2. It can go down to very deep place.

3. Running accuracy ≤ 0.003mm.

4. Good for finish machining.

Ⅱ. Technical Parametes

Product Name	CNC Hydraulic Tool Holder
Spindle Type	BT30
Clamping Range	4/6/8/10/12 mm (diameter)
Runout	0.003 μm
Processing Type	Milling, Face mill, Finishing machining, Hole making.
Product Material	Special steel
Hardness	HRC58~60°

Ⅲ. Product Introduction

CAD

BT30 CNC Hydraulic Expansion Chuck , Precision Tool Holders For CNC

Standard Items

Spanner and Collet are not included

Model number	D1	D2	D3	D4	L	L2max	L2min	V	L3	Collet	G	Spanner	Type
BT30-HM6-70	6	25	28	45	70	37.5	27.5	10	28	--	M5*0.8	T4	Fig1
BT30-HM8-70	8	27	30		70	37.5	27.5		28	--	M6*1.0
BT30-HM10-75	10	29	32		75	42.5	32.5		38	--	M8*1.0
BT30-HM12-75	12	31	34		75	47.5	37.5		34	OHM12	M8*1.0
BT30-HM14-85	14	33	36		85	47.5	37.5		44	--	M8*1.0
BT30-HM16-90	16	35	38		90	52.5	42.5		46	--	M10*1.0
BT30-HM18-90	18	38	41		90	52.5	42.5		48	--	M10*1.0
BT30-HM20-90	20	40	43		90	52.5	42.5		46	OHM20	M10*1.0
BT40-HM6-90	6	25	28	50	90	37.5	27.5	10	44.5	--	M5*0.8	T4	Fig1
BT40-HM8-90	8	27	30		90	37.5	27.5		44.5	--	M6*1.0
BT40-HM10-90	10	29	32		90	42.5	32.5		44.5	--	M8*1.0
BT40-HM12-90	12	31	34		90	47.5	37.5		44.5	OHM12	M8*1.0
BT40-HM14-90	14	33	36		90	47.5	37.5		44	--	M8*1.0
BT40-HM16-90	16	35	38		90	52.5	42.5		48	--	M10*1.0
BT40-HM18-95	18	38	41		95	52.5	42.5		48	--	M10*1.0
BT40-HM20-90	20	40	43		90	52.5	42.5		48	OHM20	M10*1.0
BT40-HM25-100	25	53	57		100	61.0	51	--	73	--	M16*1.0	T5	Fig2
BT40-HM32-105	32	60	63		105	65.0	55	--	78	OHM32	M16*1.0	T5	Fig2
BT50-HM12-90	12	31	34		90	47.5	37.5	10	32	OHM12	M8*1.0	T4	Fig1
BT50-HM20-90	20	40	43		90	52.5	42.5	10	32	OHM20	M10*1.0	T4	Fig1
BT50-HM32-115	32	60	63	--	115	65.0	55	--	77	OHM32	M16*1.0	T5	Fig2
BT50-HM6-90	6	25	28	50	90	37.5	27.5	10	32	--	M5*0.8	T4	Fig1
BT50-HM8-90	8	27	30		90	37.5	27.5		32	--	M6*1.0
BT50-HM10-90	10	29	32		90	42.5	32.5		32	--	M8*1.0
BT50-HM12-90	12	31	34		90	47.5	37.5		32	OHM12	M8*1.0
BT50-HM14-90	14	33	36		90	47.5	37.5		32	--	M8*1.0
BT50-HM16-90	16	35	38		90	52.5	42.5		32	--	M10*1.0
BT50-HM18-90	18	38	41		90	52.5	42.5		32	--	M10*1.0
BT50-HM20-90	20	40	43		90	52.5	42.5		32	OHM20	M10*1.0
BT50-HM25-105	25	53	57	--	105	61	51		67	--	M16*1	T5	Fig2
BT50-HM32-115	32	60	63	--	115	65	55		77	OHM32	M16*1	T5	Fig2

Precision	3～6		6.1～10		10.1～14		14.1～18		18.1～24		24.1～30
H6	0-8UM		0-9UM		0-11UM		0-11UM		0-13UM		0-13UM

Model Number	D1	D2	L1	L2	d
HM12-3	12	16	44.5	2	3
-4					4
-5					5
-6					6
-7					7
-8					8
HM20-3	20	24	50.5	2	3
-4					4
-5					5
-6					6
-7					7
-8					8
-9					9
-10					10
-11					11
-12					12
-13					13
-14					14
-15					15
-16					16
HM32-6	32	36	60.5	3	6
-8					8
-10					10
-12					12
-14					14
-16					16
-18					18
-20					20
-25					25

Ⅳ. Overview for HIPPSC Products

1. BT30 With12mm Diameter Hydraulic Tool Holder/Arbor with L 90mm.

2. Enough Types of BT/BBT/DIN/SK/CAT/HSK/ISO/NT/NBT To Meet Customer Demand.

3. Heat Shrink-Fit/Shrinking/Heat Expansion Tool Holders.

4. Threaded/Screw-on/Thread Screw Tool Holders.

5. Back Lock/Side Lock Tool Holders.

6. Mirror Finishing Tool Holders.

7. Morse Taper/Tapering Tool Holders.

8. Face Milling Adapters/Cutter And Inserts/Blades.

9. CNC Drilling Chucks.

10. Torque Floating Tap/Tapping Chuck.

11. Nuts/Pull stud/Bolt Blind rivet/Spindle taper wiper/Test bar/Tester.

12. ER/SK/Hydraulic/Back lock/Torque tapping/C Type Power Collet.
13. Torque/ Round/Circle Spanners/Wrenches/Keys.

14. Edge finder/Tool Holder Tightening Fixture/Table.

15. Indexable PCBN/PCD Blade/Cutters/Inserts.

16. Square shoulder/Roun nose/Triangle/Pentagon/Horseshoe cutter bits.

Ⅴ. Shipmen

1. Choose from: By Sea; By Air; By Train/Truck.

TNT, EMS, DHL, UPS, FedEx.

2. Customer advised

Ⅵ. Packing

With Slushing oil.
Fastened by adhesive Tape.
Packing Belt to Strap.
PE Bag Inner package.
Plastic Box to pocess abor.
Carton Box For All goods.

Ⅶ. Warehouse

1. Quick response and On-time dispatchment For Customers' Order, Within 2 days at soonest.
2. All Materials and Products Are Inspected Strictly and Carefully Before Shipping out.

3. Both IQC and OQC Guarrantee Quality.
4. Using Professional Equipment and Gauge To Exam Technical Parameters.

BT30 CNC Hydraulic Expansion Chuck , Precision Tool Holders For CNC

Ⅷ. Manufacturing and Sales Service

1.   Professional Equipments, Special Technology, Experienced Workers.
2.   Offer OEM&ODM , Custom Made Service Based On Custom's Real Demand.
3.   One-Stop Service For CNC Cutting Tools Using.

4. Warranty 12 Months, Free Repairing Service.

5. Replacing Old Item For New One, With Possible No Extra Fee.
