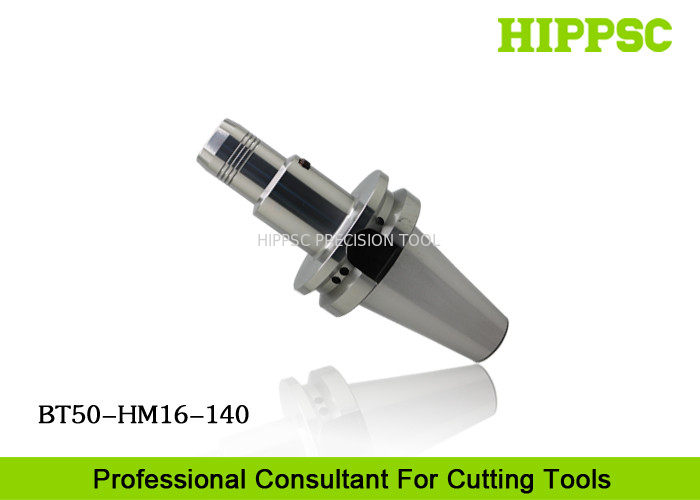

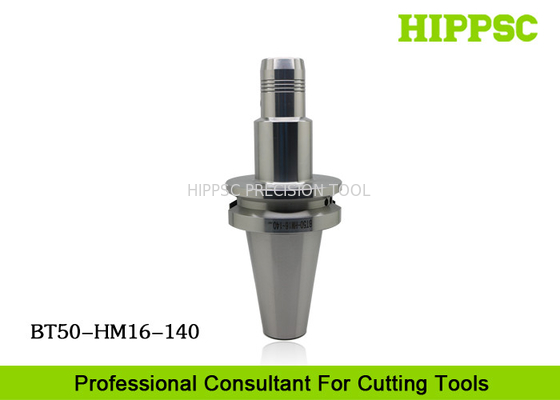

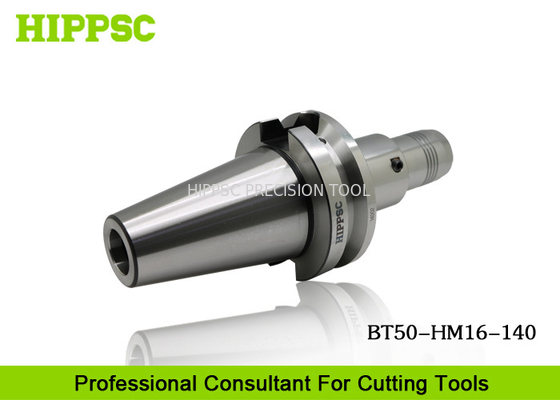

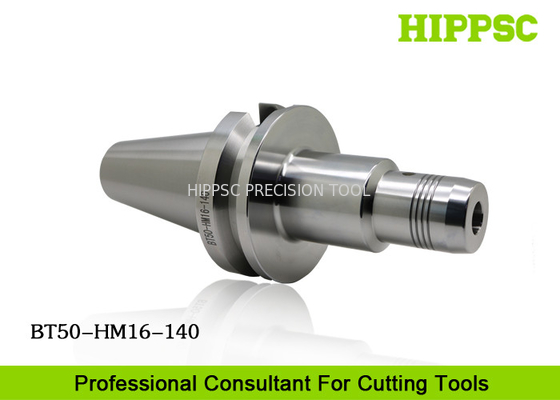

BT50 Hydraulic Boring Tool Holder , Milling Tool Holder For CNC Cutter

Large Image : BT50 Hydraulic Boring Tool Holder , Milling Tool Holder For CNC Cutter

Product Details:

Place of Origin:	Dongguan, China
Brand Name:	HIPPSC
Certification:	ISO9001
Model Number:	BT50-HM16-140

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	Negotiable (Price term: EXW, FOB, CFR, CIF )
Packaging Details:	Plastic Box with Inner PE Bag In Carton
Delivery Time:	2~30 Work days
Payment Terms:	T/T, Western Union, Paypal, L/C
Supply Ability:	20000 pcs Per Month

Contact Now

Detailed Product Description

Bore Diameter:	16mm	Spindle Type:	MAS BT50
OEM/ODM:	Yes	Product Type:	Hydraulic Arbor
Runout:	0.003μm	Balance:	Available
Cutting Type:	Turing, Milling, Boring, Drilling	Material:	Special Steel
Highlight:	mill tool holders , boring tool holder

BT50 Hydraulic Boring Tool Holder , Milling Tool Holder For CNC Cutter

Ⅰ. Features And Advantages

1. With 450nm moment of force, improve performance.

2. Drilling holes, 140mm shank, can have better cutter depth.

3. Abor Accuracy < 0.003mm at 4X D.

4. Nice clamp force, keeps the tools stability during cutting..
5. Extend Tools Service Life For 4 Times.

Ⅱ. Technical Parametes

Product Name	MAS BT50 Hydraulic Expansion Abor
Spindle Type	BT50
Clamping Range	16 mm (diameter)
Runout	0.003 μm
Processing Type	Milling, Face mill, Finishing machining, Hole making.
Product Material	Special steel
Hardness	HRC58~60°

Ⅲ. Product Introduction

BT50 Hydraulic Boring Tool Holder , Milling Tool Holder For CNC Cutter

Standard Items

Model number	D1	D2	D3	D4	L	L2max	L2min	V	L3	Collet	G	Spanner	Type
BT30-HM6-70	6	25	28	45	70	37.5	27.5	10	28	--	M5*0.8	T4	Fig1
BT30-HM8-70	8	27	30		70	37.5	27.5		28	--	M6*1.0
BT30-HM10-75	10	29	32		75	42.5	32.5		38	--	M8*1.0
BT30-HM12-75	12	31	34		75	47.5	37.5		34	OHM12	M8*1.0
BT30-HM14-85	14	33	36		85	47.5	37.5		44	--	M8*1.0
BT30-HM16-90	16	35	38		90	52.5	42.5		46	--	M10*1.0
BT30-HM18-90	18	38	41		90	52.5	42.5		48	--	M10*1.0
BT30-HM20-90	20	40	43		90	52.5	42.5		46	OHM20	M10*1.0
BT40-HM6-90	6	25	28	50	90	37.5	27.5	10	44.5	--	M5*0.8	T4	Fig1
BT40-HM8-90	8	27	30		90	37.5	27.5		44.5	--	M6*1.0
BT40-HM10-90	10	29	32		90	42.5	32.5		44.5	--	M8*1.0
BT40-HM12-90	12	31	34		90	47.5	37.5		44.5	OHM12	M8*1.0
BT40-HM14-90	14	33	36		90	47.5	37.5		44	--	M8*1.0
BT40-HM16-90	16	35	38		90	52.5	42.5		48	--	M10*1.0
BT40-HM18-95	18	38	41		95	52.5	42.5		48	--	M10*1.0
BT40-HM20-90	20	40	43		90	52.5	42.5		48	OHM20	M10*1.0
BT40-HM25-100	25	53	57		100	61.0	51	--	73	--	M16*1.0	T5	Fig2
BT40-HM32-105	32	60	63		105	65.0	55	--	78	OHM32	M16*1.0	T5	Fig2
BT50-HM12-90	12	31	34		90	47.5	37.5	10	32	OHM12	M8*1.0	T4	Fig1
BT50-HM20-90	20	40	43		90	52.5	42.5	10	32	OHM20	M10*1.0	T4	Fig1
BT50-HM32-115	32	60	63	--	115	65.0	55	--	77	OHM32	M16*1.0	T5	Fig2
BT50-HM6-90	6	25	28	50	90	37.5	27.5	10	32	--	M5*0.8	T4	Fig1
BT50-HM8-90	8	27	30		90	37.5	27.5		32	--	M6*1.0
BT50-HM10-90	10	29	32		90	42.5	32.5		32	--	M8*1.0
BT50-HM12-90	12	31	34		90	47.5	37.5		32	OHM12	M8*1.0
BT50-HM14-90	14	33	36		90	47.5	37.5		32	--	M8*1.0
BT50-HM16-90	16	35	38		90	52.5	42.5		32	--	M10*1.0
BT50-HM18-90	18	38	41		90	52.5	42.5		32	--	M10*1.0
BT50-HM20-90	20	40	43		90	52.5	42.5		32	OHM20	M10*1.0
BT50-HM25-105	25	53	57	--	105	61	51		67	--	M16*1	T5	Fig2
BT50-HM32-115	32	60	63	--	115	65	55		77	OHM32	M16*1	T5	Fig2

Precision	3～6		6.1～10		10.1～14		14.1～18		18.1～24		24.1～30
H6	0-8UM		0-9UM		0-11UM		0-11UM		0-13UM		0-13UM

Collet Specifications

Model Number	D1	D2	L1	L2	d
HM12-3	12	16	44.5	2	3
-4					4
-5					5
-6					6
-7					7
-8					8
HM20-3	20	24	50.5	2	3
-4					4
-5					5
-6					6
-7					7
-8					8
-9					9
-10					10
-11					11
-12					12
-13					13
-14					14
-15					15
-16					16
HM32-6	32	36	60.5	3	6
-8					8
-10					10
-12					12
-14					14
-16					16
-18					18
-20					20
-25					25

Ⅳ. Overview for HIPPSC Products

1. BT50 With 16mm Diameter Hydraulic Arbor with 140mm Shank For Deep Hole And Groove.

2. MAS BT/BBT/SK/CAT/HSK/ISO/NT/NBT To Meet Customer Demand.

3. Heat Shrink-Fit/Shrinking/Heat Expansion Tool Holders System.

4. Threaded/Screw-in/Thread Screw Tool Holders.

5. Pull back/Side Lock Tool Holders.

6. Mirror Finishing Tool Holders.

7. Morse Taper/Tapering Tool Holders.

8. Face Milling Adapters/Cutter And Inserts/Blades.

9. Torque Tap/Tapping Chuck.

10. Nuts/Pull stud/Bolt Blind rivet/Spindle taper wiper/Test bar/Tester.

11. ER/SK/Hydraulic/Back lock/Torque tapping/C Type Power Collet.
12. Torque/ Round/Circle Spanners/Wrenches/Keys.

13. Edge finder/Tool Holder Tightening Fixture/Table.

14. Indexable PCBN/PCD Blade/Cutters/Inserts.

15. Square shoulder/Roud nose/Triangle/Pentagon/Horseshoe cutter bits.

Ⅴ. Shipmen

We will do our best to arrange the most effecient and cost effective transportation method

for our customers, we can also even bear some part of total freight to reduce customers' cost, and make our products more competitive to end users in local markets.

By Sea; By Air; By Train/Truck.

TNT, EMS, DHL, UPS, FedEx.

Ⅵ. Packing

PE Bag.
Plastic Box.
Carton Box.

Other Materials

Slushing oil.
Adhesive Tape.
Packing Belt.

OEM Available.

Ⅶ. Warehouse

There are specific staffs in our company responsible for taking good care of warehouse with years

of experience, this ensure quality of products and delievery accuracy.

There are special people who responsible for IQC and OQC, the goods have to go through several

inspection steps before being sending out.

We arrange checking and rust removel regularly for our products in stock, and replace rust-resistant
oil from time to time.

GOOD QUALITY AND TIMELY DELIVERY IS OUR ADVANTAGES TO OUR CUSTOMERS.

BT50 Hydraulic Boring Tool Holder , Milling Tool Holder For CNC Cutter

Ⅷ. Warranty

1.   We guarrantee that all goods sent out should meet customer's purchase demand.
2.   We ensure that our goods sent to customers are all accordance with what we told.
3.   So long as our customer receive a broken product or defects, we can replace it for

a new one or arrange refund.

4. We provide special service to our customers that replace old items with new ones.

The buyer just probably need to pay a small price for a complete new item.
