CNC Hydro Expansion Hydraulic Tool Holder with 20mm Claming Diameter For Drill

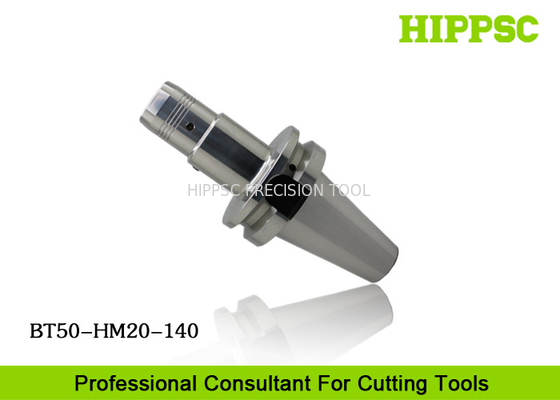

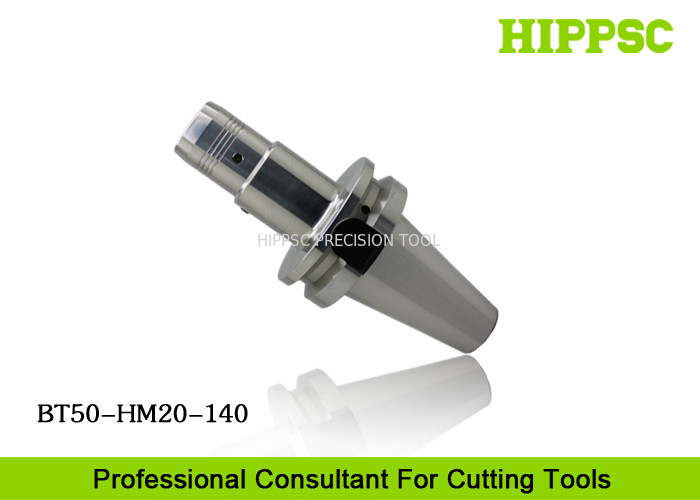

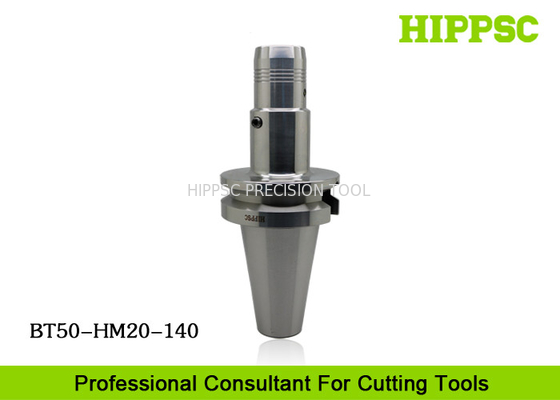

Large Image : CNC Hydro Expansion Hydraulic Tool Holder with 20mm Claming Diameter For Drill

Product Details:

Place of Origin:	Dongguan, China
Brand Name:	HIPPSC
Certification:	ISO9001
Model Number:	BT50-HM20-140

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	Negotiable (Price term: EXW, FOB, CFR, CIF )
Packaging Details:	Plastic Box with Inner PE Bag In Carton
Delivery Time:	2~30 Work days
Payment Terms:	T/T, Western Union, Paypal, L/C
Supply Ability:	20000 pcs Per Month

Contact Now

Detailed Product Description

Spindle Type:	MAS BT50	OEM/ODM:	Yes
Product Type:	Hydraulic Tool Holder	Runout:	3μm
Balance:	G2.5 25000rpm.	Cutting Type:	Turing, Milling, Boring, Drilling
Material:	Special Steel	Application:	Hole Making Process And Precision Finishing
Diameter:	16mm	Collet Type:	OHM
Highlight:	cnc lathe cutting tools , cnc milling cutters

CNC Hydro Expansion Hydraulic Tool Holder with 20mm Claming Diameter For Drill

Ⅰ. Features And Advantages

With 450nm moment of force, improve tools performance.
For drilling holes and face Miling.
Beating accuracy ≤ 3μm.
Good for finish machining.
High grip accuracy, improve tools's service life, save cost.

Ⅱ. Technical Parametes

Product Name	CNC Hydraulic Tool Holder
Spindle Type	BT50
Clamping Range	3mm~16 mm (diameter)
Runout	3 μm
Processing Type	Milling, Face mill, Finishing machining, Hole making.
Product Material	Special steel
Hardness	HRC58~60°

Ⅲ. Product Introduction

CNC Hydro Expansion Hydraulic Tool Holder with 20mm Claming Diameter For Drill

Standard Items

Model number	D1	D2	D3	D4	L	L2max	L2min	V	L3	Collet	G	Spanner	Type
BT30-HM6-70	6	25	28	45	70	37.5	27.5	10	28	--	M5*0.8	T4	Fig1
BT30-HM8-70	8	27	30		70	37.5	27.5		28	--	M6*1.0
BT30-HM10-75	10	29	32		75	42.5	32.5		38	--	M8*1.0
BT30-HM12-75	12	31	34		75	47.5	37.5		34	OHM12	M8*1.0
BT30-HM14-85	14	33	36		85	47.5	37.5		44	--	M8*1.0
BT30-HM16-90	16	35	38		90	52.5	42.5		46	--	M10*1.0
BT30-HM18-90	18	38	41		90	52.5	42.5		48	--	M10*1.0
BT30-HM20-90	20	40	43		90	52.5	42.5		46	OHM20	M10*1.0
BT40-HM6-90	6	25	28	50	90	37.5	27.5	10	44.5	--	M5*0.8	T4	Fig1
BT40-HM8-90	8	27	30		90	37.5	27.5		44.5	--	M6*1.0
BT40-HM10-90	10	29	32		90	42.5	32.5		44.5	--	M8*1.0
BT40-HM12-90	12	31	34		90	47.5	37.5		44.5	OHM12	M8*1.0
BT40-HM14-90	14	33	36		90	47.5	37.5		44	--	M8*1.0
BT40-HM16-90	16	35	38		90	52.5	42.5		48	--	M10*1.0
BT40-HM18-95	18	38	41		95	52.5	42.5		48	--	M10*1.0
BT40-HM20-90	20	40	43		90	52.5	42.5		48	OHM20	M10*1.0
BT40-HM25-100	25	53	57		100	61.0	51	--	73	--	M16*1.0	T5	Fig2
BT40-HM32-105	32	60	63		105	65.0	55	--	78	OHM32	M16*1.0	T5	Fig2
BT50-HM12-90	12	31	34		90	47.5	37.5	10	32	OHM12	M8*1.0	T4	Fig1
BT50-HM20-90	20	40	43		90	52.5	42.5	10	32	OHM20	M10*1.0	T4	Fig1
BT50-HM32-115	32	60	63	--	115	65.0	55	--	77	OHM32	M16*1.0	T5	Fig2
BT50-HM6-90	6	25	28	50	90	37.5	27.5	10	32	--	M5*0.8	T4	Fig1
BT50-HM8-90	8	27	30		90	37.5	27.5		32	--	M6*1.0
BT50-HM10-90	10	29	32		90	42.5	32.5		32	--	M8*1.0
BT50-HM12-90	12	31	34		90	47.5	37.5		32	OHM12	M8*1.0
BT50-HM14-90	14	33	36		90	47.5	37.5		32	--	M8*1.0
BT50-HM16-90	16	35	38		90	52.5	42.5		32	--	M10*1.0
BT50-HM18-90	18	38	41		90	52.5	42.5		32	--	M10*1.0
BT50-HM20-90	20	40	43		90	52.5	42.5		32	OHM20	M10*1.0
BT50-HM25-105	25	53	57	--	105	61	51		67	--	M16*1	T5	Fig2
BT50-HM32-115	32	60	63	--	115	65	55		77	OHM32	M16*1	T5	Fig2

Precision	3～6		6.1～10		10.1～14		14.1～18		18.1～24		24.1～30
H6	0-8UM		0-9UM		0-11UM		0-11UM		0-13UM		0-13UM

Hydraulic Straight Collet

Part Number	D1	D2	L1	L2	d
HM12-3	12	16	44.5	2	3
-4					4
-5					5
-6					6
-7					7
-8					8
HM20-3	20	24	50.5	2	3
-4					4
-5					5
-6					6
-7					7
-8					8
-9					9
-10					10
-11					11
-12					12
-13					13
-14					14
-15					15
-16					16
HM32-6	32	36	60.5	3	6
-8					8
-10					10
-12					12
-14					14
-16					16
-18					18
-20					20
-25					25

Ⅳ. Overview for HIPPSC Products

BT50 Spindle, 20mm Diameter, L 140mm, Lengthened Type Hydraulic Toolholder/Arbor.
Toolholders of BT/BBT/SK/CAT/HSK/ISO/NT/NBT for All Kinds of CNC Machine.
Heat Shrinking /Shrink-fit /Heat Expansion Tool Holders.
Threaded Screw Tool Holders.
Mirror Finishing Toolholders.
Morse Type Tool Holders.
Torque Tap/Tapping Chuck.
Screw Nuts/Pull stud/Spindle taper wiper/Arbor Test bar.
ER/SK/Hydraulic/Back lock/Torque tapping/C Type Power Collet.
Wrenches/spanners, L key and spanner of flag typt.
Edge finder/Tool Holder Tightening Fixture/Table.
Indexable PCBN/PCD Blade/Cutters/Inserts.
Quick change tools cutting bits.
