| Spindle Type: | BT50 | OEM/ODM: | Yes |
|---|---|---|---|
| Product Type: | Hydraulic Tool Holder | Runout: | 0.003mm |
| Balance: | Available | Cutting Type: | Turing, Milling, Boring, Drilling |
| Material: | Special Steel | Application: | Hole Making Process And Precision Finishing |
| Bore Diameter: | 16mm | Collet Type: | OHM |
| Highlight: | machine tool holders,boring tool holder |
||
Steel BT50 CNC Hydraulic Tool Holder Hardness With High Accuracy
Ⅰ. Features And Advantages
1. 450 nm moment of force.
2. Endmilling, Drilling and Reaming Working.
3. Beating accuracy ≤ 0.003mm.
4. Good for finish machining.
5. High gripping force, prevents tools from loosing.
6. Rapid operation and tooling changing.
7. Vibration Damping.
Ⅱ. Technical Parametes
|
Product Name |
Hydraulic Expansion Toolholder |
|
Spindle Type |
BT50 |
|
Clamping Diameter |
3mm~12mm (diameter) |
|
Run-Out |
0.003mm |
|
Processing Type |
Endmilling, Face mill, Finishing, Drilling |
|
Product Material |
Special steel |
|
Hardness |
HRC58~60° |
Ⅲ. Product Introduction
CAD
Standard Items
|
Model number |
D1 |
D2 |
D3 |
D4 |
L |
L2max |
L2min |
V |
L3 |
Collet |
G |
Spanner |
Type |
|
BT30-HM6-70 |
6 |
25 |
28 |
45 |
70 |
37.5 |
27.5 |
10 |
28 |
-- |
M5*0.8 |
T4 |
Fig1 |
|
BT30-HM8-70 |
8 |
27 |
30 |
70 |
37.5 |
27.5 |
28 |
-- |
M6*1.0 |
||||
|
BT30-HM10-75 |
10 |
29 |
32 |
75 |
42.5 |
32.5 |
38 |
-- |
M8*1.0 |
||||
|
BT30-HM12-75 |
12 |
31 |
34 |
75 |
47.5 |
37.5 |
34 |
OHM12 |
M8*1.0 |
||||
|
BT30-HM14-85 |
14 |
33 |
36 |
85 |
47.5 |
37.5 |
44 |
-- |
M8*1.0 |
||||
|
BT30-HM16-90 |
16 |
35 |
38 |
90 |
52.5 |
42.5 |
46 |
-- |
M10*1.0 |
||||
|
BT30-HM18-90 |
18 |
38 |
41 |
90 |
52.5 |
42.5 |
48 |
-- |
M10*1.0 |
||||
|
BT30-HM20-90 |
20 |
40 |
43 |
90 |
52.5 |
42.5 |
46 |
OHM20 |
M10*1.0 |
||||
|
BT40-HM6-90 |
6 |
25 |
28 |
50 |
90 |
37.5 |
27.5 |
10 |
44.5 |
-- |
M5*0.8 |
T4 |
Fig1 |
|
BT40-HM8-90 |
8 |
27 |
30 |
90 |
37.5 |
27.5 |
44.5 |
-- |
M6*1.0 |
||||
|
BT40-HM10-90 |
10 |
29 |
32 |
90 |
42.5 |
32.5 |
44.5 |
-- |
M8*1.0 |
||||
|
BT40-HM12-90 |
12 |
31 |
34 |
90 |
47.5 |
37.5 |
44.5 |
OHM12 |
M8*1.0 |
||||
|
BT40-HM14-90 |
14 |
33 |
36 |
90 |
47.5 |
37.5 |
44 |
-- |
M8*1.0 |
||||
|
BT40-HM16-90 |
16 |
35 |
38 |
90 |
52.5 |
42.5 |
48 |
-- |
M10*1.0 |
||||
|
BT40-HM18-95 |
18 |
38 |
41 |
95 |
52.5 |
42.5 |
48 |
-- |
M10*1.0 |
||||
|
BT40-HM20-90 |
20 |
40 |
43 |
90 |
52.5 |
42.5 |
48 |
OHM20 |
M10*1.0 |
||||
|
BT40-HM25-100 |
25 |
53 |
57 |
100 |
61.0 |
51 |
-- |
73 |
-- |
M16*1.0 |
T5 |
Fig2 |
|
|
BT40-HM32-105 |
32 |
60 |
63 |
105 |
65.0 |
55 |
78 |
OHM32 |
M16*1.0 |
||||
|
BT50-HM12-90 |
12 |
31 |
34 |
90 |
47.5 |
37.5 |
10 |
32 |
OHM12 |
M8*1.0 |
T4 |
Fig1 |
|
|
BT50-HM20-90 |
20 |
40 |
43 |
90 |
52.5 |
42.5 |
32 |
OHM20 |
M10*1.0 |
||||
|
BT50-HM32-115 |
32 |
60 |
63 |
-- |
115 |
65.0 |
55 |
-- |
77 |
OHM32 |
M16*1.0 |
T5 |
Fig2 |
|
BT50-HM6-90 |
6 |
25 |
28 |
50 |
90 |
37.5 |
27.5 |
10 |
32 |
-- |
M5*0.8 |
T4 |
Fig1 |
|
BT50-HM8-90 |
8 |
27 |
30 |
90 |
37.5 |
27.5 |
32 |
-- |
M6*1.0 |
||||
|
BT50-HM10-90 |
10 |
29 |
32 |
90 |
42.5 |
32.5 |
32 |
-- |
M8*1.0 |
||||
|
BT50-HM12-90 |
12 |
31 |
34 |
90 |
47.5 |
37.5 |
32 |
OHM12 |
M8*1.0 |
||||
|
BT50-HM14-90 |
14 |
33 |
36 |
90 |
47.5 |
37.5 |
32 |
-- |
M8*1.0 |
||||
|
BT50-HM16-90 |
16 |
35 |
38 |
90 |
52.5 |
42.5 |
32 |
-- |
M10*1.0 |
||||
|
BT50-HM18-90 |
18 |
38 |
41 |
90 |
52.5 |
42.5 |
32 |
-- |
M10*1.0 |
||||
|
BT50-HM20-90 |
20 |
40 |
43 |
90 |
52.5 |
42.5 |
32 |
OHM20 |
M10*1.0 |
||||
|
BT50-HM25-105 |
25 |
53 |
57 |
-- |
105 |
61 |
51 |
67 |
-- |
M16*1 |
T5 |
Fig2 |
|
|
BT50-HM32-115 |
32 |
60 |
63 |
115 |
65 |
55 |
77 |
OHM32 |
M16*1 |
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Precision |
3～6 |
6.1～10 |
10.1～14 |
14.1～18 |
18.1～24 |
24.1～30 |
|||||||
|
H6 |
0-8UM |
0-9UM |
0-11UM |
0-11UM |
0-13UM |
0-13UM |
|||||||
Ⅳ. Overview for HIPPSC Products

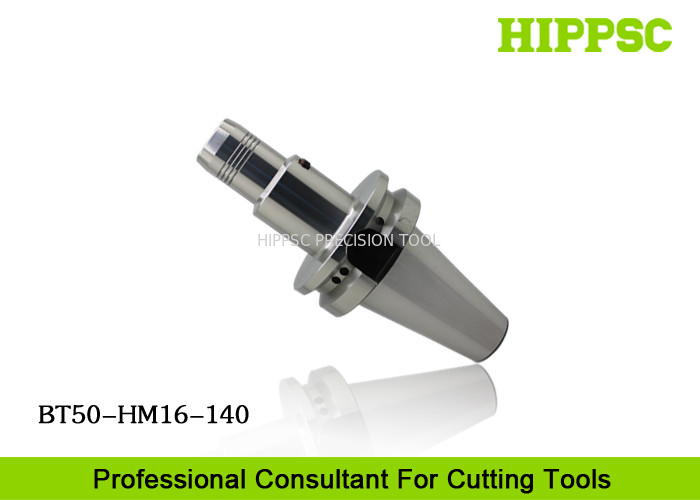

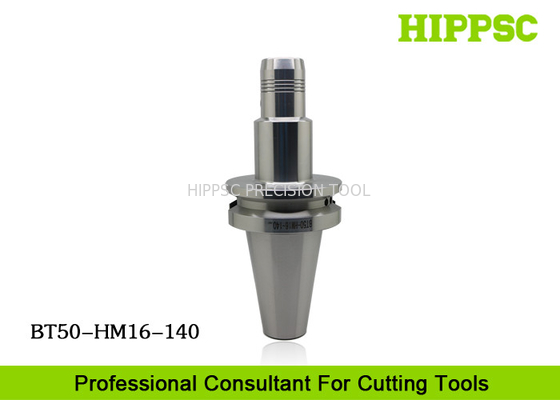

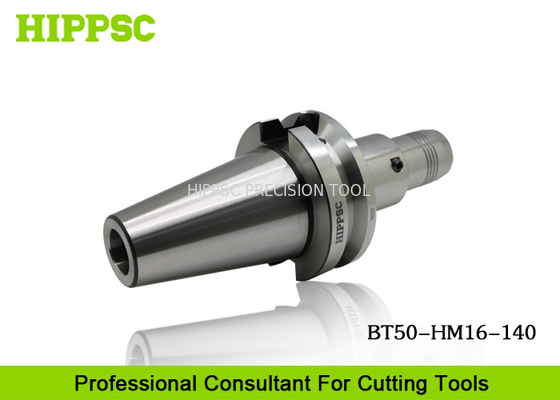

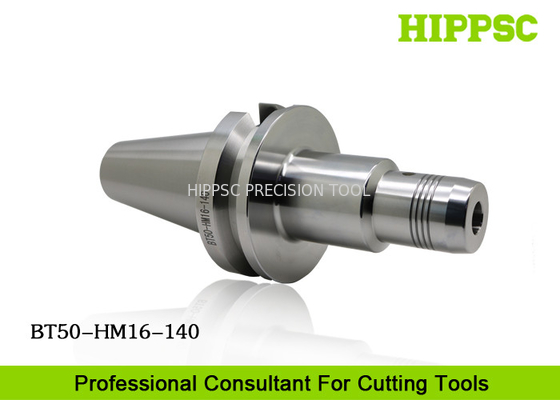

BT50 With16mm Diameter Hydraulic Tool Holder with L 140mm.
Enough Types of BT/BBT/SK/CAT/HSK/ISO/NT/NBT To Meet Customer's demand.
Heat Shrink-Fit/Shrinking/Heat Expansion Tool Holders.
Threaded/Screw-on/Thread Screw Tool Holders.
Back Lock/Side Lock Tool Holders.
Mirror Finishing Tool Holders.
Morse Taper/Tapering Tool Holders.
Face Milling Adapters/Cutter And Inserts/Blades.
Torque Tap/Tapping Chuck.
Nuts/Pull stud/Bolt Blind rivet/Spindle taper wiper/Test bar/Tester.
ER/SK/Hydraulic/Back lock/Torque tapping/C Type Power Collet.
Torque/ Round/Circle Spanners/Wrenches/Keys.
Edge finder/Tool Holder Tightening Fixture/Table.
Indexable PCBN/PCD Blade/Cutters/Inserts.
Square shoulder/Roun nose/Triangle/Pentagon/Horseshoe cutter bits.
