Universal Hydraulic Collet Chuck Precision Tool Holders 20mm Clamp

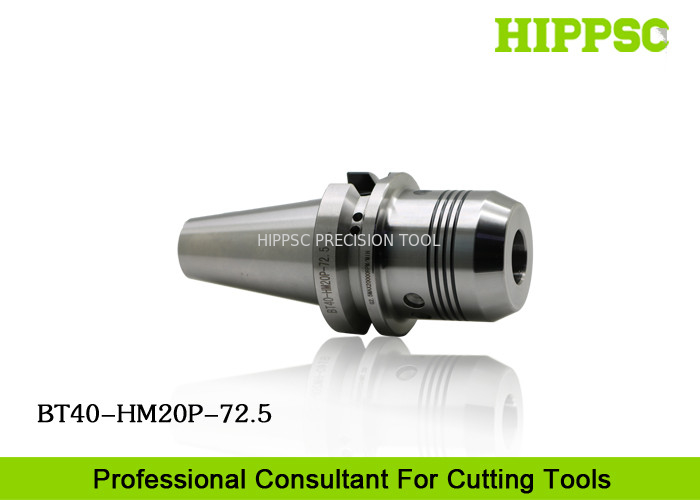

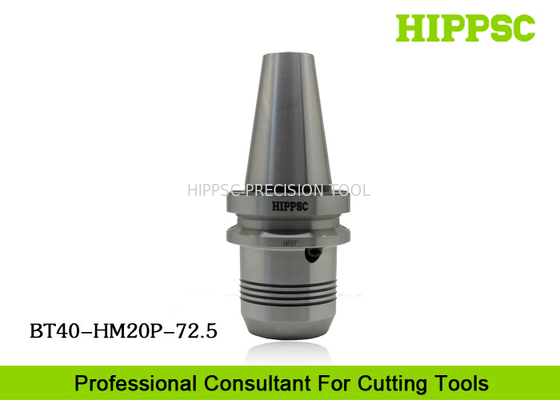

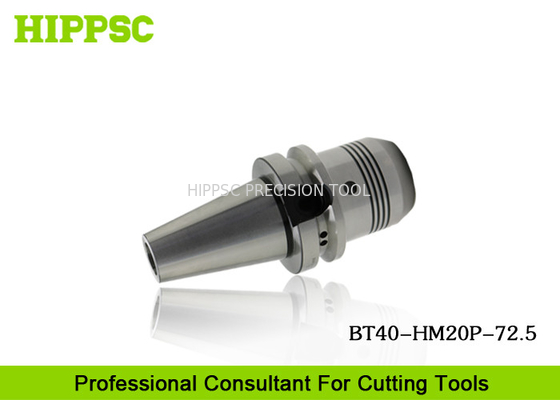

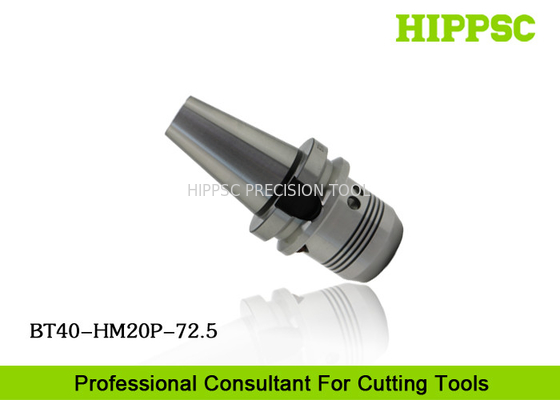

Large Image : Universal Hydraulic Collet Chuck Precision Tool Holders 20mm Clamp

Product Details:

Place of Origin:	Dongguan, China
Brand Name:	HIPPSC
Certification:	ISO9001
Model Number:	BT40-HM20P-72.5

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	Negotiable (Price term: EXW, FOB, CFR, CIF )
Packaging Details:	Plastic Box with Inner PE Bag In Carton
Delivery Time:	2~30 Work days
Payment Terms:	T/T, Western Union, Paypal, L/C
Supply Ability:	20000 pcs Per Month

Contact Now

Detailed Product Description

Spindle Type:	BT40	OEM/ODM:	Yes
Product Type:	Conventional Hydraulic Tool Holder	Runout:	0.003mm
Balance:	Available	Cutting Type:	EndMilling, Reaming, Drilling
Material:	20CrNiMo	Application:	Making A Hole And Precision Finishing
Diameter:	20mm
Highlight:	mill tool holders , boring tool holder

Universal Hydraulic Collet Chuck Precision Tool Holders 20mm Clamp

Ⅰ. Features And Advantages

With 450nm moment of force, improve performance.
Drilling holes, Face Miling.
Run-out ≤ 0.003mm.
Good for finish machining.
High gripping accuracy.
Super Repeat Accuacy.
360 degree position clamping provides high rigidity.

Ⅱ. Technical Parametes

Product Name	CNC Hydraulic Tool Holder
Spindle Type	BT40
Clamping Range	3~16mm (diameter)
Runout	0.003mm
Processing Type	Milling, Face mill, Finishing machining, Hole making.
Product Material	Special steel
Hardness	HRC58~60°

Ⅲ. Product Introduction

CAD
Universal Hydraulic Collet Chuck Precision Tool Holders 20mm Clamp

Products List

Model Number	D1	D2	D3	L	L2max	L2min	V	Collet	G	Spanner	Type
BT30-HM20P-85	20	40	44	85	52.5	42.5	10	OHM20	M10*1.0	T4	Fig1
BT40-HM20P-72.5	20	40	44	72.5	52.5	42.5	10	OHM20	M10*1.0	T4	Fig1
BT50-HM32P-90	32	60	72	90	65	55	10	OHM32	M16*1.0	T5	Fig1

Ⅳ. Products Overview

BT40 Universal Lengthened Hydraulic Tool holder / Arbor.
Tool holder of BT/BBT/SK/CAT/HSK/ISO/NT/NBT for CNC Milling Machine.
Heat Shrink-Fit/Shrinking/Heat Expansion Tool Holders.
Threaded/Screw-on/Thread Screw Tool Holders.
Side Lock and Mirror Finishing Toolholders.
Morse Tap Adapter Tools Holder.
Face Milling Adapters/Cutter And Inserts
Torque Tap/Tapping Chuck.
Nuts/Pull stud/Bolt Blind rivet/Spindle taper wiper/Test bar/Tester.
ER/GER/SK/GER/Hydraulic/Back lock/Torque tapping/Collet.
Torque/Round/Circle Spanner Wrenche/Keys.
Edge finder/Tool Holder Tightening Fixture/Table.
Rapid Changing CNC Tool Bits.

Ⅴ. Shipment

By Sea; By Air;

By Train/Truck.

TNT, EMS, DHL.
UPS, FedEx.
Ⅵ. Packing

PE Bag.
Plastic Box.
Carton Box.
Other Materials

Slushing oil.
Adhesive Tape.
Packing Straps.
Ⅶ. Warehouse

1.   Arrange Delivery Within 2 days at soonest Afterat order and payment confirmed.
2.   Strict and Careful Inspection Before Delivering Goods to Our customers .
3.   Use Gauges For Examing Accuracy and Technical Factors.
4.   Super less error on delivering Goods and Items of Order,
