Product Details:
Payment & Shipping Terms:
|
| Spindle Type: | BT40 | OEM/ODM: | Yes |
|---|---|---|---|
| Product Type: | Economical Hydraulic Tool Holder | Runout: | 0.003mm |
| Balance: | G2.5 25000RPM | Material: | Special Steel |
| Collet Type: | OHM-Central Through Water | ||
| Highlight: | milling machine cutting tools,cnc lathe cutting tools |
||
CNC Cutting Tools Of BT40 Hydraulic Universal Tool Abor With Short Clamping
Ⅰ. Advantages
Ⅱ. Technical Parametes
Product Name | Short Shank Hydraulic Holder |
Spindle Type | BT40-EHM |
Clamping Range | 6/8/10/12//14/16/18/20/25/32 mm |
Beat accuracy | < 0.003mm |
Processing Type | Endmilling, Reaming, Drilling, Finishing |
Product Material | Special steel |
Hardness | HRC58~60° |

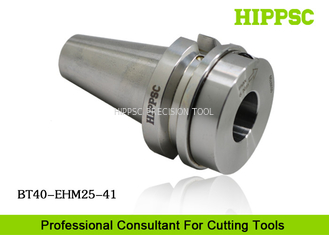

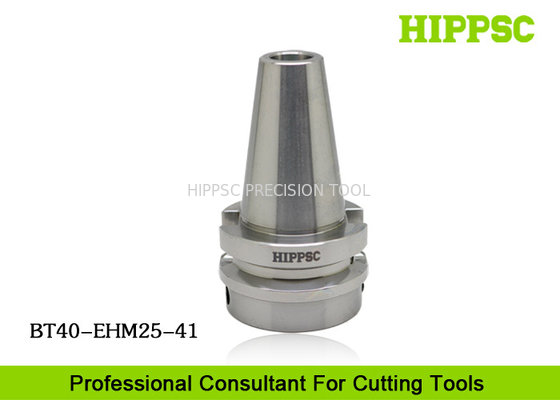

Ⅲ. Product Show
Products List
Model number | D1 | D2 | d | L1 | L2 | M |
|
|
BT30-EHM20-50 | 51.5 | 46 | 20 | 50 | 23 | M10*1.5 | OHM20 | T5 |
BT40-EHM20-41 | 51.5 | 63 | 20 | 41 | 14 | OHM20 | ||
BT40-EHM25-41 | 58 | 63 | 25 | 41 | 14 | / | ||
BT40-EHM32-65 | 68.5 | 63 | 32 | 65 | 38 | OHM32 | ||
BT50-EHM20-52 | 51.5 | 100 | 20 | 52 | 25 | OHM20 | ||
BT50-EHM25-52 | 58 | 100 | 25 | 52 | 25 | / | ||
BT50-EHM32-52 | 68.5 | 100 | 32 | 52 | 25 | OHM32 | ||
BT50-EHM40-58 | 86.5 | 100 | 40 | 58 | 31 | / | ||
BT50-EHM42-58 | 89 | 100 | 42 | 58 | 31 | / |
Economic and High Efficiency TYPE Hydraulic Arbors
Ⅳ. Products Overview
We usually ship the goods by-TNT, EMS, DHL, UPS, FedEx when the weight of order is not too big.
For mass order, transporation way of By Sea, By Air and By Train/Truck are available.
Ⅵ. Packing
First step- PE Bag.
Second- Plastic Box.
Third- Carton Box.
Custom is able to choose special packing way and material.
Ⅶ. Warehouse
In general, there are more than 100 thousands of stander tool holders in stock to ensure
a repid delivery to our customer's order.
Before the goods are being sent out, our inspectors will do strict and carefully examination in responsibility,
IQC and OQC always are excuted very well here.
Ⅷ. Warranty
1. We do care about products quality, we will offer repaire and replacement service if there is any defective product received by buyer.
2. For repairing and replacement service, it is possible that we will charge the buyer for transportation fees due to exact situation and need.
