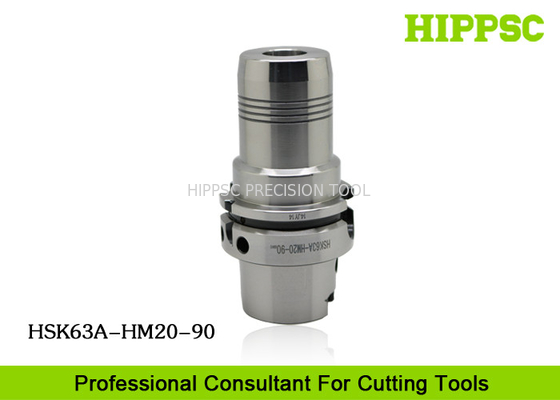

HSK63A Hydraulic Tool Holders Made Of Special Steel With Long Shank

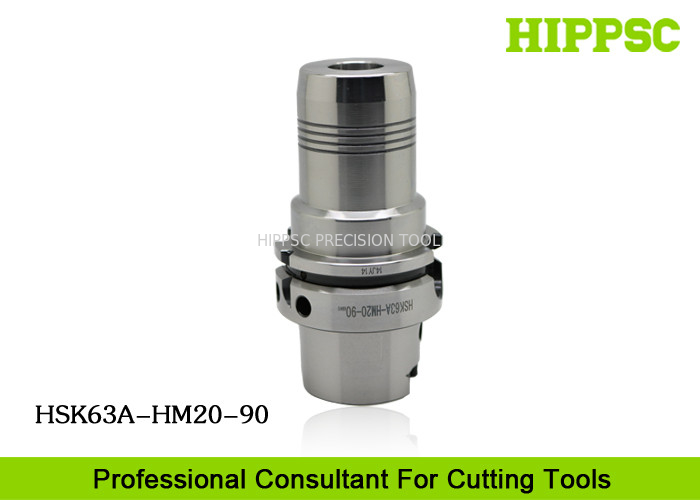

Large Image : HSK63A Hydraulic Tool Holders Made Of Special Steel With Long Shank

Product Details:

Place of Origin:	Dongguan, China
Brand Name:	HIPPSC
Certification:	ISO9001
Model Number:	HSK63A-HM20-90

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	Negotiable (Price term: EXW, FOB, CFR, CIF )
Packaging Details:	Plastic Box with Inner PE Bag In Carton
Delivery Time:	2~30 Work days
Payment Terms:	T/T, Western Union, Paypal, L/C
Supply Ability:	20000 pcs Per Month

Contact Now

Detailed Product Description

Spindle Type:	HSK63A	OEM Service:	Yes
Product Type:	Hydraulic Tool Holder	Runout:	Below 0.003μm
Cutting Type:	EndMilling, Reaming, Drilling	Material:	Alloy Steel
Application:	Precision And Finish Maching
Highlight:	machine tool holders , boring tool holder

HSK63A Hydraulic Tool Holders Alloy Steel Quick Changte With Heat Shrink

Ⅰ. Features

Run-out ≤ 0.003 μm.
Vibration dampening increase surface quality.
Super repeat accuacy.
360° and 2 positions for clamping tools, the rigidity is very well.
Superb moment of force.
Can be use to drilling, end mil, reaming.
Better surface quality than other type holders.

Ⅱ. Technical Parametes

Product Name	HSK63A Type Hydro Grip Tool Holder
Spindle Type	HSK63A
Clamping Range	6/8/10/12/16/20/25/32mm (diameter)
Precision accuracy	< 0.003 μm
Processing Type	Reaming, Endmilling, Drilling, Finishing
Product Material	Special steel
Hardness	HRC58~60°

Ⅲ. Products Show

CAD

HSK63A Hydraulic Tool Holders Made Of Special Steel With Long Shank

Products List

Model Number	D	D1	C	D4	L	L2max	L2min	L4	Collet	Spanner	G
HSK63A-HM6-70	6	25	28	50	70	37.5	27.5	44	-	T4	M5X0.8
HSK63A-HM8-70	8	27	30	50	70	37.5	27.5	44	-	T4	M6X1.0
HSK63A-HM10-80	10	29	32	50	80	42.5	32.5	54	-	T4	M8X1.0
HSK63A-HM12-85	12	31	34	50	85	47.5	37.5	59	OHM12	T4	M8X1.0
HSK63A-HM14-90	14	33	36	50	85	47.5	37.5	64	-	T4	M8X1.0
HSK63A-HM16-90	16	35	38	50	90	52.5	42.5	64	-	T4	M8X1.0
HSK63A-HM18-90	18	38	41	50	90	52.5	42.5	64	-	T4	M8X1.0
HSK63A-HM20-90	20	40	43	50	90	52.5	42.5	64	OHM20	T4	M10X1.0
HSK63A-HM25-120	25	53	57	63	120	57	47	94	-	T5	M16X1.0
HSK63A-HM32-125	32	60	64	75	125	61	51	99	OHM32	T5	M16X1.0
HSK63A-HM12-95	12	31	34	5	95	47.5	37.5	66	OHM12	T4	M8X1.0
HSK63A-HM20-105	20	40	43	50	105	52.5	42.5	76	OHM20	T4	M10X1.0
HSK63A-HM25-110	25	53	57	63	110	61	51	81	-	T5	M16X1.0
HSK63A-HM32-110	32	60	63	75	110	65	55	81	OHM32	T5	M16X1.0

Ⅳ. Products Overview

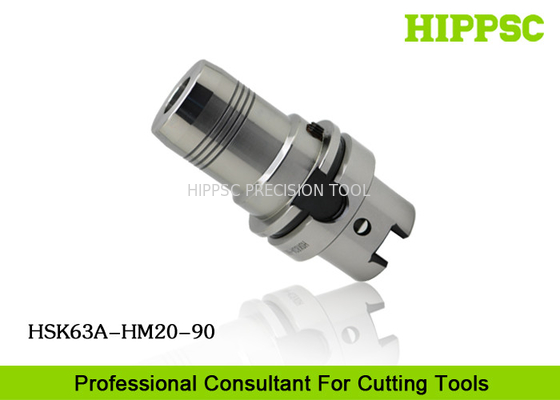

HSK63A Hydraulic Chuck With 20mm Grip Range And 90 Long.
Heat Shrink-Fit/Shrinking/Heat Expansion Tool Holders.
Thread screw contacted CNC cutting tools.
Morse Taper Chucks.
Torque Tapping Collet and Chuck.
ER/GER/SK/GER/Hydraulic/Back lock/Collet.
Torque/Round/Circle Spanner Wrenche/Keys.
Edge finder/Tool Holder Tightening Fixture/Table.
CNC Indexable Inserts.
Quick changte CNC Cutter Head

Ⅴ. Shipment

By Ship; By Air; By Train/Truck.

TNT, EMS, DHL, UPS, FedEx.
Customer Advice Available.

Ⅵ. Packing

Could be customized with customer's requirement.

Ⅶ. Warehouse

We always forcus on in-time delivery, ensure customer receive the goods as expected.
Our special department is responsible for inspecting goods before sendind out.
Standard Gauges to arrange quality control.
<1% error on delivering Goods and Items of Order.

Ⅷ. Warranty

High Accuracy Equipments and Technology, Experienced Workers.
Custom Made Service, Professional suggestions.
Customer can find any products relating CNC Cutting here.
Warranty 12 Months, Free Repairing Service.
Best Service, Considerate and Sincere.
