| Spindle Type: | SK40 (DAT, JT, DV, DIN6987) | Customized Service: | Available |
|---|---|---|---|
| Product Type: | Hydraulic Tool Holder | Runout: | Below 0.003μm |
| Cutting Type: | EndMilling, Reaming, Drilling | Material: | Special Steel |
| Application: | Finishing And Milling. | ||
| Highlight: | milling machine cutting tools,cnc milling cutters |
||

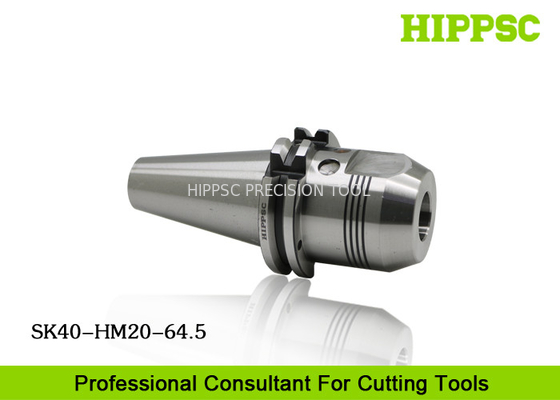

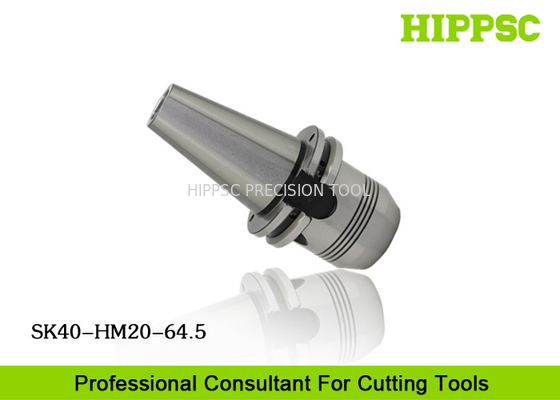

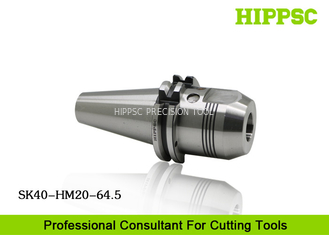

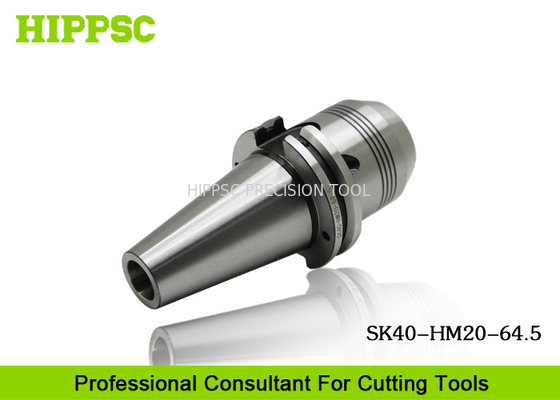

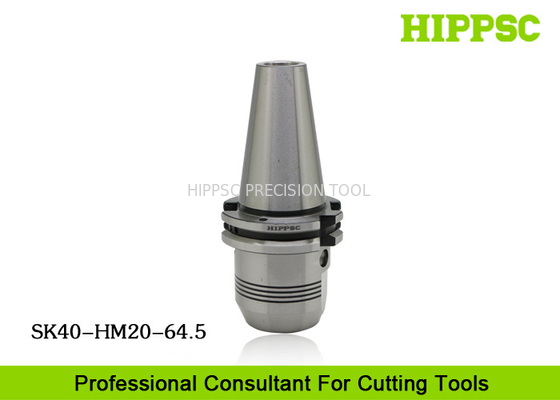

SK40 HM20 Hydraulic Tool Holder With Strong Clamp Suitable For Milling Work
Ⅰ. Features
Ⅱ. Technical Parametes
|
Product Name |
SK/DIN6987 Hydraulic Tool Holder |
|
Spindle Type |
SK40 |
|
Clamping Range |
6/8/10/12/16/20/25/32 mm (d) |
|
Beat accuracy |
≤ 0.003 μm |
|
Processing Type |
Hole making, Reaming, Drilling, Finishing |
|
Product Material |
Special steel |
|
Hardness |
HRC58~60° |
| Accessory | Collet, Spanner, Screw, Lock Ficture |
Ⅲ. Product Show
CAD
The Below Items Are Usualy With Regular Stock:
| Model Number | D1 | D2 | D3 | D4 | L | L2 Max | L2 Min | V | L3 | Collet | Spanner | G |
| SK40-HM6-80.5 | 6 | 25 | 28 | 50 | 80.5 | 37.5 | 27.5 | 10 | 44 | – | M5X0.8 | |
| SK40-HM8-80.5 | 8 | 27 | 30 | 50 | 80.5 | 37.5 | 27.5 | 10 | 44 | -- | M6X1 | |
| SK40-HM10-80.5 | 10 | 29 | 32 | 50 | 80.5 | 42.5 | 32.5 | 10 | 44 | -- | M8X1 | |
| SK40-HM12-80.5 | 12 | 31 | 34 | 50 | 80.5 | 47.5 | 37.5 | 10 | 44 | OHM12 | M8X1 | |
| SK40-HM14-80.5 | 14 | 33 | 36 | 50 | 80.5 | 47.5 | 37.5 | 10 | 44 | -- | M10X1 | |
| SK40-HM16-80.5 | 16 | 35 | 38 | 50 | 80.5 | 52.5 | 42.5 | 10 | 48 | -- | M10X1 | |
| SK40-HM18-80.5 | 18 | 38 | 41 | 50 | 80.5 | 52.5 | 42.5 | 10 | 48 | -- | M10X1 | |
| SK40-HM20-80.5 | 20 | 40 | 44 | 50 | 80.5 | 52.5 | 42.5 | 10 | 48 | OHM20 | M10X1 | |
| SK40-HM25-80.5 | 25 | 53 | 65 | 66 | 80.5 | 61 | 51 | 10 | 22 | -- | M16X1 | |
| SK40-HM32-80.5 | 32 | 60 | 63 | 80 | 80.5 | 65 | 55 | 10 | 26 | OHM32 | M16X1 | |
| SK50-HM6-90 | 6 | 25 | 28 | 50 | 90 | 37.5 | 27.5 | 10 | 30 | -- | M5X0.8 | |
| SK50-HM8-90 | 8 | 27 | 30 | 50 | 90 | 37.5 | 27.5 | 10 | 30 | -- | M6X1 | |
| SK50-HM10-90 | 10 | 29 | 32 | 50 | 90 | 42.5 | 32.5 | 10 | 30 | -- | M8X1 | |
| SK50-HM12-90 | 12 | 31 | 34 | 50 | 90 | 47.5 | 37.5 | 10 | 30 | OHM12 | M8X1 | |
| SK50-HM14-90 | 14 | 33 | 36 | 50 | 90 | 47.5 | 37.5 | 10 | 30 | -- | M8X1 | |
| SK50-HM16-90 | 16 | 35 | 38 | 50 | 90 | 52.5 | 42.5 | 10 | 30 | -- | M10X1 | |
| SK50-HM18-90 | 18 | 38 | 41 | 50 | 90 | 52.5 | 42.5 | 10 | 30 | -- | M10X1 | |
| SK50-HM20-90 | 20 | 40 | 43 | 50 | 90 | 52.5 | 42.5 | 10 | 34 | OHM20 | M10X1 | |
| SK50-HM25-90 | 25 | 53 | 57 | - | 90 | 52.5 | 42.5 | 10 | 85.9 | -- | M16X1 | |
| SK50-HM32-115 | 32 | 60 | 63 | - | 115 | 65 | 55 | 10 | 95.9 | OHM32 | M16X1 |
