Quick Change Hydraulic Tool Holder SK40 - HM32 - 82.5 DIN6987

China Quick Change Hydraulic Tool Holder SK40 - HM32 - 82.5 DIN6987 supplier
Quick Change Hydraulic Tool Holder SK40 - HM32 - 82.5 DIN6987 supplier Quick Change Hydraulic Tool Holder SK40 - HM32 - 82.5 DIN6987 supplier Quick Change Hydraulic Tool Holder SK40 - HM32 - 82.5 DIN6987 supplier Quick Change Hydraulic Tool Holder SK40 - HM32 - 82.5 DIN6987 supplier

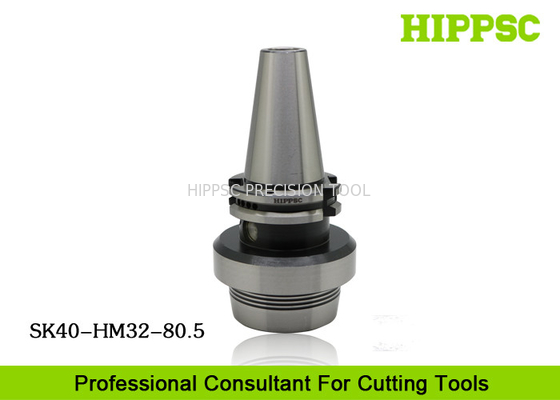

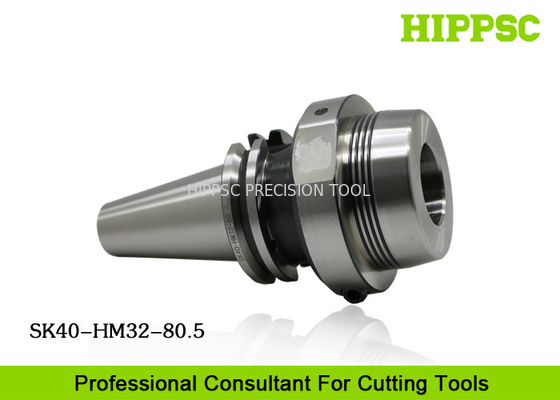

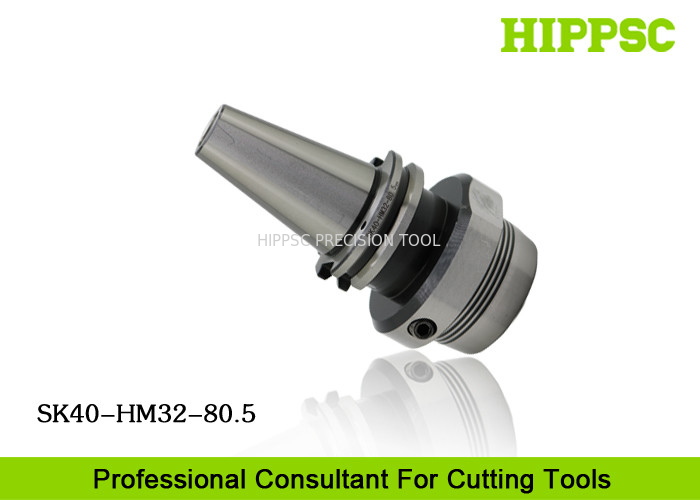

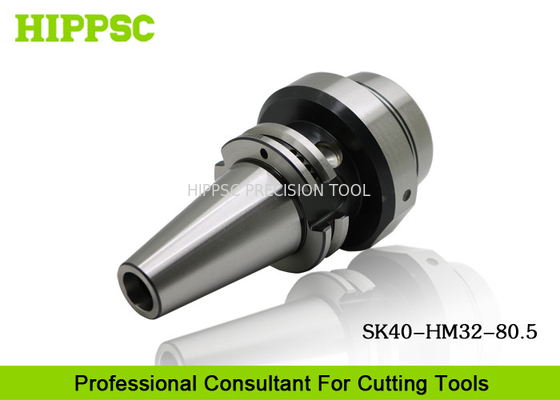

Large Image :  Quick Change Hydraulic Tool Holder SK40 - HM32 - 82.5 DIN6987

Product Details:

Place of Origin: Dongguan, China
Brand Name: HIPPSC
Certification: ISO9001
Model Number: SK40-HM32-80.5

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiable (Price term: EXW, FOB, CFR, CIF )
Packaging Details: Plastic Box with Inner PE Bag In Carton
Delivery Time: 2~30 Work days
Payment Terms: T/T, Western Union, Paypal, L/C
Supply Ability: 20000 pcs Per Month
Contact Now
Detailed Product Description
Spindle Type: SK40 (DIN6987, DAT,JT, DV) Custom Made: Available
Product Type: Hydraulic Tool Holder Runout: Below 0.003μm
Cutting Type: EndMilling, Reaming, Drilling, Milling Material: Special Steel
Application: Precision Finishing And Rough Machining
Highlight:

mill tool holders

,

boring tool holder

Quick Change Hydraulic Tool Holder SK40 - HM32 - 82.5 DIN6987





Ⅰ​. Features

  1. Hydraulic Tool Holder Is Usually Used On Drilling, Miling, Reaming.
  2. Hydraulic Expansion System Offer-Runout ≤ 0.003 μm.
  3. It Can Meet Your Requirements Of Finishing And Rough Maching.
  4. The Vibration Dampening Increases Surface Quality.
  5. Stable Repeat Accuacy.
  6. 360 Degree And 2 Positions Of Clamping, Improve Rigidity.
  7. The System Produces Suitable Moment of force.

Ⅱ. Technical Parametes ​



Product Name

SK40 Hydraulic Tool Holder

Spindle Type

SK, DIN6987, JT, DAT, DV

Clamping Range

6/8/10/12/16/20/25/32 mm (diameter)

Beat accuracy

≤ 0.003 μm

Processing Type

Finishing and rough maching.

Product Material

Special steel

Hardness

HRC58~60°


Ⅲ. Product Show


CAD

Quick Change Hydraulic Tool Holder SK40 - HM32 - 82.5 DIN6987




Products List



Model Number D1 D2 D3 D4 L L2 Max L2 Min V L3 Collet Spanner G
SK40-HM6-80.5 6 25 28 50 80.5 37.5 27.5 10 44 – 　 M5X0.8
SK40-HM8-80.5 8 27 30 50 80.5 37.5 27.5 10 44 -- 　 M6X1
SK40-HM10-80.5 10 29 32 50 80.5 42.5 32.5 10 44 -- 　 M8X1
SK40-HM12-80.5 12 31 34 50 80.5 47.5 37.5 10 44 OHM12 　 M8X1
SK40-HM14-80.5 14 33 36 50 80.5 47.5 37.5 10 44 -- 　 M10X1
SK40-HM16-80.5 16 35 38 50 80.5 52.5 42.5 10 48 -- 　 M10X1
SK40-HM18-80.5 18 38 41 50 80.5 52.5 42.5 10 48 -- 　 M10X1
SK40-HM20-80.5 20 40 44 50 80.5 52.5 42.5 10 48 OHM20 　 M10X1
SK40-HM25-80.5 25 53 65 66 80.5 61 51 10 22 -- 　 M16X1
SK40-HM32-80.5 32 60 63 80 80.5 65 55 10 26 OHM32 　 M16X1
SK50-HM6-90 6 25 28 50 90 37.5 27.5 10 30 -- 　 M5X0.8
SK50-HM8-90 8 27 30 50 90 37.5 27.5 10 30 -- 　 M6X1
SK50-HM10-90 10 29 32 50 90 42.5 32.5 10 30 -- 　 M8X1
SK50-HM12-90 12 31 34 50 90 47.5 37.5 10 30 OHM12 　 M8X1
SK50-HM14-90 14 33 36 50 90 47.5 37.5 10 30 -- 　 M8X1
SK50-HM16-90 16 35 38 50 90 52.5 42.5 10 30 -- 　 M10X1
SK50-HM18-90 18 38 41 50 90 52.5 42.5 10 30 -- 　 M10X1
SK50-HM20-90 20 40 43 50 90 52.5 42.5 10 34 OHM20 　 M10X1
SK50-HM25-90 25 53 57 -  90 52.5 42.5 10 85.9 -- 　 M16X1
SK50-HM32-115 32 60 63 -  115 65 55 10 95.9 OHM32 　 M16X1


Ⅳ. Products Overview


  1. SK40-HM32-82.5 Hydraulic Expansion Chuck.
  2. Hydro Expansion Tool holder of BT/SK/HSK.
  3. Heat Shrink-Fit/Shrinking/Heat Expansion Tool Holders.
  4. Threaded/Screw-on/Thread Screw Tool Holders.
  5. Back Lock/Side Lock Toolholders.
  6. Morse Tap AdapterTools Holder.
  7. Torque Tap/Tapping Chuck.
  8. ER/GER/SK/GER/Hydraulic/Slim Pull Type/Torque tapping/ Collet.
  9. Torque/Round/Circle Spanner Wrenche/Keys.
  10. Edge finder/Tool Holder Lock Fixture.
  11. CNC Indexable Cutting Tools.
  12. Quick Change CNC Tool Bits.



Ⅴ​. Shipment​


We accept transportation ways

By Sea; By Air; By Train/Truck

TNT, EMS, DHL, UPS, FedEx.

Ⅵ. Packing Material

  • Inner PE Bag.
  • Plastic Box.
  • Carton Box.

Other Materials

  • Slushing oil.
  • Adhesive Tape.
  • Packing Straps.


Ⅶ. Warehouse


  1. Arrange Delivery Within 2 days at soonest After order and payment is received.
  2. Strict and Careful Inspection Before Delivering Goods to Our customers .
  3. Use Professional Test Gauge For Examing Accuracy and Technical Geometries.
  4. Super less error on delivering goods of customer order.



Photo Show
Quick Change Hydraulic Tool Holder SK40 - HM32 - 82.5 DIN6987

Ⅷ. Warranty


  • High Accuracy Equipments and Technology, Experienced Workers.
  • Custom Made Service,  Professional suggestions.
  • Customer can find any products relating CNC Cutting here.
  • Warranty 12 Months, Free Repairing Service.
  • We Offer Best Service, Considerate and Sincere.
