SK50 CNC Milling Machine Tool Holders Hydraulic Expansion Mandrels

China SK50 CNC Milling Machine Tool Holders Hydraulic Expansion Mandrels supplier
SK50 CNC Milling Machine Tool Holders Hydraulic Expansion Mandrels supplier SK50 CNC Milling Machine Tool Holders Hydraulic Expansion Mandrels supplier SK50 CNC Milling Machine Tool Holders Hydraulic Expansion Mandrels supplier SK50 CNC Milling Machine Tool Holders Hydraulic Expansion Mandrels supplier

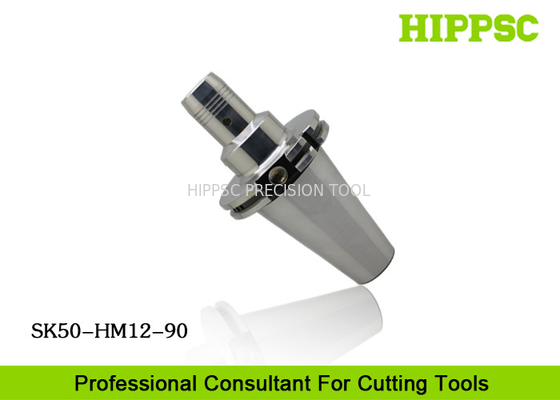

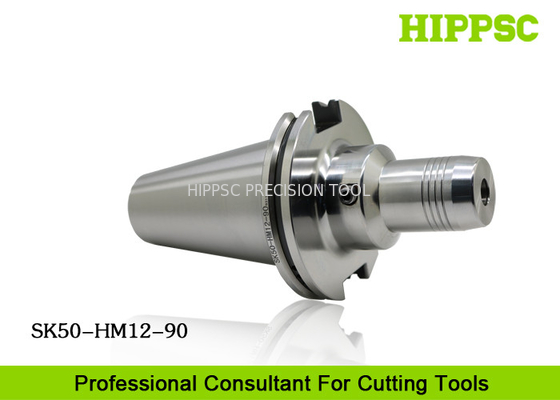

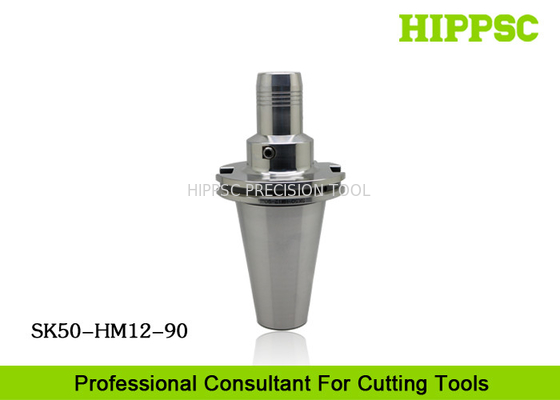

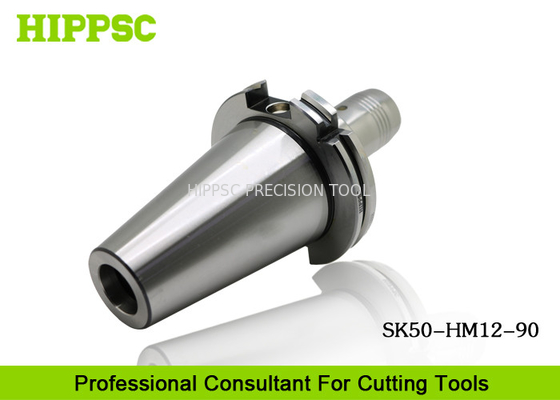

Large Image :  SK50 CNC Milling Machine Tool Holders Hydraulic Expansion Mandrels

Product Details:

Place of Origin: Dongguan, China
Brand Name: HIPPSC
Certification: ISO9001
Model Number: SK50-HM12-90

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiable (Price term: EXW, FOB, CFR, CIF )
Packaging Details: Plastic Box with Inner PE Bag In Carton
Delivery Time: 2~30 Work days
Payment Terms: T/T, Western Union, Paypal, L/C
Supply Ability: 20000 pcs Per Month
Contact Now
Detailed Product Description
Spindle Type: SK50 (DAT, DIN6987, DV, JT) Product Type: Hydraulic Arbor
Runout: Below 0.003μm Cutting Type: EndMilling, Reaming, Drilling
Material: Special Steel Application: Milling Maching And CNC Drill Lathe
Customer Logo: Acceptable
Highlight:

mill tool holders

,

boring tool holder

SK50 CNC Milling Machine Tool Holders Hydraulic Expansion Mandrels



Ⅰ​. Features

  1. Drilling, Endmiling, Reaming.
  2. Run-out ≤ 0.003mm at 4X D.
  3. Vibration Dampening increase surface quality.
  4. Super Repeat Accuacy.
  5. 360 Fully and balanced grip the cutters.
  6. Nice Moment of force.



Ⅱ. Technical Parametes ​


Product Name

Hydraulic Tool Holder

Spindle Type

SK50

Clamping Range

6/8/10/12/16/20/25/32 mm (diameter)

Beat accuracy

≤ 0.003 mm

Processing Type

Endmilling, Reaming, Drilling, Finishing

Product Material

Special steel

Hardness

HRC58~60°




Ⅲ. All Available Items


SK50 CNC Milling Machine Tool Holders Hydraulic Expansion Mandrels

Products Specification

Model Number D1 D2 D3 D4 L L2 Max L2 Min V L3 Collet
SK40-HM6-80.5 6 25 28 50 80.5 37.5 27.5 10 44 –
SK40-HM8-80.5 8 27 30 50 80.5 37.5 27.5 10 44 --
SK40-HM10-80.5 10 29 32 50 80.5 42.5 32.5 10 44 --
SK40-HM12-80.5 12 31 34 50 80.5 47.5 37.5 10 44 OHM12
SK40-HM14-80.5 14 33 36 50 80.5 47.5 37.5 10 44 --
SK40-HM16-80.5 16 35 38 50 80.5 52.5 42.5 10 48 --
SK40-HM18-80.5 18 38 41 50 80.5 52.5 42.5 10 48 --
SK40-HM20-80.5 20 40 44 50 80.5 52.5 42.5 10 48 OHM20
SK40-HM25-80.5 25 53 65 66 80.5 61 51 10 22 --
SK40-HM32-80.5 32 60 63 80 80.5 65 55 10 26 OHM32
SK50-HM6-90 6 25 28 50 90 37.5 27.5 10 30 --
SK50-HM8-90 8 27 30 50 90 37.5 27.5 10 30 --
SK50-HM10-90 10 29 32 50 90 42.5 32.5 10 30 --
SK50-HM12-90 12 31 34 50 90 47.5 37.5 10 30 OHM12
SK50-HM14-90 14 33 36 50 90 47.5 37.5 10 30 --
SK50-HM16-90 16 35 38 50 90 52.5 42.5 10 30 --
SK50-HM18-90 18 38 41 50 90 52.5 42.5 10 30 --
SK50-HM20-90 20 40 43 50 90 52.5 42.5 10 34 OHM20
SK50-HM25-90 25 53 57 -  90 52.5 42.5 10 85.9 --
SK50-HM32-115 32 60 63 -  115 65 55 10 95.9 OHM32


Ⅳ. Products Overview


  1. SK50 Hydraulic Chuck.
  2. Hydro Expansion Tool holder of BT/SK/HSK.
  3. Shrink-Fit/ShrinkingTool Holders.
  4. Threaded/Screw-on/Thread Screw Tool Holders.
  5. Back Lock/Side Lock and Mirror Finishing​ Toolholders.
  6. Morse Tap AdapterTools Holder.
  7. ER/GER/SK/GER/Hydraulic/Slim shank/Torque tapping/Collet.
  8. Torque/Round/Circle Spanner Wrenche/Keys.
  9. Edge finder/Tool Holder Tightening Fixture/Table.
  10. CNC Indexable Cutting Tools.
  11. Rapid Changing CNC Tool Bits.



Ⅴ​. Shipment​

SK50 CNC Milling Machine Tool Holders Hydraulic Expansion Mandrels

By Ocean; By plane; Land transportation.


International Express-TNT, EMS, DHL, UPS, FedEx.

Ⅵ. Packing



  • PE Bag.
  • Plastic Box.
  • Carton Box.
  • Slushing oil.
  • Adhesive Tape.
  • Packing Straps.


Ⅶ. Warehouse


  1. Arrange Delivery at soonest After we receive order and payment.
  2. Strict and Careful Inspection will be made before delivering goods.
  3. Use Gauges For Examing Accuracy and Technical Factors.
  4. Super less error on delivering Goods and Items of Order.

Ⅷ. Warranty


  • We Have High Precision Equipments and, Experienced Workers.
  • Provide Custom Made Service,  And We Give Professional Suggestion As Need.
  • Customer can find any products relating CNC Cutting here.
  • Warranty 12 Months, Free Repairing Service.
  • Best Service, Considerate and Sincere.
