Milling Threading Tool Holder For CNC Machining, Carbide Insert Tool Holder

China Milling Threading Tool Holder For CNC Machining, Carbide Insert Tool Holder supplier
Milling Threading Tool Holder For CNC Machining, Carbide Insert Tool Holder supplier Milling Threading Tool Holder For CNC Machining, Carbide Insert Tool Holder supplier

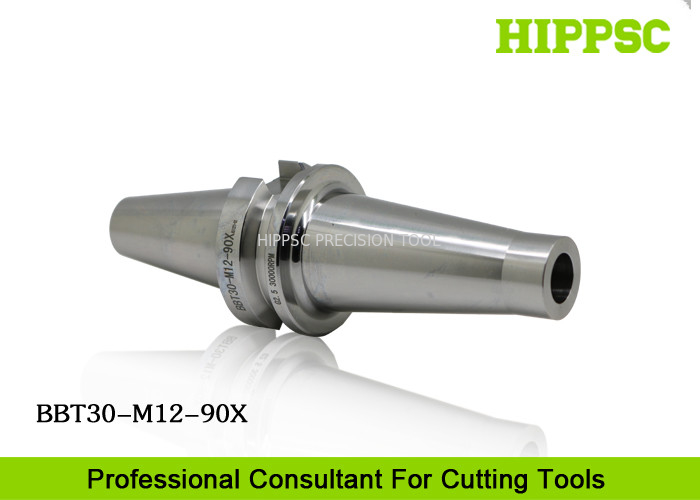

Large Image :  Milling Threading Tool Holder For CNC Machining, Carbide Insert Tool Holder

Product Details:

Place of Origin: Dongguan, China
Brand Name: HIPPSC
Certification: ISO9001
Model Number: BBT30-M12-90X

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiable (Price term: EXW, FOB, CFR, CIF )
Packaging Details: Plastic Box with Inner PE Bag In Carton
Delivery Time: 2~30 Work days
Payment Terms: T/T, Western Union, Paypal, L/C
Supply Ability: 20000 pcs Per Month
Contact Now
Detailed Product Description
Cutting Type: EndMilling, Reaming, Drilling Spindle Type: BBT30
Material: 20CrNiMo Application: Semi Precision Finishing
Customized Service: Available Product Type: Theading Tool Holder
Runout: 3μm
Highlight:

cnc mill tool holders

,

cnc machine tool holders

Milling Threading Tool Holder For CNC Machining, Carbide Insert Tool Holder



Ⅰ​. Features

  1. Threaded cutter head and the tungsten steel cutting tool are both suitable.
  2. Lock tools through screw tooth, easy and high efficient.
  3. Rigidity is very high, cutting speed is fast.
  4. Wide applications, fits for most kinds of quick change tools.


Ⅱ. Technical Parametes ​



Product Name

Threading Tool Holder

Spindle Type

BBT30

Screw hole size

M12

Beat accuracy

3μm

Processing Type

Endmilling, Reaming, Drilling, Finishing

Product Material

20CrNiMo

Hardness

HRC58~60°
Taper tolerance AT3

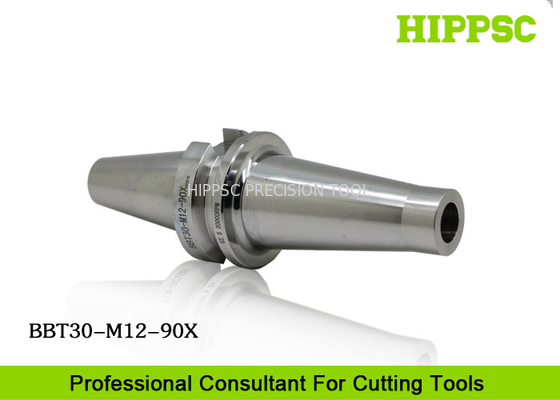

Ⅲ. Product Show




Milling Threading Tool Holder For CNC Machining, Carbide Insert Tool Holder

Available Standard Items<

Model Number L1 L2 D1 d M α
BBT30-M08-60 60 12 12.8 8.5 M8 7°
BBT30-M08H-60 60 12 15.4 8.5 M8 7°
BBT30-M08-90 90 12 12.8 8.5 M8 7°
BBT30-M08H-90 90 12 15.4 8.5 M8 7°
BBT30-M10S-60 60 12 15.4 10.5 M10 7°
BBT30-M10-60 60 12 17.8 10.5 M10 7°
BBT30-M10S-90 90 12 15.4 10.5 M10 7°
BBT30-M10-90 90 12 17.8 10.5 M10 7°
BBT30-M12-60 60 12 20.8 12.5 M12 6°
BBT30-M12H-60 60 12 23 12.5 M12 6°
BBT30-M12-90 90 12 20.8 12.5 M12 6°
BBT30-M12H-90 90 12 23 12.5 M12 6°
BBT30-M16-60 60 12 28.8 17 M16 6°
BBT30-M16H-60 60 12 38 17 M16 6°
BBT30-M16-90 90 12 28.8 17 M16 6°
BBT30-M16H-90 90 12 38 17 M16 3°
BBT30-M08-60 60 12 12.8 8.5 M8 7°
BBT30-M08H-60 60 12 15.4 8.5 M8 7°
BBT30-M08-90 90 12 12.8 8.5 M8 7°
BBT30-M08H-90 90 12 15.4 8.5 M8 7°
BBT30-M10S-60 60 12 15.4 10.5 M10 7°
BBT30-M10-60 60 12 17.8 10.5 M10 7°
BBT30-M10S-90 90 12 15.4 10.5 M10 7°
BBT30-M10-90 90 12 17.8 10.5 M10 7°
BBT30-M12-60 60 12 20.8 12.5 M12 6°
BBT30-M12H-60 60 12 23 12.5 M12 6°
BBT30-M12-90 90 12 20.8 12.5 M12 6°
BBT30-M12H-90 90 12 23 12.5 M12 6°
BBT30-M16-60 60 12 28.8 17 M16 6°
BBT30-M16H-60 60 12 38 17 M16 6°
BBT30-M16-90 90 12 28.8 17 M16 6°
BBT30-M16H-90 90 12 38 17 M16 3°


Ⅳ. Products Overview


  1. BBT30 Threading Tool Holder.
  2. Hydraulic Expansion Chucks.
  3. Shrink-Fit/Heat Shrinking/Heat Expansion Toolholder.
  4. Threaded/Screw-on/Thread Screw Tool Holders.
  5. Back Lock/Side Lock and Mirror Finishing​ Toolholders.
  6. Morse Tap AdapterTools Holder.
  7. Torque Tap/Tapping Chuck.
  8. ER/GER/SK/GER/Hydraulic/Pull type/Torque tap Collet.
  9. Torque/Round/Circle Spanner Wrenche/Keys.
  10. Edge finder/Tool Holder Tightening Fixture/Table.
  11. CNC Indexable Cutting Inserts.
  12. Quick Change CNC Tool Bits.



Ⅴ​. Transportation​


Milling Threading Tool Holder For CNC Machining, Carbide Insert Tool Holder


Ⅵ. Packing


PE Bag.
Plastic Box.
Carton Box.

Other Materials


Slushing oil.
Adhesive Tape.
Packing Straps.

Ⅶ. Warehouse


  1. Arrange Delivery  Within 2 days at soonest after orders are received.
  2. Strict and Careful Inspection Before Delivering Goods to Our customers .
  3. We Use Advanced Instruments To Exam Accuracy And Technical Data.
  4. For all standard items, there will be always enough stock for in-time delivery. For some
    urgent order,  we will do our best to achieve it.

Ⅷ. Warranty


  • High Precision Advanced Equipments and Technology.
  • Custom Made Service,  Professional suggestions.
  • Warranty 12 Months, Free Repairing Service.
  • Best After Sales Service.
