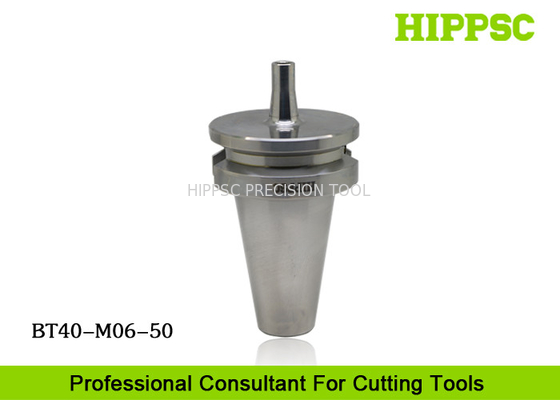

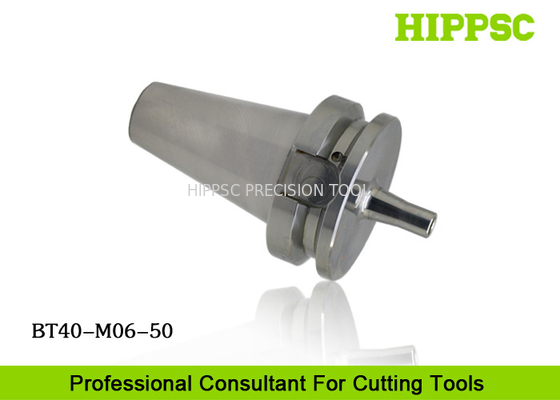

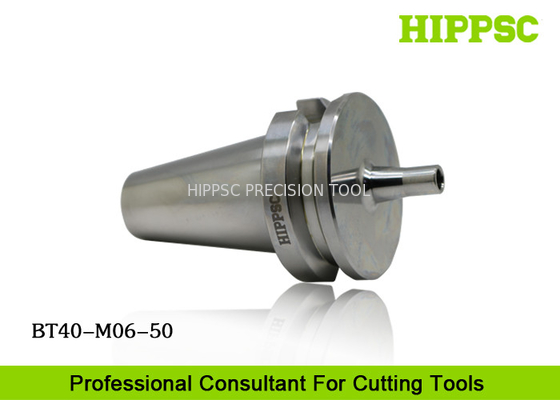

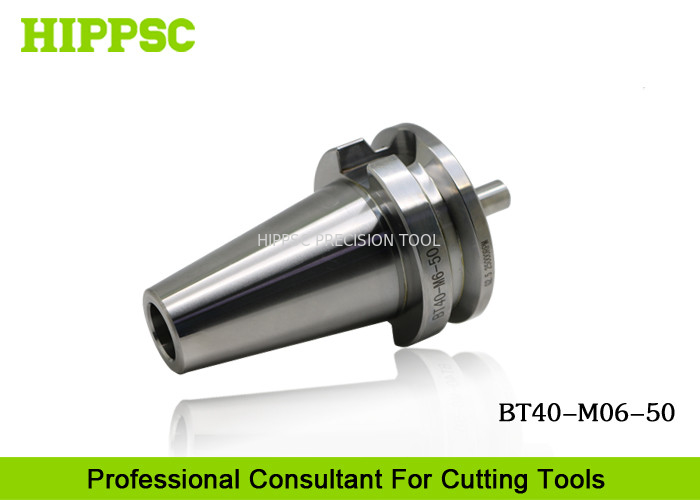

MAS BT40 Threading Tool Holder 3μm Runout Two Sides Contacting

China MAS BT40 Threading Tool Holder 3μm Runout Two Sides Contacting supplier
MAS BT40 Threading Tool Holder 3μm Runout Two Sides Contacting supplier MAS BT40 Threading Tool Holder 3μm Runout Two Sides Contacting supplier MAS BT40 Threading Tool Holder 3μm Runout Two Sides Contacting supplier MAS BT40 Threading Tool Holder 3μm Runout Two Sides Contacting supplier

Large Image :  MAS BT40 Threading Tool Holder 3μm Runout Two Sides Contacting

Product Details:

Place of Origin: Dongguan, China
Brand Name: HIPPSC
Certification: ISO9001
Model Number: BT40-M06-50

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiable (Price term: EXW, FOB, CFR, CIF )
Packaging Details: Plastic Box with Inner PE Bag In Carton
Delivery Time: 2~30 Work days
Payment Terms: T/T, Western Union, Paypal, L/C
Supply Ability: 20000 pcs Per Month
Contact Now
Detailed Product Description
Spindle Type: BT40 Customized Service: Available
Product Type: Theading Tool Holder Runout: 3μm
Cutting Type: EndMilling, Reaming, Drilling Material: Special Steel
Application: Semi Precision Finishing
Highlight:

CNC Cutting Tool Holder

,

cnc machine tool holders

MAS BT40 Threading Tool Holder 3μm Runout Two Sides Contacting



Ⅰ​. Features

  1. Adapt to threaded cutter head and tungsten steel cutting tools.
  2. Locking tools by thread bolt, simple and convenient.
  3. It has nice rigidity, cutting fast and efficient.
  4. Wide range of applications, suits for many kinds of quick change tools.


Ⅱ. Technical Parametes ​



Product Name

Threading Tool Holder

Spindle Type

MAS BT40

Screw hole size

M6

Beat accuracy

<0.003mm

Processing Type

Endmilling, Reaming, Drilling, Finishing

Product Material

Special steel

Hardness

HRC58~60°


Ⅲ. Product Show


Diagram
MAS BT40 Threading Tool Holder 3μm Runout Two Sides Contacting

Available Standard Items



Model No. L1 L2 D1 d M α
BT40-M08-60 60 12 12.8 8.5 M08 7°
BT40-M08H-60 60 12 15.4 8.5 M08 7°
BT40-M08-90 90 12 12.8 8.5 M08 7°
BT40-M08H-90 90 12 15.4 8.5 M08 7°
BT40-M08-110 110 12 12.8 8.5 M08 7°
BT40-M08H-110 110 12 15.4 8.5 M08 7°
BT40-M08-135 135 12 12.8 8.5 M08 7°
BT40-M08H-135 135 12 15.4 8.5 M08 7°
BT40-M10S-60 60 12 15.4 10.5 M10 7°
BT40-M10-60 60 12 17.8 10.5 M10 7°
BT40-M10S-90 90 12 15.4 10.5 M10 7°
BT40-M10-90 90 12 17.8 10.5 M10 7°
BT40-M10S-110 110 12 15.4 10.5 M10 7°
BT40-M10-110 110 12 17.8 10.5 M10 7°
BT40-M10S-135 135 12 15.4 10.5 M10 7°
BT40-M10-135 135 12 17.8 10.5 M10 7°
BT40-M12-60 60 12 20.8 12.5 M12 6°
BT40-M12H-60 60 12 23 12.5 M12 6°
BT40-M12-90 90 12 20.8 12.5 M12 6°
BT40-M12H-90 90 12 23 12.5 M12 6°
BT40-M12-110 110 12 20.8 12.5 M12 6°
BT40-M12H-110 110 12 23 12.5 M12 6°
BT40-M12-135 135 12 20.8 12.5 M12 6°
BT40-M12H-135 135 12 23 12.5 M12 6°
BT40-M16-60 60 12 28.8 17 M16 6°
BT40-M16H-60 60 12 38 17 M16 6°
BT40-M16-90 90 12 28.8 17 M16 6°
BT40-M16H-90 90 12 38 17 M16 3°
BT40-M16-110 110 12 28.8 17 M16 6°
BT40-M16-135 135 12 28.8 17 M16 6°
BT30-M08-60 60 12 12.8 8.5 M8 7°
BT30-M08H-60 60 12 15.4 8.5 M8 7°
BT30-M08-90 90 12 12.8 8.5 M8 7°
BT30-M08H-90 90 12 15.4 8.5 M8 7°
BT30-M08-110 110 12 12.8 8.5 M8 7°
BT30-M08H-110 110 12 15.4 8.5 M8 7°
BT30-M08-135 135 12 12.8 8.5 M8 7°
BT30-M08H-135 135 12 15.4 8.5 M8 7°
BT30-M10S-60 60 12 15.4 10.5 M10 7°
BT30-M10-60 60 12 17.8 10.5 M10 7°
BT30-M10S-90 90 12 15.4 10.5 M10 7°
BT30-M10-90 90 12 17.8 10.5 M10 7°
BT30-M10S-110 110 12 15.4 10.5 M10 7°
BT30-M10-110 110 12 17.8 10.5 M10 7°
BT30-M10S-135 135 12 15.4 10.5 M10 7°
BT30-M10-135 135 12 17.8 10.5 M10 7°
BT30-M12-60 60 12 20.8 12.5 M12 6°
BT30-M12H-60 60 12 23 12.5 M12 6°
BT30-M12-90 90 12 20.8 12.5 M12 6°
BT30-M12H-90 90 12 23 12.5 M12 6°
BT30-M12-110 110 12 20.8 12.5 M12 6°
BT30-M12H-110 110 12 23 12.5 M12 6°
BT30-M12-135 135 12 20.8 12.5 M12 6°
BT30-M12H-135 135 12 23 12.5 M12 6°
BT30-M16-60 60 12 28.8 17 M16 6°
BT30-M16-90 90 12 28.8 17 M16 6°
BT50-M08-60 60 12 12.8 8.5 M08 7°
BT50-M08H-60 60 12 15.4 8.5 M08 7°
BT50-M08-90 90 12 12.8 8.5 M08 7°
BT50-M08H-90 90 12 15.4 8.5 M08 7°
BT50-M08-110 110 12 12.8 8.5 M08 7°
BT50-M08H-110 110 12 15.4 8.5 M08 7°
BT50-M08-135 135 12 12.8 8.5 M08 7°
BT50-M08H-135 135 12 15.4 8.5 M08 7°
BT50-M10S-60 60 12 15.4 10.5 M10 7°
BT50-M10-60 60 12 17.8 10.5 M10 7°
BT50-M10S-90 90 12 15.4 10.5 M10 7°
BT50-M10-90 90 12 17.8 10.5 M10 7°
BT50-M10S-110 110 12 15.4 10.5 M10 7°
BT50-M10-110 110 12 17.8 10.5 M10 7°
BT50-M10S-135 135 12 15.4 10.5 M10 7°
BT50-M10-135 135 12 17.8 10.5 M10 7°
BT50-M12-60 60 12 20.8 12.5 M12 6°
BT50-M12H-60 60 12 23 12.5 M12 6°
BT50-M12-90 90 12 20.8 12.5 M12 6°
BT50-M12H-90 90 12 23 12.5 M12 6°
BT50-M12-110 110 12 20.8 12.5 M12 6°
BT50-M12H-110 110 12 23 12.5 M12 6°
BT50-M12-135 135 12 20.8 12.5 M12 6°
BT50-M12H-135 135 12 23 12.5 M12 6°
BT50-M16-60 60 12 28.8 17 M16 6°
BT50-M16H-60 60 12 38 17 M16 6°
BT50-M16-90 90 12 28.8 17 M16 6°
BT50-M16H-90 90 12 38 17 M16 3°
BT50-M16-110 110 12 28.8 17 M16 6°
BT50-M16-135 135 12 28.8 17 M16 6°

All above items are with bulk stocks, orders can be shipped in short time. If there is any special

request of products, please just contact us. We provide 100% custom made service.


Ⅳ. Products Overview

  1. MAS BT40 Threading Tool Holder.
  2. Hydro Expansion Tool holder of BT/SK/HSK.
  3. Heat Shrink-Fit/Shrinking/Heat Expansion Tool Holders.
  4. Threaded/Screw-on/Thread Screw Tool Holders.
  5. Back Lock/Side Lock and Mirror Finishing​ Toolholders.
  6. Morse Tap AdapterTools Holder.
  7. Torque Tap/Tapping Chuck.
  8. ER/GER/SK/GER/Hydraulic/Back lock/Torque tapping/Collet.
  9. Torque/Round/Circle Spanner Wrenche/Keys.
  10. Edge finder/Tool Holder Tightening Fixture/Table.
  11. CNC Indexable Cutting Tools.
  12. Rapid Changing CNC Tool Bits.



Ⅴ​. Shipment​


By Sea; By Air; By Train/Truck.

TNT, EMS, DHL, UPS, FedEx.

Ⅵ. Packing


PE Bag.
Plastic Box.
Carton Box.
Other Materials


Slushing oil.
Adhesive Tape.
Packing Straps.

Ⅶ. Warehouse


  1. Arrange Delivery  Within 2 days at soonest Afterat order and payment confirmed.
  2. Strict and Careful Inspection Before Delivering Goods to Our customers .
  3. Use Gauges For Examing Accuracy and Technical Factors.
  4. Super less error on delivering Goods and Items of Order.


MAS BT40 Threading Tool Holder 3μm Runout Two Sides Contacting
Ⅷ. Warranty


  • High Accuracy Equipments and Technology, Experienced Workers.
  • Custom Made Service,  Professional suggestions.
  • Customer can find any products relating CNC Cutting here.
  • Warranty 12 Months, Free Repairing Service.
  • Best Service, Considerate and Sincere.
