Small Clamping Threading Tool Holder High Stability , HSK63A Tool Holders

China Small Clamping Threading Tool Holder High Stability , HSK63A Tool Holders supplier
Small Clamping Threading Tool Holder High Stability , HSK63A Tool Holders supplier Small Clamping Threading Tool Holder High Stability , HSK63A Tool Holders supplier Small Clamping Threading Tool Holder High Stability , HSK63A Tool Holders supplier Small Clamping Threading Tool Holder High Stability , HSK63A Tool Holders supplier

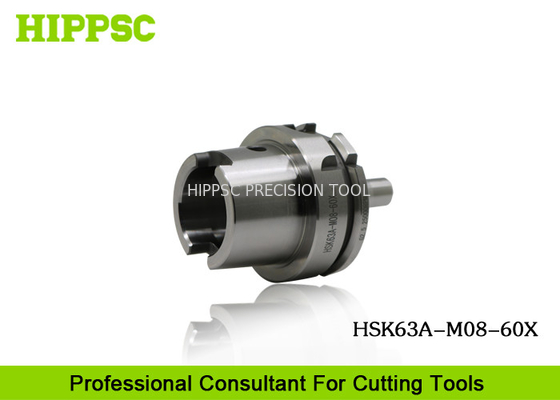

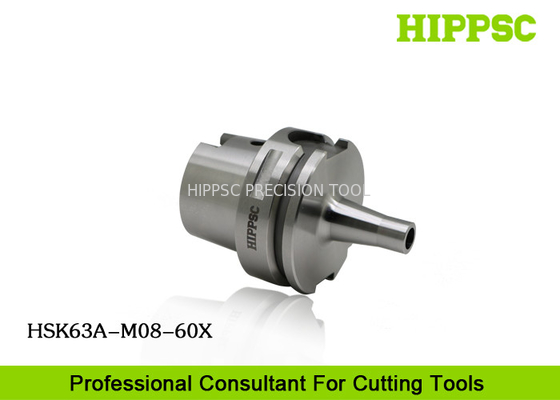

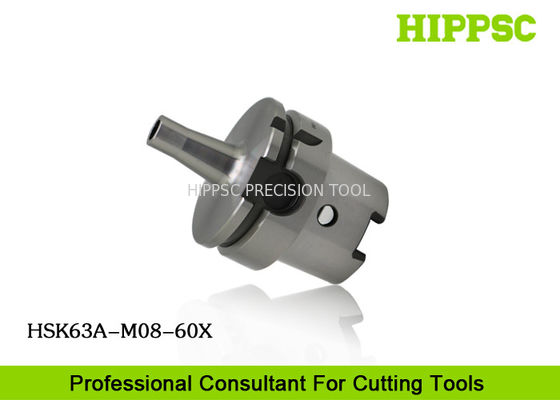

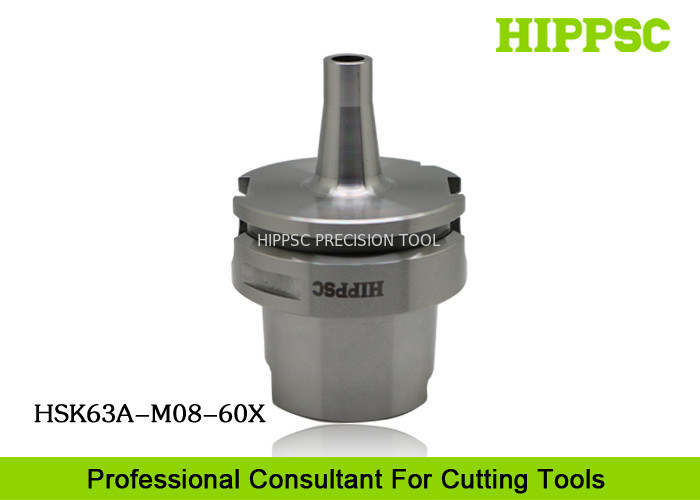

Large Image :  Small Clamping Threading Tool Holder High Stability , HSK63A Tool Holders

Product Details:

Place of Origin: Dongguan, China
Brand Name: HIPPSC
Certification: ISO9001
Model Number: HSK63A-M08-60X

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiable (Price term: EXW, FOB, CFR, CIF )
Packaging Details: Plastic Box with Inner PE Bag In Carton
Delivery Time: 2~30 Work days
Payment Terms: T/T, Western Union, Paypal, L/C
Supply Ability: 20000 pcs Per Month
Contact Now
Detailed Product Description
Spindle Type: HSK63A Customized Service: Available
Product Type: Theading Tool Holder Runout: 0.003MM
Cutting Type: EndMilling, Reaming, Drilling Material: 20CrNiMo
Application: Semi Precision Finishing
Highlight:

CNC Cutting Tool Holder

,

cnc mill tool holders

Small Clamping Threading Tool Holder High Stability , HSK63A Tool Holders



Ⅰ​. Features



  1. It can be well adapted to cutting tools with screw bolt and tungsten steel.
  2. Through the screw thread lock, simple and convenient.
  3. This type of tool holders performs with high rigidity, cutting fast, high efficient.
  4. Wide range of applications, suits for a variety of quick change tools.

Ⅱ. Technical Parametes ​



Product Name

Threaded Contacted Tool Holder

Spindle Type

HSK63A

Screw hold size

M08

Beat accuracy

≤ 0.003 μm

Processing Type

Endmilling, Reaming, Drilling, Finishing

Product Material

 20CrNiMo

Hardness

HRC58~60°


Ⅲ. Product Show


Available Standard Items<

Model Number L1 L2 D d M α
HSK63A-M08-60 60 12 12.8 8.5 M8 7°
HSK63A-M08H-60 60 12 15.4 8.5 M8 7°
HSK63A-M08-90 90 12 12.8 8.5 M8 7°
HSK63A-M08H-90 90 12 15.4 8.5 M8 7°
HSK63A-M08-110 110 12 12.8 8.5 M8 7°
HSK63A-M08H-110 110 12 15.4 8.5 M8 7°
HSK63A-M08-135 135 12 12.8 8.5 M8 7°
HSK63A-M08H-135 135 12 15.4 8.5 M8 7°
HSK63A-M10S-60 60 12 15.4 10.5 M10 7°
HSK63A-M10-60 60 12 17.8 10.5 M10 7°
HSK63A-M10S-90 90 12 15.4 10.5 M10
HSK63A-M10-90 90 12 17.8 10.5 M10 7°
HSK63A-M10S-110 110 12 15.4 10.5 M10 7°
HSK63A-M10-110 110 12 17.8 10.5 M10 7°
HSK63A-M10S-135 135 12 15.4 10.5 M10 7°
HSK63A-M10-135 135 12 17.8 10.5 M10 7°
HSK63A-M12-60 60 12 20.8 12.5 M12 6°
HSK63A-M12H-60 60 12 23 12.5 M12 6°
HSK63A-M12-90 90 12 20.8 12.5 M12 6°
HSK63A-M12H-90 90 12 23 12.5 M12 6°
HSK63A-M12-110 110 12 20.8 12.5 M12 6°
HSK63A-M12H-110 110 12 23 12.5 M12 6°
HSK63A-M12-135 135 12 20.8 12.5 M12 6°
HSK63A-M12H-135 135 12 23 12.5 M12 6°
HSK63A-M16-60 60 12 28.8 17 M16 6°
HSK63A-M16H-60 60 12 38 17 M16 7°
HSK63A-M16-90 90 12 28.8 17 M16 6°
HSK63A-M16H-90 90 12 38 17 M16 3°
HSK63A-M16-110 110 12 28.8 17 M16 6°
HSK63A-M16-135 135 12 28.8 17 M16 6°


Ⅳ. Products Overview


  1. HSK63A Threading Tool Holder.
  2. Hydro Expansion Tool holder of BT/SK/HSK.
  3. Heat Shrink-Fit/Shrinking/Heat Expansion Tool Holders.
  4. Threaded/Screw-on/Thread Screw Tool Holders.
  5. Side Lock/Pull Type / Mirror Finishing​ Tool holders.
  6. Morse Tap AdapterTools Holder.
  7. Torque Tap/Tapping Chuck.
  8. ER/GER/SK/GER/Hydraulic/Slim shank/Torque tapping/Collet.
  9. Torque/Round/Circle Spanner Wrenche/Keys.
  10. Edge finder/Tool Holder Tightening Fixture/Table.
  11. CNC Indexable Cutting Tools.
  12. Quick Change CNC Tool Bits.



Ⅴ​. Shipment​


By Sea; By Air;


TNT, EMS, DHL, UPS, FedEx.

Ⅵ. Packing


PE Bag.
Plastic Box.
Carton Box.


Other Materials


Slushing oil.
Adhesive Tape.
Packing Straps.

Ⅶ. Warehouse


  1. Arrange Delivery  Within 2 days at soonest as soon as order and payment confirmed.
  2. Strict and Careful Inspection Before Delivering Goods to Our customers .
  3. Use Gauges For Examing Accuracy and Technical Factors.
  4. Super less error on delivering Goods and Items of Order.
  5. Quick response to customer's requirement and demand within 24 hours.

Ⅷ. Warranty


  • High Accuracy Equipments and Technology, Experienced Workers.
  • Custom Made Service,  Professional suggestions.
  • Customer can find any products relating CNC Cutting here.
  • Warranty 12 Months, Free Repairing and Replacement Service.
