Ultra Long Heat Shrink Tool Holders HSK63A Threaded Arbor 135 Clamping Range

China Ultra Long Heat Shrink Tool Holders HSK63A Threaded Arbor 135 Clamping Range supplier
Ultra Long Heat Shrink Tool Holders HSK63A Threaded Arbor 135 Clamping Range supplier Ultra Long Heat Shrink Tool Holders HSK63A Threaded Arbor 135 Clamping Range supplier Ultra Long Heat Shrink Tool Holders HSK63A Threaded Arbor 135 Clamping Range supplier Ultra Long Heat Shrink Tool Holders HSK63A Threaded Arbor 135 Clamping Range supplier

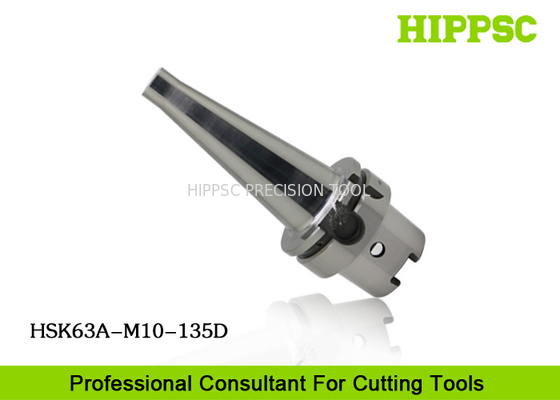

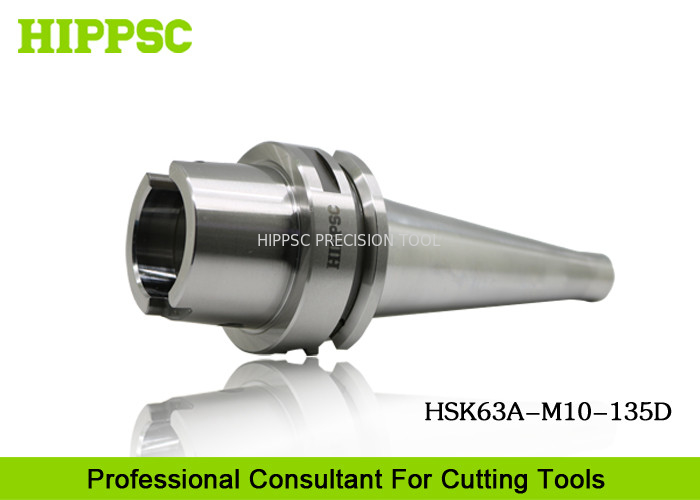

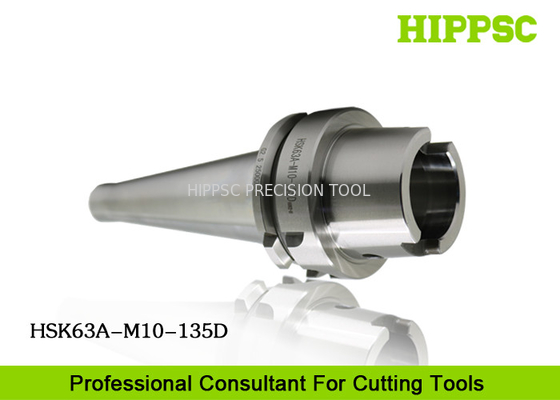

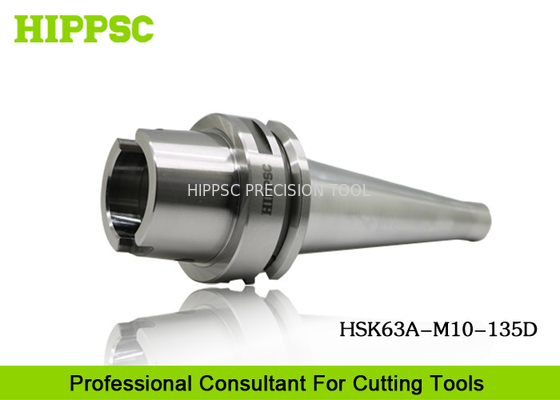

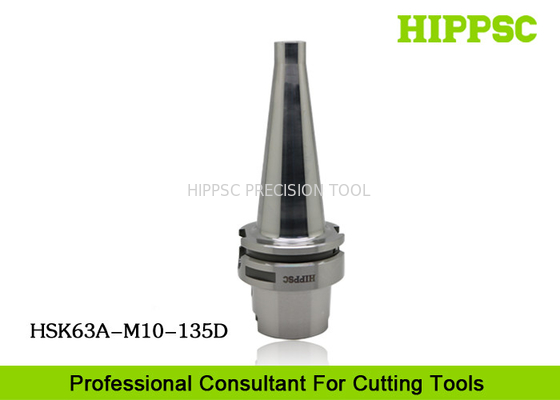

Large Image :  Ultra Long Heat Shrink Tool Holders HSK63A Threaded Arbor 135 Clamping Range

Product Details:

Place of Origin: Dongguan, China
Brand Name: HIPPSC
Certification: ISO9001
Model Number: HSK63A-M10-135D

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiable (Price term: EXW, FOB, CFR, CIF )
Packaging Details: Plastic Box with Inner PE Bag In Carton
Delivery Time: 2~30 Work days
Payment Terms: T/T, Western Union, Paypal, L/C
Supply Ability: 20000 pcs Per Month
Contact Now
Detailed Product Description
Spindle Type: HSK63A Customized Service: Available
Product Type: Theading Tool Holder Runout: 0.003mm
Cutting Type: EndMilling, Reaming, Drilling Material: Special Steel
Hardness: HRC58-60
Highlight:

cnc mill tool holders

,

cnc machine tool holders

Ultra Long Heat Shrink Tool Holders HSK63A Threaded Arbor 135 Clamping Range



Ⅰ​. Features



  1. Suitable for threaded cutters head and tungsten steel cutting tools.
  2. Slim clamping shank, high grip force, it can be used for deep hole and
    groove machining.
  3. Lock tools quickly and conveniently, save handling time and cost.
  4. NIce rigidity, cutting fast, high efficient.
  5. Wide range of applications, suits for many kinds of quick change tools.

Ⅱ. Technical Parametes ​



Product Name

Threading Tool Holder

Spindle Type

HSK63A

Clamping Range

4/6/8/10 mm (diameter)

Beat accuracy

≤ 0.003 μm

Processing Type

Endmilling, Reaming, Drilling, Finishing

Product Material

Special steel

Hardness

HRC58~60°


Ⅲ. Product catalogue and structure






Ultra Long Heat Shrink Tool Holders HSK63A Threaded Arbor 135 Clamping Range


Available Standard Items

Model Number L1 L2 D d M α
HSK63A-M08-60 60 12 12.8 8.5 M8 7°
HSK63A-M08H-60 60 12 15.4 8.5 M8 7°
HSK63A-M08-90 90 12 12.8 8.5 M8 7°
HSK63A-M08H-90 90 12 15.4 8.5 M8 7°
HSK63A-M08-110 110 12 12.8 8.5 M8 7°
HSK63A-M08H-110 110 12 15.4 8.5 M8 7°
HSK63A-M08-135 135 12 12.8 8.5 M8 7°
HSK63A-M08H-135 135 12 15.4 8.5 M8 7°
HSK63A-M10S-60 60 12 15.4 10.5 M10 7°
HSK63A-M10-60 60 12 17.8 10.5 M10 7°
HSK63A-M10S-90 90 12 15.4 10.5 M10
HSK63A-M10-90 90 12 17.8 10.5 M10 7°
HSK63A-M10S-110 110 12 15.4 10.5 M10 7°
HSK63A-M10-110 110 12 17.8 10.5 M10 7°
HSK63A-M10S-135 135 12 15.4 10.5 M10 7°
HSK63A-M10-135 135 12 17.8 10.5 M10 7°
HSK63A-M12-60 60 12 20.8 12.5 M12 6°
HSK63A-M12H-60 60 12 23 12.5 M12 6°
HSK63A-M12-90 90 12 20.8 12.5 M12 6°
HSK63A-M12H-90 90 12 23 12.5 M12 6°
HSK63A-M12-110 110 12 20.8 12.5 M12 6°
HSK63A-M12H-110 110 12 23 12.5 M12 6°
HSK63A-M12-135 135 12 20.8 12.5 M12 6°
HSK63A-M12H-135 135 12 23 12.5 M12 6°
HSK63A-M16-60 60 12 28.8 17 M16 6°
HSK63A-M16H-60 60 12 38 17 M16 7°
HSK63A-M16-90 90 12 28.8 17 M16 6°
HSK63A-M16H-90 90 12 38 17 M16 3°
HSK63A-M16-110 110 12 28.8 17 M16 6°
HSK63A-M16-135 135 12 28.8 17 M16 6°




Ⅳ. Products Overview


  1. HSK63A Threading Tool Holder.
  2. Hydro Expansion Tool holder of BT/SK/HSK.
  3. Heat Shrink-Fit/Shrinking/Heat Expansion Tool Holders.
  4. Threaded/Screw-on/Thread Screw Tool Holders.
  5. Back Lock/Side Lock and Mirror Finishing​ Toolholders.
  6. Morse Tap AdapterTools Holder.
  7. Torque Tap/Tapping Chuck.
  8. ER/GER/SK/GER/Hydraulic/Back lock/Torque tapping/Collet.
  9. Torque/Round/Circle Spanner Wrenche/Keys.
  10. Edge finder/Tool Holder Tightening Fixture/Table.
  11. CNC Indexable Cutting Tools.
  12. Rapid Changing CNC Tool Bits.



Ⅴ​. Shipment​


By Sea; By Air; By Train/Truck.

TNT, EMS, DHL, UPS, FedEx.

Ⅵ. Packing


PE Bag.
Plastic Box.
Carton Box.
Other Materials


Slushing oil.
Adhesive Tape.
Packing Straps.

Ⅶ. Warehouse


  1. Arrange Delivery  Within 2 days at soonest Afterat order and payment confirmed.
  2. Strict and Careful Inspection Before Delivering Goods to Our customers .
  3. Use Gauges For Examing Accuracy and Technical Factors.
  4. Super less error on delivering Goods and Items of Order.

Ⅷ. Warranty


  • High Precision Equipments, Our Workers Are Experienced And Skilled.
  • Custom Made Service, they buyer decides the product's specification and
    looking, we will provide professional and sincere suggestions.
  • Customer can find any products relating CNC Cutting here.
  • Warranty 12 Months, Free Repairing Service.
  • Best Service, Considerate and Sincere.
