Material 20CrNiMo Threading Tool Holder / Wide Range Screw CNC tool holders

China Material 20CrNiMo Threading Tool Holder / Wide Range Screw CNC tool holders supplier
Material 20CrNiMo Threading Tool Holder / Wide Range Screw CNC tool holders supplier Material 20CrNiMo Threading Tool Holder / Wide Range Screw CNC tool holders supplier

Large Image :  Material 20CrNiMo Threading Tool Holder / Wide Range Screw CNC tool holders

Product Details:

Place of Origin: Dongguan, China
Brand Name: HIPPSC
Certification: ISO9001
Model Number: HSK63A-M12-135D

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiable (Price term: EXW, FOB, CFR, CIF )
Packaging Details: Plastic Box with Inner PE Bag In Carton
Delivery Time: 2~30 Work days
Payment Terms: T/T, Western Union, Paypal, L/C
Supply Ability: 20000 pcs Per Month
Contact Now
Detailed Product Description
Application: Semi Precision Finishing Spindle Type: HSK63A
Customized Service: Available Product Type: Theading Tool Holder
Runing Accuracy: 0.003mm Machning Type: EndMilling, Reaming, Drilling And Turning
Material: 20CrNiMo
Highlight:

CNC Cutting Tool Holder

,

cnc machine tool holders

Material 20CrNiMo Wide Range Screw Thread Tool Holder CNC Drilling and Milling



Ⅰ​. Benefits



  1. Thread screw contact make it easy and quick to assemble tools.
  2. It is very convenient to use and operate with high performance.
  3. High rigidity and efficiency, make cutting fast.
  4. Excellent flexibility, it can work together with most of tools with screw bolt.
    one tool holder to variety of cutting tools.
  5. Contact with CNC lathe spindle very well, the concentricity is awesome.

Ⅱ. Technical Parametes ​



Product Name

Screw Tool Holder

Spindle Type

HSK63A

Clamping Range

4/6/8/10/12 mm (diameter)

Beat accuracy

< 0.003mm

Processing Type

Endmilling, Reaming, Drilling, Finishing

Product Material

Special steel

Hardness

HRC58~60°


Ⅲ. Product Show

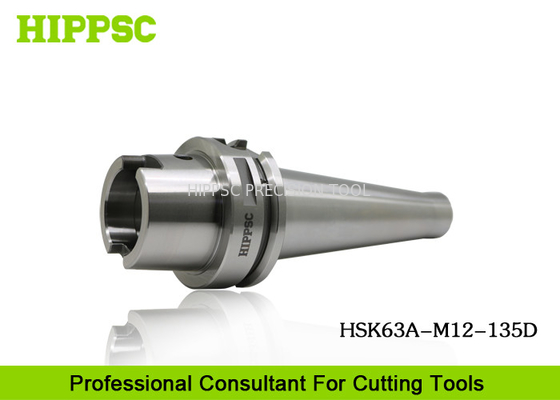

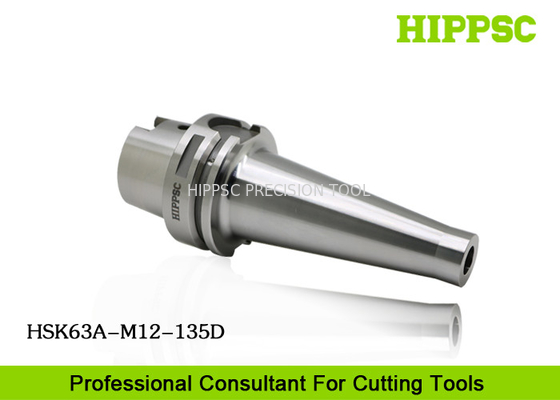

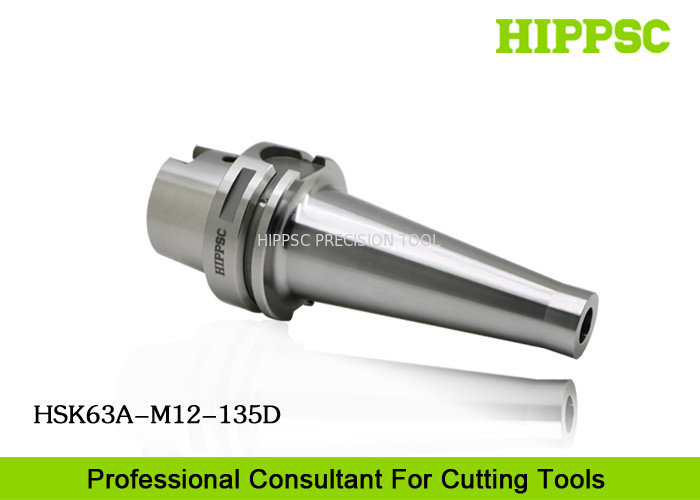

Material 20CrNiMo Threading Tool Holder / Wide Range Screw CNC tool holders

Price Term

Model Number L1 L2 D d M α
HSK63A-M08-60 60 12 12.8 8.5 M8 7°
HSK63A-M08H-60 60 12 15.4 8.5 M8 7°
HSK63A-M08-90 90 12 12.8 8.5 M8 7°
HSK63A-M08H-90 90 12 15.4 8.5 M8 7°
HSK63A-M08-110 110 12 12.8 8.5 M8 7°
HSK63A-M08H-110 110 12 15.4 8.5 M8 7°
HSK63A-M08-135 135 12 12.8 8.5 M8 7°
HSK63A-M08H-135 135 12 15.4 8.5 M8 7°
HSK63A-M10S-60 60 12 15.4 10.5 M10 7°
HSK63A-M10-60 60 12 17.8 10.5 M10 7°
HSK63A-M10S-90 90 12 15.4 10.5 M10
HSK63A-M10-90 90 12 17.8 10.5 M10 7°
HSK63A-M10S-110 110 12 15.4 10.5 M10 7°
HSK63A-M10-110 110 12 17.8 10.5 M10 7°
HSK63A-M10S-135 135 12 15.4 10.5 M10 7°
HSK63A-M10-135 135 12 17.8 10.5 M10 7°
HSK63A-M12-60 60 12 20.8 12.5 M12 6°
HSK63A-M12H-60 60 12 23 12.5 M12 6°
HSK63A-M12-90 90 12 20.8 12.5 M12 6°
HSK63A-M12H-90 90 12 23 12.5 M12 6°
HSK63A-M12-110 110 12 20.8 12.5 M12 6°
HSK63A-M12H-110 110 12 23 12.5 M12 6°
HSK63A-M12-135 135 12 20.8 12.5 M12 6°
HSK63A-M12H-135 135 12 23 12.5 M12 6°
HSK63A-M16-60 60 12 28.8 17 M16 6°
HSK63A-M16H-60 60 12 38 17 M16 7°
HSK63A-M16-90 90 12 28.8 17 M16 6°
HSK63A-M16H-90 90 12 38 17 M16 3°
HSK63A-M16-110 110 12 28.8 17 M16 6°
HSK63A-M16-135 135 12 28.8 17 M16 6°


Ⅳ. Products Overview


  1. HSK63A Thread Tool Holder With M12 Screw Hole.
  2. Hydro Expansion Tool holder of BT/SK/HSK.
  3. Heat Shrink-Fit/Shrinking/Heat Expansion Tool Holders.
  4. Threaded/Screw-on/Thread Screw Tool Holders.
  5. Back Lock/Side Lock and Mirror Finishing​ Toolholders.
  6. Morse Tap AdapterTools Holder.
  7. Torque Tap/Tapping Chuck.
  8. ER/GER/SK/GER/Hydraulic/Back lock/Torque tapping/Collet.
  9. Torque/Round/Circle Spanner Wrenche/Keys.
  10. Edge finder/Tool Holder Tightening Fixture/Table.
  11. CNC Indexable Cutting Tools.
  12. Rapid Changing CNC Tool Bits.

Material 20CrNiMo Threading Tool Holder / Wide Range Screw CNC tool holders


Ⅴ​. Shipment​


By Sea; By Air; By Train/Truck.


TNT, EMS, DHL, UPS, FedEx.

Ⅵ. Packing


PE Bag.
Plastic Box.
Carton Box.


Other Materials


Slushing oil.
Adhesive Tape.
Packing Straps.

Ⅶ. Warehouse


Material 20CrNiMo Threading Tool Holder / Wide Range Screw CNC tool holders

  1. Arrange shipment  within two days at soonest for standard products.
  2. Careful Inspection Before Delivering Goods to Our customers .
  3. Use special instruments to measure arbor's accuracy
  4. Super less error on delivering Goods and Items of Order.

Ⅷ. Warranty


  • High Accuracy Equipments and Technology, Skilled And Experienced Workers.
  • Customer can find almost all products related to CNC cutting here.
  • Warranty 12 months, Free replacement and repairing service.
  • We always provide best service to our customer.
