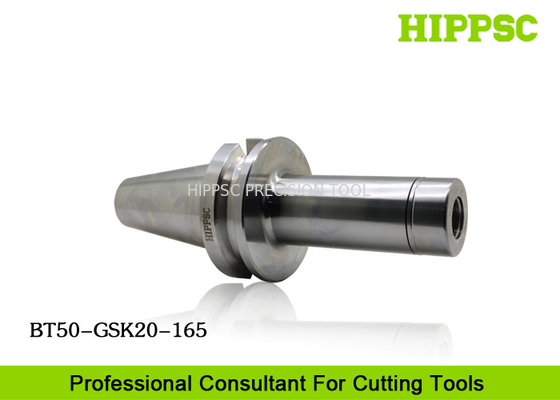

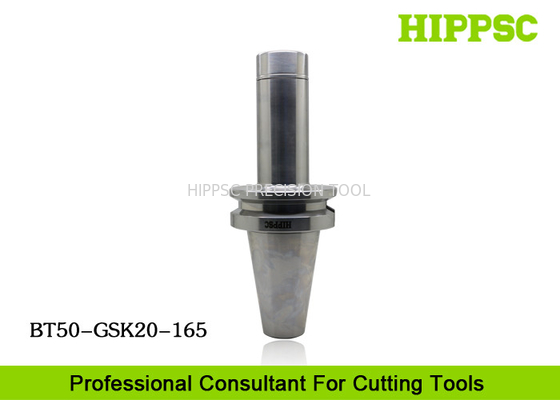

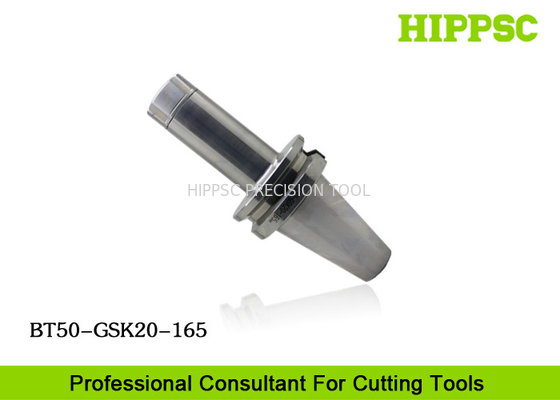

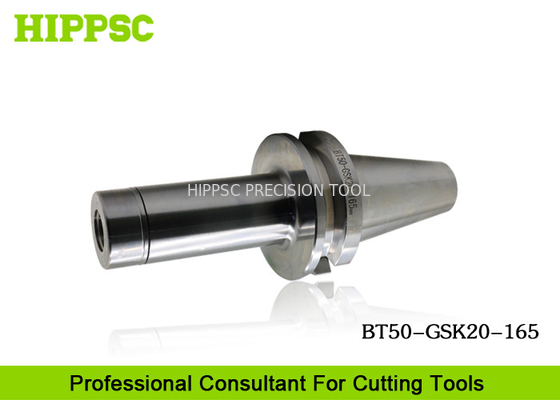

Metal CNC Cutting Tools GSK High Speed Machining BT 50 Tool Holder For Drilling / Milling Steel

Large Image : Metal CNC Cutting Tools GSK High Speed Machining BT 50 Tool Holder For Drilling / Milling Steel

Product Details:

Place of Origin:	Dongguan, China
Brand Name:	HIPPSC
Certification:	ISO9001
Model Number:	BT50-GSK20-165

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	Negotiable (Price term: EXW, FOB, CFR, CIF )
Packaging Details:	Plastic Box with Inner PE Bag In Carton
Delivery Time:	2~30 Work days
Payment Terms:	T/T, Western Union, Paypal, L/C
Supply Ability:	20000 pcs Per Month

Contact Now

Detailed Product Description

OEM/ODM:	Yes	Spindle Type:	BT50
Taper:	7:24	Runout:	0.003mm
Machining Type:	Milling, Boring, Drilling	Material:	20CrNiMo
Highlight:	milling machine cutting tools , cnc milling cutters

Metal CNC Cutting Tools GSK High Speed Machining BT 50 Tool Holder For Drilling

Ⅰ. Features And Advantages

Runout<0.003mm.
Non-eccentric fully round nut, fits for high speed precision machining.
Running on low noise and small wind resistance.
High surface quality available.
Wide application range.

Ⅱ. Technical Parametes

Product Name	GSK Tool Hoder
Spindle Type	BT50
Clamping Range	4mm~20mm
Runout	0.003mm
Processing Type	High speed machining and finishing
Taper Standard	AT3
Hardness	HRC58~60°

SK16 Collet

Item Name	Model Number	Diameter
SK20 Collet	SK20-4	3.5-4.0
	SK20-5	4.5-5.0
	SK20-6	5.5-6.0
	SK20-7	6.5-7.0
	SK20-8	7.5-8.0
	SK20-9	8.5-9.0
	SK20-10	9.5-10.0
	SK20-11	10.5-11.0
	SK20-12	11.5-12.0
	SK20-13	12.5-13.0
	SK20-14	13.5-14.0
	SK20-15	14.5-15.0
	SK20-16	15.5-16.0
	SK20-17	16.5-17.0
	SK20-18	17.5-18.0
	SK20-19	18.5-19.0
	SK20-20	19.5-20.0

Ⅲ. Product Introduction

Metal CNC Cutting Tools GSK High Speed Machining BT 50 Tool Holder For Drilling / Milling Steel

Standard Items

Model Number	d Diameter	D1	D2	L1	L2	M	Nut	Collet	Collet Puller	Spanner
BT30-GSK06-60	2.0-6.0	19.5	20	60	35	M15.5*1.0	HN-GSK6	SK06	CX06	GH19
BT30-GSK06-75	2.0-6.0	19.5	20	75	53	M15.5*1.0	HN-GSK6	SK06	CX06	GH19
BT30-GSK06-90	2.0-6.0	19.5	20	90	68	M15.5*1.0	HN-GSK6	SK06	CX06	GH19
BT30-GSK10-60	3.0-10.0	27.1	27.6	60	38	M21.5*1.0	HN-GSK10	SK10	CX10	GH27
BT30-GSK10-75	3.0-10.0	27.1	27.6	75	53	M21.5*1.0	HN-GSK10	SK10	CX10	GH27
BT30-GSK10-90	3.0-10.0	27.1	27.6	90	68	M21.5*1.0	HN-GSK10	SK10	CX10	GH27
BT30-GSK10-120	3.0-10.0	27.1	27.6	120	98	M21.5*1.0	HN-GSK10	SK10	CX10	GH27
BT30-GSK13-60	3.0-13.0	33	33.5	60	38	M27.0*1.0	HN-GSK13	SK13	CX13	GH33
BT30-GSK13-75	3.0-13.0	33	33.5	75	53	M27.0*1.0	HN-GSK13	SK13	CX13	GH33
BT30-GSK13-90	3.0-13.0	33	33.5	90	68	M27.0*1.0	HN-GSK13	SK13	CX13	GH33
BT30-GSK13-120	3.0-13.0	33	33.5	120	98	M27.0*1.0	HN-GSK13	SK13	CX13	GH33
BT30-GSK16-60	3.0-16.0	40	40.5	60	38	M32.0*1.0	HN-GSK16	SK16	CX16	GH40
BT30-GSK16-75	3.0-16.0	40	40.5	75	53	M32.0*1.0	HN-GSK16	SK16	CX16	GH40
BT30-GSK16-90	3.0-16.0	40	40.5	90	68	M32.0*1.0	HN-GSK16	SK16	CX16	GH40
BT30-GSK16-120	3.0-16.0	40	40.5	120	98	M32.0*1.0	HN-GSK16	SK16	CX16	GH40
BT30-GSK20-60	4.0-20.0	48	48.5	60	38	M40.0*1.0	HN-GSK20	SK20	CX20	GH48
BT30-GSK20-75	4.0-20.0	48	48.5	75	53	M40.0*1.0	HN-GSK20	SK20	CX20	GH48
BT30-GSK20-90	4.0-20.0	48	48.5	90	68	M40.0*1.0	HN-GSK20	SK20	CX20	GH48
BT30-GSK20-120	4.0-20.0	48	48.5	120	98	M40.0*1.0	HN-GSK20	SK20	CX20	GH48
BT40-GSK06-60	2.0-6.0	19.5	20	60	33	M15.5*1.0	HN-GSK06	SK06	CX06	GH19
BT40-GSK06-75	2.0-6.0	19.5	20	75	48	M15.5*1.0	HN-GSK06	SK06	CX06	GH19
BT40-GSK06-90	2.0-6.0	19.5	20	90	63	M15.5*1.0	HN-GSK06	SK06	CX06	GH19
BT40-GSK06-120	2.0-6.0	19.5	20	120	93	M15.5*1.0	HN-GSK06	SK06	CX06	GH19
BT40-GSK10-60	3.0-10.0	27.1	27.6	60	33	M21.5*1.0	HN-GSK10	SK10	CX10	GH27
BT40-GSK10-75	3.0-10.0	27.1	27.6	75	48	M21.5*1.0	HN-GSK10	SK10	CX10	GH27
BT40-GSK10-90	3.0-10.0	27.1	27.6	90	63	M21.5*1.0	HN-GSK10	SK10	CX10	GH27
BT40-GSK10-120	3.0-10.0	27.1	27.6	120	93	M21.5*1.0	HN-GSK10	SK10	CX10	GH27
BT40-GSK10-150	3.0-10.0	27.1	27.6	150	123	M21.5*1.0	HN-GSK10	SK10	CX10	GH27
BT40-GSK13-60	3.0-13.0	33	33.5	60	33	M27.0*1.0	HN-GSK13	SK13	CX13	GH33
BT40-GSK13-75	3.0-13.0	33	33.5	75	48	M27.0*1.0	HN-GSK13	SK13	CX13	GH33
BT40-GSK13-90	3.0-13.0	33	33.5	90	63	M27.0*1.0	HN-GSK13	SK13	CX13	GH33
BT40-GSK13-120	3.0-13.0	33	33.5	120	93	M27.0*1.0	HN-GSK13	SK13	CX13	GH33
BT40-GSK13-150	3.0-13.0	33	33.5	150	123	M27.0*1.0	HN-GSK13	SK13	CX13	GH33
BT40-GSK16-60	3.0-16.0	40	40.5	60	33	M32.0*1.0	HN-GSK16	SK16	CX16	GH40
BT40-GSK16-75	3.0-16.0	40	40.5	75	48	M32.0*1.0	HN-GSK16	SK16	CX16	GH40
BT40-GSK16-90	3.0-16.0	40	40.5	90	63	M32.0*1.0	HN-GSK16	SK16	CX16	GH40
BT40-GSK16-120	3.0-16.0	40	40.5	120	93	M32.0*1.0	HN-GSK16	SK16	CX16	GH40
BT40-GSK16-150	3.0-16.0	40	40.5	150	123	M32.0*1.0	HN-GSK16	SK16	CX16	GH40
BT40-GSK20-60	4.0-20.0	48	48.5	60	33	M40.0*1.0	HN-GSK20	SK20	CX20	GH48
BT40-GSK20-75	4.0-20.0	48	48.5	75	48	M40.0*1.0	HN-GSK20	SK20	CX20	GH48
BT40-GSK20-90	4.0-20.0	48	48.5	90	63	M40.0*1.0	HN-GSK20	SK20	CX20	GH48
BT40-GSK20-120	4.0-20.0	48	48.5	120	93	M40.0*1.0	HN-GSK20	SK20	CX20	GH48
BT40-GSK20-150	4.0-20.0	48	48.5	150	123	M40.0*1.0	HN-GSK20	SK20	CX20	GH48
BT40-GSK25-90	6.0-25.0	55	55.5	90	63	M45.0*1.0	HN-GSK25	SK25	CX25	GH55
BT40-GSK25-120	6.0-25.0	55	55.5	120	93	M45.0*1.0	HN-GSK25	SK25	CX25	GH55
BT50-GSK10-105	3.0-10.0	27.1	27.6	67	33	M21.5*1.0	HN-GSK10	SK10	CX10	GH27
BT50-GSK10-135	3.0-10.0	27.1	27.6	97	48	M21.5*1.0	HN-GSK10	SK10	CX10	GH27
BT50-GSK10-165	3.0-10.0	27.1	27.6	127	63	M21.5*1.0	HN-GSK10	SK10	CX10	GH27
BT50-GSK13-105	3.0-13.0	33	33.5	67	93	M27.0*1.0	HN-GSK13	SK13	CX13	GH33
BT50-GSK13-135	3.0-13.0	33	33.5	97	123	M27.0*1.0	HN-GSK13	SK13	CX13	GH33
BT50-GSK13-165	3.0-13.0	33	33.5	127	33	M27.0*1.0	HN-GSK13	SK13	CX13	GH33
BT50-GSK16-105	3.0-16.0	40	40.5	67	48	M32.0*1.0	HN-GSK16	SK16	CX16	GH40
BT50-GSK16-135	3.0-16.0	40	40.5	97	63	M32.0*1.0	HN-GSK16	SK16	CX16	GH40
BT50-GSK16-165	3.0-16.0	40	40.5	127	93	M32.0*1.0	HN-GSK16	SK16	CX16	GH40
BT50-GSK16-200	3.0-16.0	40	40.5	162	123	M32.0*1.0	HN-GSK16	SK16	CX16	GH40
BT50-GSK20-105	4.0-20.0	48	48.5	67	33	M40.0*1.0	HN-GSK20	SK20	CX20	GH48
BT50-GSK20-135	4.0-20.0	48	48.5	97	48	M40.0*1.0	HN-GSK20	SK20	CX20	GH48
BT50-GSK20-165	4.0-20.0	48	48.5	127	63	M40.0*1.0	HN-GSK20	SK20	CX20	GH48
BT50-GSK20-200	4.0-20.0	48	48.5	162	93	M40.0*1.0	HN-GSK20	SK20	CX20	GH48
BT50-GSK25-105	6.0-25.0	55	55.5	67	63	M45.0*1.0	HN-GSK25	SK25	CX25	GH55
BT50-GSK25-135	6.0-25.0	55	55.5	97	93	M45.0*1.0	HN-GSK25	SK25	CX25	GH55
BT50-GSK25-165	6.0-25.0	55	55.5	127	93	M45.0*1.0	HN-GSK25	SK25	CX25	GH55
BT50-GSK25-200	6.0-25.0	55	55.5	162	93	M45.0*1.0	HN-GSK25	SK25	CX25	GH55

Ⅳ. Overview for HIPPSC Products

1. BT50-GSK20-165 High Speed GSK Tool Holder with G2.5 25000RPM.

2. High Speed ER/SK/GER/GSK Tool Holder/Shank/Arbor for CNC Working.

3. Heat Shrink-Fit/Shrinking Tool Holders/Shanks/Arbors.

4. Threaded/Screw-on/Thread Screw Tool Holders/Arbors/Shank.

5. Back Lock/Side Lock Tool Holders/Arbors/Shanks.

6. Tool Holders/Arbors/Shanks for Mirror Finishing.

7. Morse Taper/Tapering Tool Holders/Shanks.

8. Face Milling Adapters/Tool Holders/Arbors/Shanks.

9. Drilling/Driller Chuck Holders/Tool Holders/Shanks/Arbor.

10. Torque Floating Tap/Tapping Chuck and Collet.

11. ER/SK/Hydraulic/Back lock/Floating tapping Collet
12. Torque/ Round/Circle Spanners/Wrenches/Keys.

13. ER/SK/Back lock/Shrink fit Extension Rod/ Tool bit.

14. Nuts/Pull stud/Bolt Blind rivet/Spindle taper wiper/Test bar/Tester.

15. Edge finder/Tool Holder Tightening Fixture/Table.

16. Inserts/PCD/Milling/Boring/PCBN Inserts/Blade/Cutters/Tool bit.

17. Quick Change Ball nose/Triangle/Pentagon/Horseshoe Tool bit.

18. Cutterhead/ Cutter heard/bar, face milling cutter.

19. BT/BBT/SK/CAT/HSK/ISO/NT Spinder Type Tool Holder/Shank/Arbor
20. Indexable Tools.

Ⅴ. Shipmen

By Sea; By Air; By Train/Truck.

TNT, EMS, DHL, UPS, FedEx.

Ⅵ. Packing

PE Bag.
Plastic Box
Carton Box.

Other Materials

Rust Presensitive Oil.
Adhesive Tape.
Packing Belt.

Ⅶ. Warehouse

1.   Sufficient Inventory For All Standard Products to Guarantee On-time Delivery.
2.   All Materials and Products Must Be Inspected and Checked Strictly and Carefully
      By IQC and OQC Operater Before Being Shipped Out.
3.   Using Special Equipment and Gauge To Check Technical Parameters.

Ⅷ. Manufacturing and Sales Service

1.   Manufacturing with Professional and Precise Equipments Under Experienced Workers.
2.   OEM and ODM Service Are All Available Here, Produce To Customer's Need/Requirement.
3.   Professional Serving Team Provides One-Stop Considerate and Satisfying Service To You.
