Ultra Long Clamp Special Precision Tool Holders With BT50 Spindle Type , ISO9001 Standard

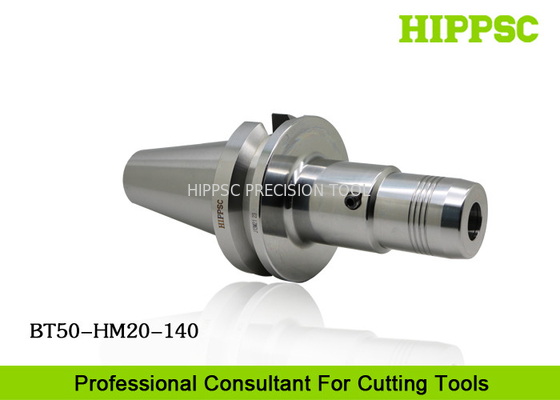

Large Image : Ultra Long Clamp Special Precision Tool Holders With BT50 Spindle Type , ISO9001 Standard

Product Details:

Place of Origin:	Dongguan, China
Brand Name:	HIPPSC
Certification:	ISO9001
Model Number:	BT50-HM20-140

Payment & Shipping Terms:

Minimum Order Quantity:	2PCS
Price:	Negotiable (CFR, CNF, CIF, EXW, FOB etc.)
Packaging Details:	PE bag in Plastic Box, then packing with carton Box
Delivery Time:	2~30 Days
Payment Terms:	T/T, Western Union, Paypal.
Supply Ability:	1~2 days for goods in stock; 15~30 days for standard products without stock.

Contact Now

Detailed Product Description

Product Description:	The Oil Cavity Structure And High Pressure Oil Reservoir In The Presence Of Greatly, Increasing The Structure Damping, Which Can Effectively Prevent The Vibration Of Cutting Tool And Spindle. The Practical Application Shows That The Use Of This Clamping Sy
Highlight:	machine tool holders , boring tool holder

Product Description:

The Oil Cavity Structure And High Pressure Oil Reservoir In The Presence Of Greatly, Increasing The Structure Damping, Which Can Effectively Prevent The Vibration Of Cutting Tool And Spindle. The Practical Application Shows That The Use Of This Clamping Sy

Highlight:

machine tool holders

boring tool holder

Milling Hydraulic Tool Holder CNC Long Shank , Special Tool Holders

1. Advantages

Concentricity<3μm
Super high vibration and damping effect Super high
Perfect cutting tool for axial processing
Extend fatigue life of cutters for hole making
Wide clamping range for accessory of collet
Easy assembly, no need any other auxiliary tools

2. Products Information

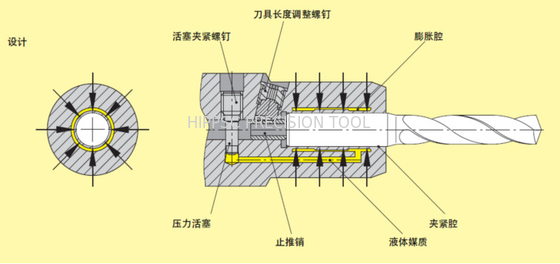

CAD

Ultra Long Clamp Special Precision Tool Holders With BT50 Spindle Type , ISO9001 Standard

Products specification sheets

Model number	D1	D2	D3	D4	L	L2max	L2min	V	L3	Collet	G	Spanner	Type
BT30-HM6-70	6	25	28	45	70	37.5	27.5	10	28	--	M5*0.8	T4	Fig1
BT30-HM8-70	8	27	30		70	37.5	27.5		28	--	M6*1.0
BT30-HM10-75	10	29	32		75	42.5	32.5		38	--	M8*1.0
BT30-HM12-75	12	31	34		75	47.5	37.5		34	OHM12	M8*1.0
BT30-HM14-85	14	33	36		85	47.5	37.5		44	--	M8*1.0
BT30-HM16-90	16	35	38		90	52.5	42.5		46	--	M10*1.0
BT30-HM18-90	18	38	41		90	52.5	42.5		48	--	M10*1.0
BT30-HM20-90	20	40	43		90	52.5	42.5		46	OHM20	M10*1.0
BT40-HM6-90	6	25	28	50	90	37.5	27.5	10	44.5	--	M5*0.8	T4	Fig1
BT40-HM8-90	8	27	30		90	37.5	27.5		44.5	--	M6*1.0
BT40-HM10-90	10	29	32		90	42.5	32.5		44.5	--	M8*1.0
BT40-HM12-90	12	31	34		90	47.5	37.5		44.5	OHM12	M8*1.0
BT40-HM14-90	14	33	36		90	47.5	37.5		44	--	M8*1.0
BT40-HM16-90	16	35	38		90	52.5	42.5		48	--	M10*1.0
BT40-HM18-95	18	38	41		95	52.5	42.5		48	--	M10*1.0
BT40-HM20-90	20	40	43		90	52.5	42.5		48	OHM20	M10*1.0
BT40-HM25-100	25	53	57		100	61.0	51	--	73	--	M16*1.0	T5	Fig2
BT40-HM32-105	32	60	63		105	65.0	55	--	78	OHM32	M16*1.0	T5	Fig2
BT50-HM12-90	12	31	34		90	47.5	37.5	10	32	OHM12	M8*1.0	T4	Fig1
BT50-HM20-90	20	40	43		90	52.5	42.5	10	32	OHM20	M10*1.0	T4	Fig1
BT50-HM32-115	32	60	63	--	115	65.0	55	--	77	OHM32	M16*1.0	T5	Fig2
BT50-HM6-90	6	25	28	50	90	37.5	27.5	10	32	--	M5*0.8	T4	Fig1
BT50-HM8-90	8	27	30		90	37.5	27.5		32	--	M6*1.0
BT50-HM10-90	10	29	32		90	42.5	32.5		32	--	M8*1.0
BT50-HM12-90	12	31	34		90	47.5	37.5		32	OHM12	M8*1.0
BT50-HM14-90	14	33	36		90	47.5	37.5		32	--	M8*1.0
BT50-HM16-90	16	35	38		90	52.5	42.5		32	--	M10*1.0
BT50-HM18-90	18	38	41		90	52.5	42.5		32	--	M10*1.0
BT50-HM20-90	20	40	43		90	52.5	42.5		32	OHM20	M10*1.0
BT50-HM25-105	25	53	57	--	105	61	51		67	--	M16*1	T5	Fig2
BT50-HM32-115	32	60	63	--	115	65	55		77	OHM32	M16*1	T5	Fig2

Precision	3～6		6.1～10		10.1～14		14.1～18		18.1～24		24.1～30
H6	0-8UM		0-9UM		0-11UM		0-11UM		0-13UM		0-13UM

3. Application

Aerospace, automobile accessories, oil excavating

4. Technical Parameters

Product name	Ultra Long Clamp Hydraulic Tool Holder
Spindle type	BT50
Clamping range	3mm~16mm
Runout	0.003mm
Processing type	Milling, face mill, and finish machining
Product material	Special Steel
Hardness	HRC58~60°
Taper standard	AT3

5. Other products of HIPPSC

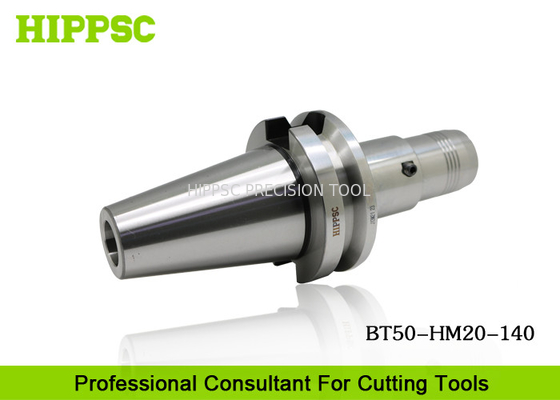

Ultra Long Clamp Special Precision Tool Holders With BT50 Spindle Type , ISO9001 Standard

6. Packing and shipment

Each product should be packed in a PE bag, and then put it into a plastic box together with related accessories, at last we will use a carton box to pack all items in specific quantity.

The goods could be shipped by International Express or by sea(air, train or truck).

The customers are allowed to choose special way by own.

7. Warranty

12 Months with free repaire and replacement service.

The buyer is possible to be responsible for transportation fees.
