Product Details:
Payment & Shipping Terms:
|
| Spindle Type: | HSK40E | OEM: | Available |
|---|---|---|---|
| Product Type: | Hydraulic Tool Shank | Runout: | 0.003mm |
| Cutter Type: | Endmill, Drill And Reamer | Material: | Special Steel |
| Application: | Hole Processing | Collet Type: | OHM With Central Water Through |
| Torque: | 450NM | ||
| Highlight: | machine tool holders,boring tool holder |
||
HSK40E Milling Machine Tool Holders 20CrNiMo With High Regidity
Ⅰ. Features
Ⅱ. Product Parametes
|
Product Name |
Hydraulic Chucks |
|
Spindle Type |
HSK40E |
|
Clamping Range |
6/8/10/12/16/20mm (diameter) |
|
Beating accuracy |
≤ 0.003 mm |
|
Processing Type |
Endmilling, Reaming, Drilling, Finishing |
|
Product Material |
20CrNiMo |
|
Hardness |
HRC58~60° |
Ⅲ. Product Show
The below items can be supplied soonest after we receive order.
| Model Number | D | D1 | C | D4 | L | L2max | L2min | L4 | Collet | Spanner | G |
| HSK40E-HM6-70 | 6 | 25 | 28 | 34 | 70 | 37 | 27 | 50 | ‐‐ | T4 | M5 |

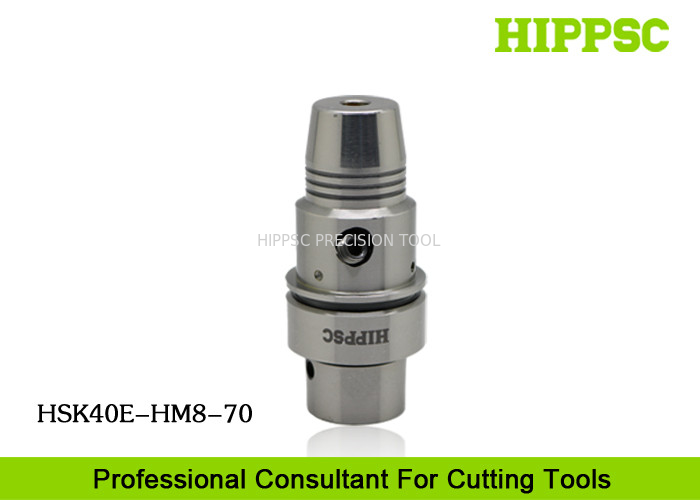

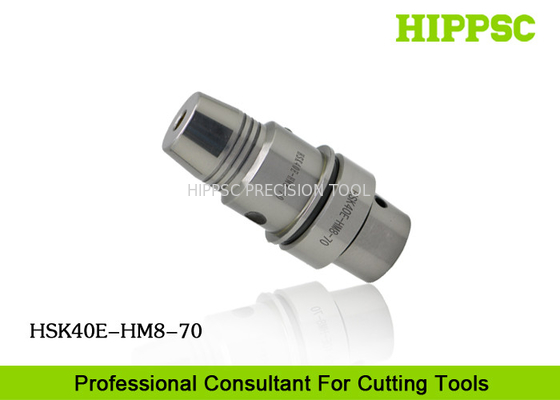

| HSK40E-HM8-70 | 8 | 27 | 30 | 34 | 70 | 37 | 27 | 50 | ‐‐ | T4 | M6 |
| HSK40E-HM10-75 | 10 | 29 | 32 | 34 | 75 | 41 | 31 | 55 | ‐‐ | T4 | M6 |
| HSK40E-HM12-80 | 12 | 31 | 34 | 34 | 80 | 46 | 36 | 60 | HM12 | T4 | M6 |
| HSK50E-HM6-70 | 6 | 25 | 28 | 40 | 70 | 37 | 27 | 44 | ‐‐ | T4 | M5 |
| HSK50E-HM8-70 | 8 | 27 | 30 | 40 | 70 | 37 | 27 | 44 | ‐‐ | T4 | M6 |
| HSK50E-HM10-75 | 10 | 29 | 32 | 40 | 75 | 41 | 31 | 49 | ‐‐ | T4 | M8X1 |
| HSK50E-HM12-85 | 12 | 31 | 34 | 40 | 85 | 46 | 36 | 59 | HM12 | T4 | M8X1 |
| HSK50E-HM16-90 | 16 | 35 | 38 | 43 | 90 | 49 | 39 | 64 | ‐‐ | T4 | M10X1 |
| HSK50E-HM20-90 | 20 | 40 | 43 | 60 | 90 | 51 | 41 | 64 | HM20 | T4 | M10X1 |
Ⅳ. Products Overview
2. TNT, EMS, DHL, UPS, FedEx.
3. Customized available.
Ⅵ. Packing
The product is included by PE Bag first, and then we put it into a specific plastic box,
finally a specific number of items will be packed in a carton box, and then we will paste
shipping mark as agreed with customer to the outter of box, all steps will be finished with
full attention and care.
Other Materials
Slushing oil.
Adhesive Tape.
Packing Straps.
Ⅶ. Warehouse
Ⅷ. Warranty
HIPPSC products are warranted to be free from defects in materials or workmanship for 12 Months from the date of purchase. Within this period, we will, at our sole discretion, repair or replace any components that fail in normal use. Such repairs or replacement will be made free of charge to the buyer for parts and/or labor, on condition that they agree to pay for all transportation charges related. And the eplacement products shall be new or refurbished at our discretion.
