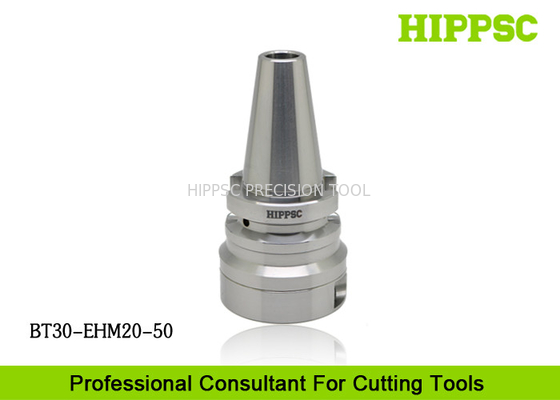

Hydraulic Heat Shrink Tool Holders / BT30 Steel Tool Holder With 16mm Clam Diameter

Large Image : Hydraulic Heat Shrink Tool Holders / BT30 Steel Tool Holder With 16mm Clam Diameter

Product Details:

Place of Origin:	Dongguan, China
Brand Name:	HIPPSC
Certification:	ISO9001
Model Number:	BT30-EHM20-50

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	Negotiable (Price term: EXW, FOB, CFR, CIF )
Packaging Details:	Plastic Box with Inner PE Bag In Carton
Delivery Time:	2~30 Work days
Payment Terms:	T/T, Western Union, Paypal, L/C
Supply Ability:	20000 pcs Per Month

Contact Now

Detailed Product Description

OEM/ODM:	Yes	Spindle Type:	BT30
Product Type:	Cost Effective Hydraulic Expansion	Runout:	0.003mm
Balance:	Available	Material:	20CrNiMo
Application:	Electronics, Automotive, Die/mould And Aerospace	Clam Diameter:	16mm
Collet Type:	OHM	Collet Type:	Straight Shank
Highlight:	machine tool holders , boring tool holder

Hydraulic Expansions Tool Holders Short Clamping Shank BT30 - EHM20 - 50

Ⅰ. Advantages

Run-out ≤ 0.003mm.
Vibration Dampening increases surface quality.
Super Running And Repeat Accuacy.
360 degree and double positions clamping, increasing tools' rigidity.
For the best balance of moment power.

Ⅱ. Technical Parametes

Product Name	Hydraulic Expansion Tool Holder
Spindle Type	BT30
Clamping Range	3mm~16mm (diameter)
Beat accuracy	< 0.003mm
Processing Type	Endmilling, Reaming, Drilling, Finishing
Product Material	Special steel
Hardness	HRC58~60°

Ⅲ. Product Show

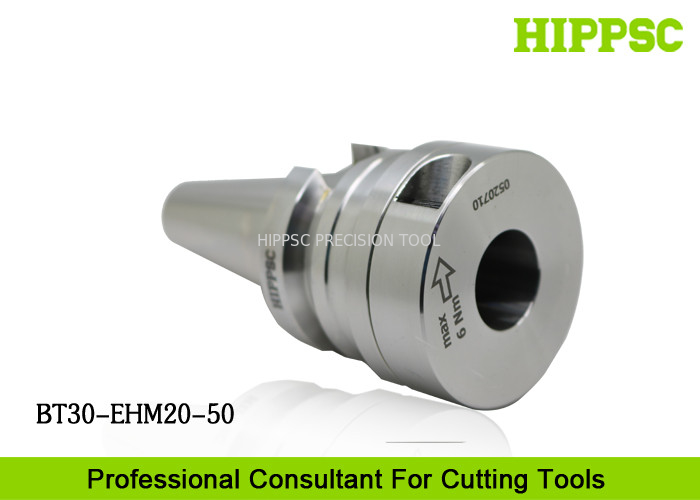

Hydraulic Heat Shrink Tool Holders / BT30 Steel Tool Holder With 16mm Clam Diameter

Available Standard Items

Model number	D1	D2	d	L1	L2	M	Collet	Spanner
BT30-EHM20-50	51.5	46	20	50	23	M10*1.5	OHM20	T5
BT40-EHM20-41	51.5	63	20	41	14		OHM20
BT40-EHM25-41	58	63	25	41	14		/
BT40-EHM32-65	68.5	63	32	65	38		OHM32
BT50-EHM20-52	51.5	100	20	52	25		OHM20
BT50-EHM25-52	58	100	25	52	25		/
BT50-EHM32-52	68.5	100	32	52	25		OHM32
BT50-EHM40-58	86.5	100	40	58	31		/
BT50-EHM42-58	89	100	42	58	31

Collet specification sheet

Part Number	D1	D2	L1	L2	d
HM12-3	12	16	44.5	2	3
-4					4
-5					5
-6					6
-7					7
-8					8
HM20-3	20	24	50.5	2	3
-4					4
-5					5
-6					6
-7					7
-8					8
-9					9
-10					10
-11					11
-12					12
-13					13
-14					14
-15					15
-16					16
HM32-6	32	36	60.5	3	6
-8					8
-10					10
-12					12
-14					14
-16					16
-18					18
-20					20
-25					25

Ⅳ. Products Overview

B30 Economical Hydraulic Chucks With High Regidity and Stability.
Heat Shrink-Fit/Shrinking/Heat Expansion Tool Holders.
Threaded/Screw-on/Thread Screw Tool Holders.
Back Lock/Side Lock and Mirror Finishing Toolholders.
Morse Tap AdapterTools Holder.
Torque Tap/Tapping Chuck.
ER/GER/SK/GER/Hydraulic/Back lock/Torque tapping/Collet.
Torque/Round/Circle Spanner Wrenche/Keys.
Edge finder/Tool Holder Tightening Fixture/Table.
CNC Indexable Cutting Tools.
Rapid Changing CNC Tool Bits.

Ⅴ. Shipment

By Sea; By Air.

By land transportation-By train, By truck.

TNT, EMS, DHL, UPS, FedEx.

Ⅵ. Packing

Main Material
PE Bag.
Plastic Box.
Carton Box.

Other Materials

Slushing oil.
Adhesive Tape.
Packing Straps.

Ⅶ. Warehouse

1.   We usually arrange delivery within 2 days for standard products after payment confirmed.
2.   OQC and IQC are always used to control and exam products quality.
3.   We have special test gauges and equipments to measure products technical parameter.

Hydraulic Heat Shrink Tool Holders / BT30 Steel Tool Holder With 16mm Clam Diameter

Ⅷ. Warranty
