CNC Cutting Tool Holder With M12 Screw Hole / 3μM Milling Tool Holders , ISO9001 Compliant

China CNC Cutting Tool Holder With M12 Screw Hole / 3μM Milling Tool Holders , ISO9001 Compliant supplier

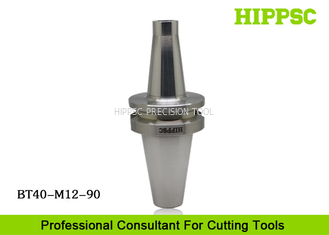

Large Image :  CNC Cutting Tool Holder With M12 Screw Hole / 3μM Milling Tool Holders , ISO9001 Compliant

Product Details:

Place of Origin: Dongguan, China
Brand Name: HIPPSC
Certification: ISO9001
Model Number: BT40-M12-90

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiable (Price term: EXW, FOB, CFR, CIF )
Packaging Details: Plastic Box with Inner PE Bag In Carton
Delivery Time: 2~30 Work days
Payment Terms: T/T, Western Union, Paypal, L/C
Supply Ability: 20000 pcs Per Month
Contact Now
Detailed Product Description
Customized Service: Available Spindle Type: BT40
Product Type: Theading Tool Holder Runout: 3μm
Cutting Type: EndMilling, Reaming, Drilling Material: 20CrNiMo
Application: Semi Precision Finishing
Highlight:

cnc mill tool holders

,

cnc machine tool holders

Precision Threading Tool Holder M12 Clamp Screw Hole MAS BT40 Standard



Ⅰ​. Features

  1. Thread cutter head and the tungsten steel cutter tool.
  2. Through the screw thread to lock, simple and convenient.
  3. Nice rigidity, cutting fast, high efficient.
  4. Wide range of applications, fits for many kinds of quick change tools.


Ⅱ. Technical Parametes ​



Product Name

Threading Tool Holder

Spindle Type

BT40

Screw hole size

M12

Beat accuracy

≤ 0.003 μm

Processing Type

Endmilling, Reaming, Drilling, Finishing

Product Material

Special steel

Hardness

HRC58~60°






Available Standard Items

Model No. L1 L2 D1 d M α
BT40-M08-60 60 12 12.8 8.5 M08 7°
BT40-M08H-60 60 12 15.4 8.5 M08 7°
BT40-M08-90 90 12 12.8 8.5 M08 7°
BT40-M08H-90 90 12 15.4 8.5 M08 7°
BT40-M08-110 110 12 12.8 8.5 M08 7°
BT40-M08H-110 110 12 15.4 8.5 M08 7°
BT40-M08-135 135 12 12.8 8.5 M08 7°
BT40-M08H-135 135 12 15.4 8.5 M08 7°
BT40-M10S-60 60 12 15.4 10.5 M10 7°
BT40-M10-60 60 12 17.8 10.5 M10 7°
BT40-M10S-90 90 12 15.4 10.5 M10 7°
BT40-M10-90 90 12 17.8 10.5 M10 7°
BT40-M10S-110 110 12 15.4 10.5 M10 7°
BT40-M10-110 110 12 17.8 10.5 M10 7°
BT40-M10S-135 135 12 15.4 10.5 M10 7°
BT40-M10-135 135 12 17.8 10.5 M10 7°
BT40-M12-60 60 12 20.8 12.5 M12 6°
BT40-M12H-60 60 12 23 12.5 M12 6°
BT40-M12-90 90 12 20.8 12.5 M12 6°
BT40-M12H-90 90 12 23 12.5 M12 6°
BT40-M12-110 110 12 20.8 12.5 M12 6°
BT40-M12H-110 110 12 23 12.5 M12 6°
BT40-M12-135 135 12 20.8 12.5 M12 6°
BT40-M12H-135 135 12 23 12.5 M12 6°
BT40-M16-60 60 12 28.8 17 M16 6°
BT40-M16H-60 60 12 38 17 M16 6°
BT40-M16-90 90 12 28.8 17 M16 6°
BT40-M16H-90 90 12 38 17 M16 3°
BT40-M16-110 110 12 28.8 17 M16 6°
BT40-M16-135 135 12 28.8 17 M16 6°
BT50-M08-60 60 12 12.8 8.5 M08 7°
BT50-M08H-60 60 12 15.4 8.5 M08 7°
BT50-M08-90 90 12 12.8 8.5 M08 7°
BT50-M08H-90 90 12 15.4 8.5 M08 7°
BT50-M08-110 110 12 12.8 8.5 M08 7°
BT50-M08H-110 110 12 15.4 8.5 M08 7°
BT50-M08-135 135 12 12.8 8.5 M08 7°
BT50-M08H-135 135 12 15.4 8.5 M08 7°
BT50-M10S-60 60 12 15.4 10.5 M10 7°
BT50-M10-60 60 12 17.8 10.5 M10 7°
BT50-M10S-90 90 12 15.4 10.5 M10 7°
BT50-M10-90 90 12 17.8 10.5 M10 7°
BT50-M10S-110 110 12 15.4 10.5 M10 7°
BT50-M10-110 110 12 17.8 10.5 M10 7°
BT50-M10S-135 135 12 15.4 10.5 M10 7°
BT50-M10-135 135 12 17.8 10.5 M10 7°
BT50-M12-60 60 12 20.8 12.5 M12 6°
BT50-M12H-60 60 12 23 12.5 M12 6°
BT50-M12-90 90 12 20.8 12.5 M12 6°
BT50-M12H-90 90 12 23 12.5 M12 6°
BT50-M12-110 110 12 20.8 12.5 M12 6°
BT50-M12H-110 110 12 23 12.5 M12 6°
BT50-M12-135 135 12 20.8 12.5 M12 6°
BT50-M12H-135 135 12 23 12.5 M12 6°
BT50-M16-60 60 12 28.8 17 M16 6°
BT50-M16H-60 60 12 38 17 M16 6°
BT50-M16-90 90 12 28.8 17 M16 6°
BT50-M16H-90 90 12 38 17 M16 3°
BT50-M16-110 110 12 28.8 17 M16 6°
BT50-M16-135 135 12 28.8 17 M16 6°


Ⅳ. Products Overview


  1. BT40 Threading Tool Holder.
  2. Hydro Expansion Tool holder of BT/SK/HSK.
  3. Heat Shrink-Fit/Shrinking/Heat Expansion Tool Holders.
  4. Threaded/Screw-on/Thread Screw Tool Holders.
  5. Back Lock/Side Lock and Mirror Finishing​ Toolholders.
  6. Morse Tap AdapterTools Holder.
  7. Torque Tap/Tapping Chuck.
  8. ER/GER/SK/GER/Hydraulic/Back lock/Torque tapping/Collet.
  9. Torque/Round/Circle Spanner Wrenche/Keys.
  10. Edge finder/Tool Holder Tightening Fixture/Table.
  11. CNC Indexable Cutting Tools.
  12. Rapid Changing CNC Tool Bits.



Ⅴ​. Shipment​


By Sea; By Air; By Train/Truck.

TNT, EMS, DHL, UPS, FedEx.

Ⅵ. Packing


PE Bag.
Plastic Box.
Carton Box.
Other Materials


Slushing oil.
Adhesive Tape.
Packing Straps.

Ⅶ. Warehouse


  1. Arrange Delivery  Within 2 days at soonest Afterat order and payment confirmed.
  2. Strict and Careful Inspection Before Delivering Goods to Our customers .
  3. Use Gauges For Examing Accuracy and Technical Factors.
  4. Super less error on delivering Goods and Items of Order.

Ⅷ. Warranty


  • We use imported famous professional instruments to do quality control.
  • Our workers are experienced and well trained.
  • Custom Made Service,  Professional suggestions.
  • Customer can find any products relating CNC Cutting here.
  • Warranty 12 Months, Free Repairing Service.
  • Best Service, Considerate and Sincere.

Tag:

CNC Cutting Tool Holder,

cnc mill tool holders,

cnc machine tool holders
