Product Details:
Payment & Shipping Terms:
|
| Material: | PCD | Cutter: | PCD |
|---|---|---|---|
| Application: | Better In Rotary Machining | Feature: | Higher Surface Quality And Accuracy |
| Highlight: | cnc lathe cutting tools,cnc milling cutters |
||

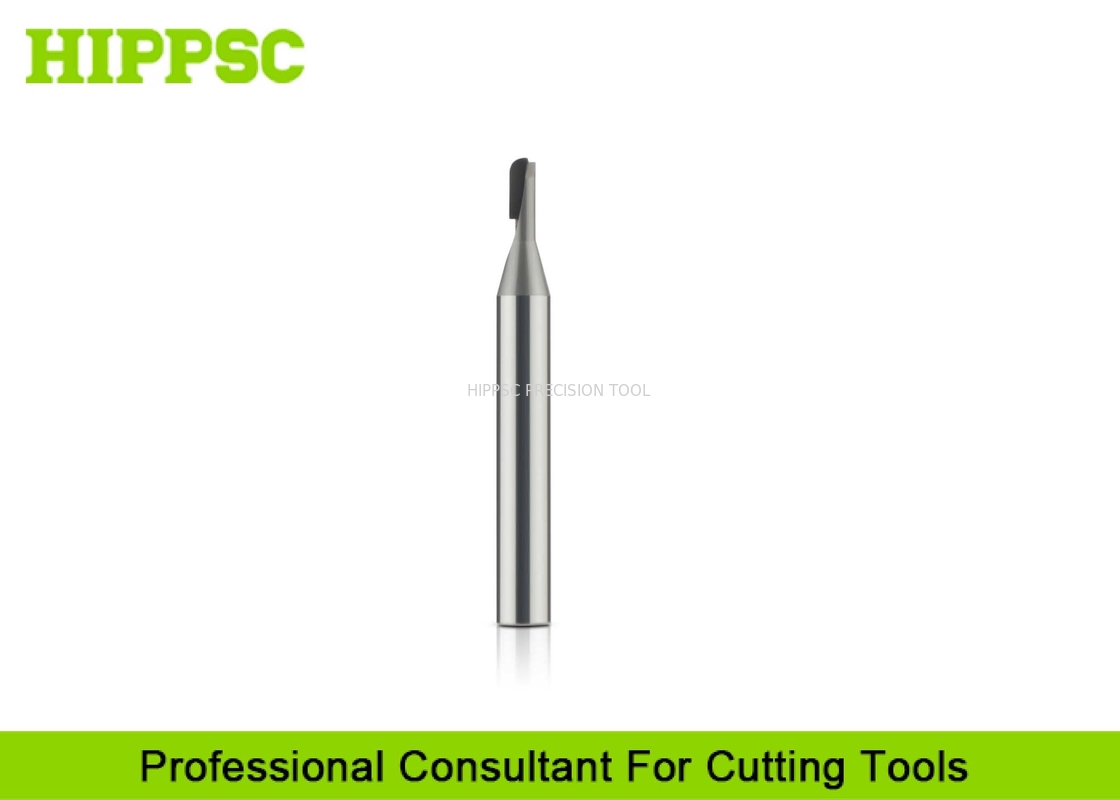

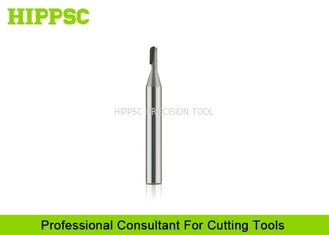

PCD Spherical Single Edge Milling Cutter/ Lower wearing in rotary machining
Ⅰ. Features And Advantages
Ⅱ. Technical Parametes
Ⅲ. Product Introduction
| D | d | L | L1 | H | Z | R | INVENTORY | |
| PSR-1030-06-50 | 6 | 3 | 50 | 5-8 | 3 | 1 | 1.5 | ● |
| PSR-1035-06-50 | 6 | 3.5 | 50 | 5-8 | 3 | 1 | 1.75 | ● |
| PSR-1040-06-50 | 6 | 4 | 50 | 8-10 | 4 | 1 | 2 | ● |
| PSR-1050-06-50 | 6 | 5 | 50 | 8-10 | 5 | 1 | 2.5 | ● |
| PSR-1060-06-50 | 6 | 6 | 50 | 10-15 | 6 | 1 | 3 | ● |
| PSR-1070-06-50 | 6 | 7 | 50 | 10-15 | 6 | 1 | 3.5 | ● |
| PSR-1080-08-60 | 8 | 8 | 60 | 15-20 | 7 | 1 | 4 | ● |
| PSR-1085-08-60 | 8 | 8.5 | 60 | 15-20 | 8 | 1 | 4.25 | ● |
| PSR-1090-08-70 | 8 | 9 | 70 | 15-20 | 8 | 1 | 4.5 | ● |
| PSR-1100-10-70 | 10 | 10 | 70 | 15-20 | 8 | 1 | 5 | ● |
| PSR-1110-10-70 | 10 | 11 | 70 | 15-20 | 9 | 1 | 5.5 | ● |
| PSR-1100-12-70 | 12 | 10 | 70 | 18-25 | 9 | 1 | 5 | ● |
| PSR-1120-12-70 | 12 | 12 | 70 | 18-25 | 10 | 1 | 6 | ● |
| PSR-1140-14-70 | 14 | 14 | 70 | 18-25 | 10 | 1 | 7 | ● |
| PSR-1150-16-70 | 16 | 15 | 70 | 18-25 | 11 | 1 | 7.5 | ● |
| PSR-1160-16-70 | 16 | 16 | 70 | 18-25 | 12 | 1 | 8 | ● |
| Remark:● in stock,△ Short delivery time,○ Long delivery time |
Ⅳ. Overview for HIPPSC Products
High Speed ER/SK/GER/GSK Tool Holder/Shank/Arbor for CNC Working.
Shrink-Fit/Shrinking Tool Holders/Shanks/Arbors.
Threaded/Screw-on/Thread Screw Tool Holders/Arbors/Shank.
Pull Type/Side Lock Tool Holders/Arbors/Shanks.
Tool Holders/Arbors/Shanks for Mirror Finishing.
Morse Taper/Tapering Tool Holders/Shanks.
Face Milling Adapters/Tool Holders/Arbors/Shanks.
Drilling/Driller Chuck Holders/Tool Holders/Shanks/Arbor.
Torque Floating Tap/Tapping Chuck and Collet.
ER/SK/Hydraulic/Back lock/Floating tapping Collet
Torque/ Round/Circle Spanners/Wrenches/Keys.
ER/SK/Back lock/Shrink fit Extension Rod/ Tool bit.
Nuts/Pull stud/Bolt Blind rivet/Spindle taper wiper/Test bar/Tester.
Edge finder/Tool Holder Tightening Fixture/Table.
Inserts/PCD/Milling/Boring/PCBN Inserts/Blade/Cutters/Tool bit.
Quick Change Ball nose/Triangle/Pentagon/Horseshoe Tool bit.
Cutterhead/ Cutter heard/bar, face milling cutter.
BT/BBT/SK/CAT/HSK/ISO/NT Spinder Type Tool Holder/Shank/Arbor.
Indexable Tools.
